RS PRO 1 x 10 W, 1 x 10 → 16 W, 1 x 16 W, 1 x 4 → 14 W, 1 x 5 → 11 W Electronic Compact

Subtotal (1 unit)*

£11.98

(exc. VAT)

£14.38

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 31 unit(s) shipping from 06 October 2025
  • Plus 36 unit(s) shipping from 06 October 2025
  • Plus 198 unit(s) shipping from 13 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£11.98

*price indicative

RS Stock No.:
721-0841
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Wattage

1 x 10 W, 1 x 10 → 16 W, 1 x 16 W, 1 x 4 → 14 W, 1 x 5 → 11 W

Ballast Type

Electronic

Supported Lamp Shape

T5, T8, TC-D/E, TC-DD, TC-S/E

Supported Lamp Type

Compact Fluorescent, Fluorescent

Voltage Rating

220 → 240 V

Dimmable

No

High Frequency

Yes

Length

80 mm

Width

41 mm

Height

18mm

Minimum Operating Temperature

-15°C

Maximum Operating Temperature

+55°C

COO (Country of Origin):
IT

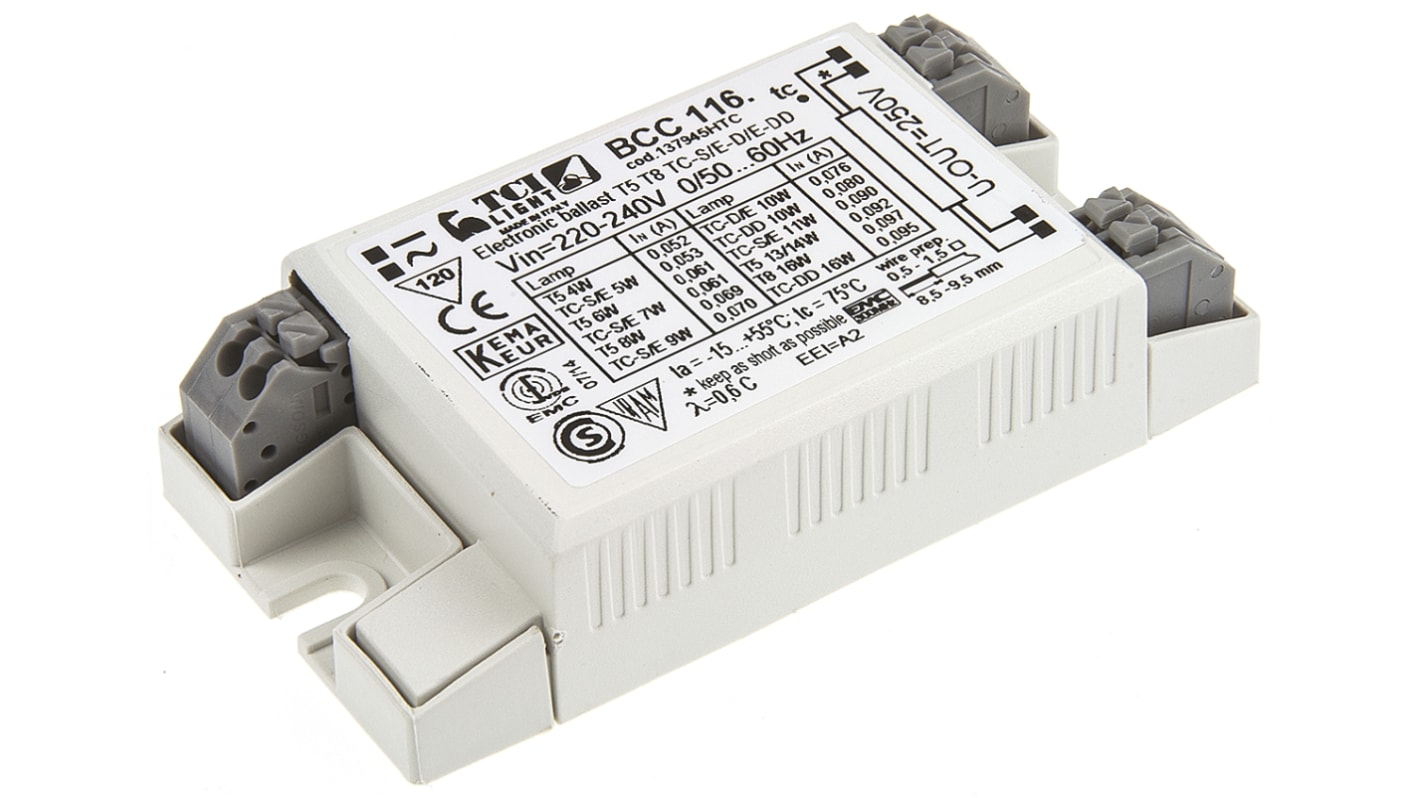

RS PRO 1 x 10 W, 1 x 10 to 16 W, 1 x 16 W, 1 x 4 to 14 W, 1 x 5 to 11 W Electronic Compact


Regulate the current flow to your fluorescent lamps and prevent overheating using this ballast from RS PRO. It can be integrated with any lighting equipment in earthing protection Class I and II. It protects the circuitry in case of disconnection of the lamp, lamp failure or end of life.
The unit works by first preheating the coils before an arc is established. This ensures that there's no flicker and also improves the life of your lamps. As it's an electronic ballast, you won't hear any buzzing noise.
You can mount the ballast by screwing it down to your panel through the slots provided. Plus, push-in cable connections make it easy to wire. This ballast is suitable for use with emergency lighting equipment in compliance with EN (European Norms) 60598-2-22. The component is strictly tested for quality and durability.

Features and Benefits


• Not dimmable
• A2 European Union (EU) energy efficiency rating
• Dimensions of 18 (height) x 80 (length) x 41 mm (width)
• High frequency
• Operating temperature range of -15°C to +55°C
• One lamp
• T5, T8, TC-D/E, TC-DD, TC-S/E supported lamp shape
• Supports compact fluorescent and fluorescent lamp type
• Voltage rating of 220 to 240 V
• Wattage of 1 x 10 W, 1 x 10 to 16 W, 1 x 16 W, 1 x 4 to 14 W, 1 x 5 to 11 W
