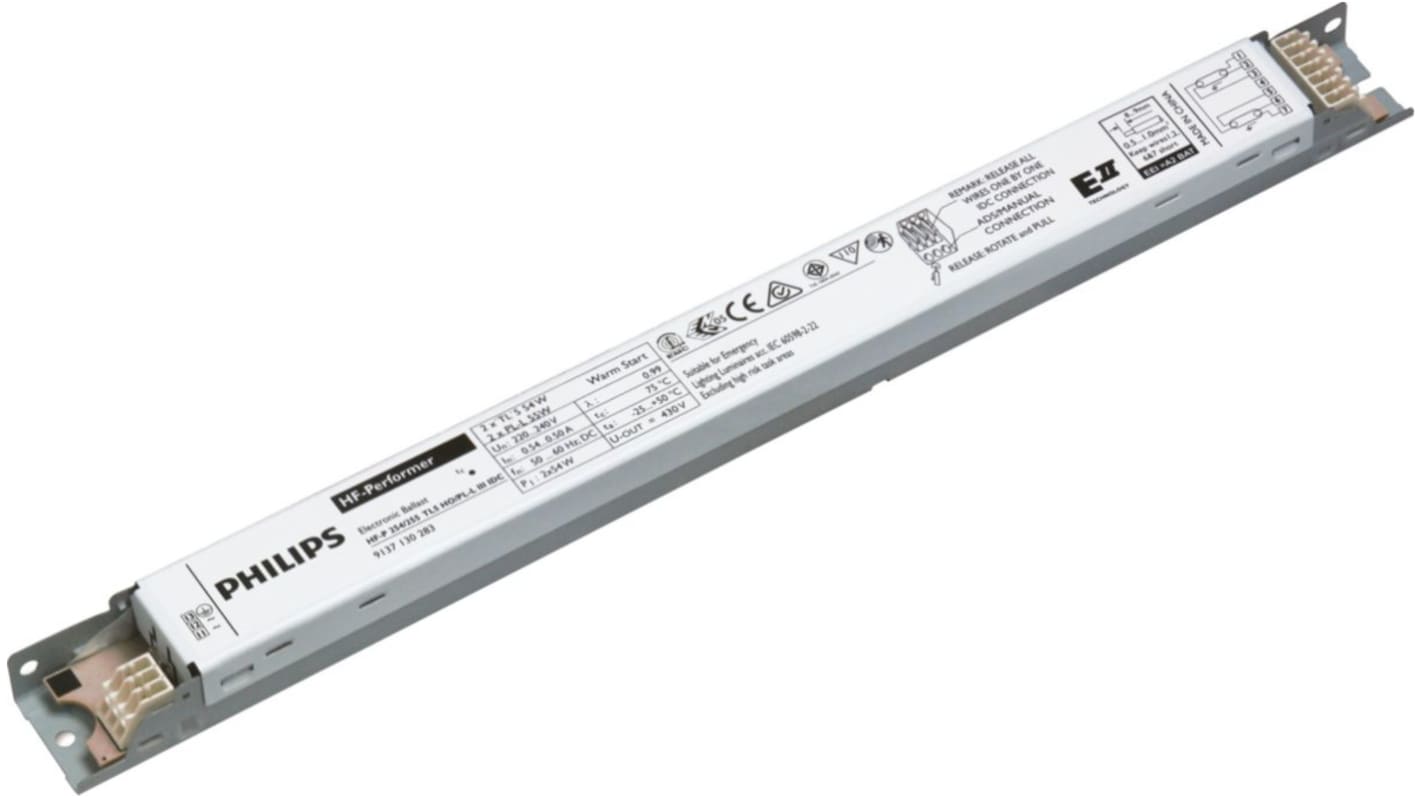

Philips Lighting 80 W Electronic Batten Lighting Ballast, 240 V
- RS Stock No.:
- 270-5273
- Mfr. Part No.:
- 913713034266
- Brand:
- Philips Lighting
Subtotal (1 pack of 12 units)*
£335.316
(exc. VAT)
£402.384
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 24 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 12 + | £27.943 | £335.32 |
*price indicative
- RS Stock No.:
- 270-5273
- Mfr. Part No.:
- 913713034266
- Brand:
- Philips Lighting
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Philips Lighting | |
| Product Type | Lighting Ballast | |
| Number of Lamps | 1 | |
| Ballast Type | Electronic | |
| Compatible Lamp Type | Batten | |
| Voltage | 240 V | |
| High Frequency | Yes | |
| Length | 360mm | |
| Lighting Power | 80 W | |
| Compatible Lamp Designation | TL5 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 60°C | |
| Width | 30 mm | |
| Height | 21mm | |
| Standards/Approvals | IEC 61000-3-2, IEC 60598-2-22, ISO 14001, CE, ISO 9000:2000, IEC68-2-6 F c, IEC 61347-2-3, EN 61347-2-3 clause 11, IEC 68-2-29 Eb, VDE-EMV Certificate, IEC 61547, IEC 60929, ENEC Certificate | |
| Series | HF-P 180 TL5 III | |
| Select all | ||
|---|---|---|
Brand Philips Lighting | ||
Product Type Lighting Ballast | ||
Number of Lamps 1 | ||
Ballast Type Electronic | ||
Compatible Lamp Type Batten | ||
Voltage 240 V | ||
High Frequency Yes | ||
Length 360mm | ||
Lighting Power 80 W | ||
Compatible Lamp Designation TL5 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 60°C | ||
Width 30 mm | ||
Height 21mm | ||
Standards/Approvals IEC 61000-3-2, IEC 60598-2-22, ISO 14001, CE, ISO 9000:2000, IEC68-2-6 F c, IEC 61347-2-3, EN 61347-2-3 clause 11, IEC 68-2-29 Eb, VDE-EMV Certificate, IEC 61547, IEC 60929, ENEC Certificate | ||
Series HF-P 180 TL5 III | ||
RoHS Status: Exempt
- COO (Country of Origin):
- PL
The Philips Lighting HF-Performer III TL5 ballasts offer a maximum versatility and meet all of the necessary commercial grade specifications with added benefits of lamp striation reduction technology, making these ballasts compatible with energy-saving TL5 ECO lamps. These ballasts are part of an overall high-efficiency lighting system that may help you or your customers to achieve any international or local energy code you need to comply with.
Maximum reliability
Energy efficient
