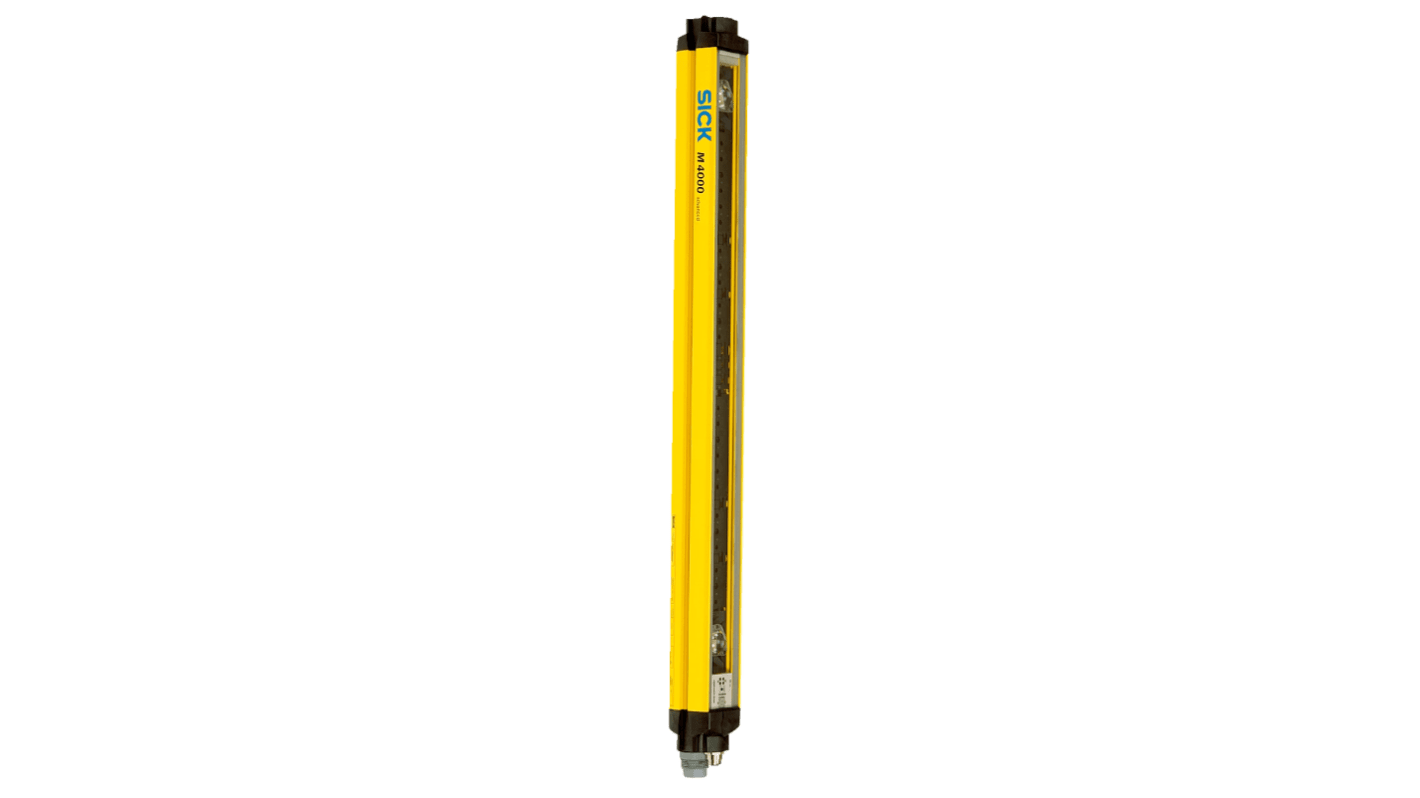

SICK M40Z Series Light Curtain, 2 Beam(s)
- RS Stock No.:
- 285-8855
- Mfr. Part No.:
- M40Z-025023RB0
- Brand:
- SICK
Subtotal (1 unit)*
£1,102.09
(exc. VAT)
£1,322.51
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,102.09 |
*price indicative
- RS Stock No.:
- 285-8855
- Mfr. Part No.:
- M40Z-025023RB0
- Brand:
- SICK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SICK | |
| Series | M40Z | |
| Safety Type | Type 4 | |
| SIL IEC 61508 | SIL 3 | |
| PL EN ISO 13849-1 | PL e | |
| Number of Beams | 2 | |
| Minimum Scanning Distance | 0.5m | |
| Maximum Scanning Distance | 7.5m | |
| Maximum Response Time | 10 ms | |
| Length | 1.072m | |
| Supply Voltage | 24 V dc | |
| Terminal Type | M26 Connector | |
| Dimensions | 1072 x 52 mm | |
| Width | 52mm | |
Select all | ||
|---|---|---|
Brand SICK | ||
Series M40Z | ||
Safety Type Type 4 | ||
SIL IEC 61508 SIL 3 | ||
PL EN ISO 13849-1 PL e | ||
Number of Beams 2 | ||
Minimum Scanning Distance 0.5m | ||
Maximum Scanning Distance 7.5m | ||
Maximum Response Time 10 ms | ||
Length 1.072m | ||
Supply Voltage 24 V dc | ||
Terminal Type M26 Connector | ||
Dimensions 1072 x 52 mm | ||
Width 52mm | ||
- COO (Country of Origin):
- DE
Overview
The M4000 Standard A/P multiple light beam safety device is the economical solution for access protection. It is particularly economical since only the active side must be wired, which reduces the installation time. The M4000’s large scanning range and ex
The modular concept enables a high level of machine safety since device properties can be adapted to meet specific application requirements. In addition, sens:Control devices, accessories, and services complete the product offering and form packaged solut
At a glance
Type 4 (IEC 61496), SIL3 (IEC 61508), PL e (EN ISO 13849)
Sender/receiver in a single housing, scanning range up to 7.5 m
External device monitoring (EDM), restart interlock and application diagnostic output
Standardized M12 connectivity
7-segment display
Sender/receiver in a single housing, scanning range up to 7.5 m
External device monitoring (EDM), restart interlock and application diagnostic output
Standardized M12 connectivity
7-segment display
Your Benefit
Economical active/passive variants minimize the wiring and installation workload.
Resilient and rugged design for high system throughput, even under special ambient conditions
Mounting grooves on three housing sides ensure greater mounting flexibility and
Resilient and rugged design for high system throughput, even under special ambient conditions
Mounting grooves on three housing sides ensure greater mounting flexibility and
Applications
Note
Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
