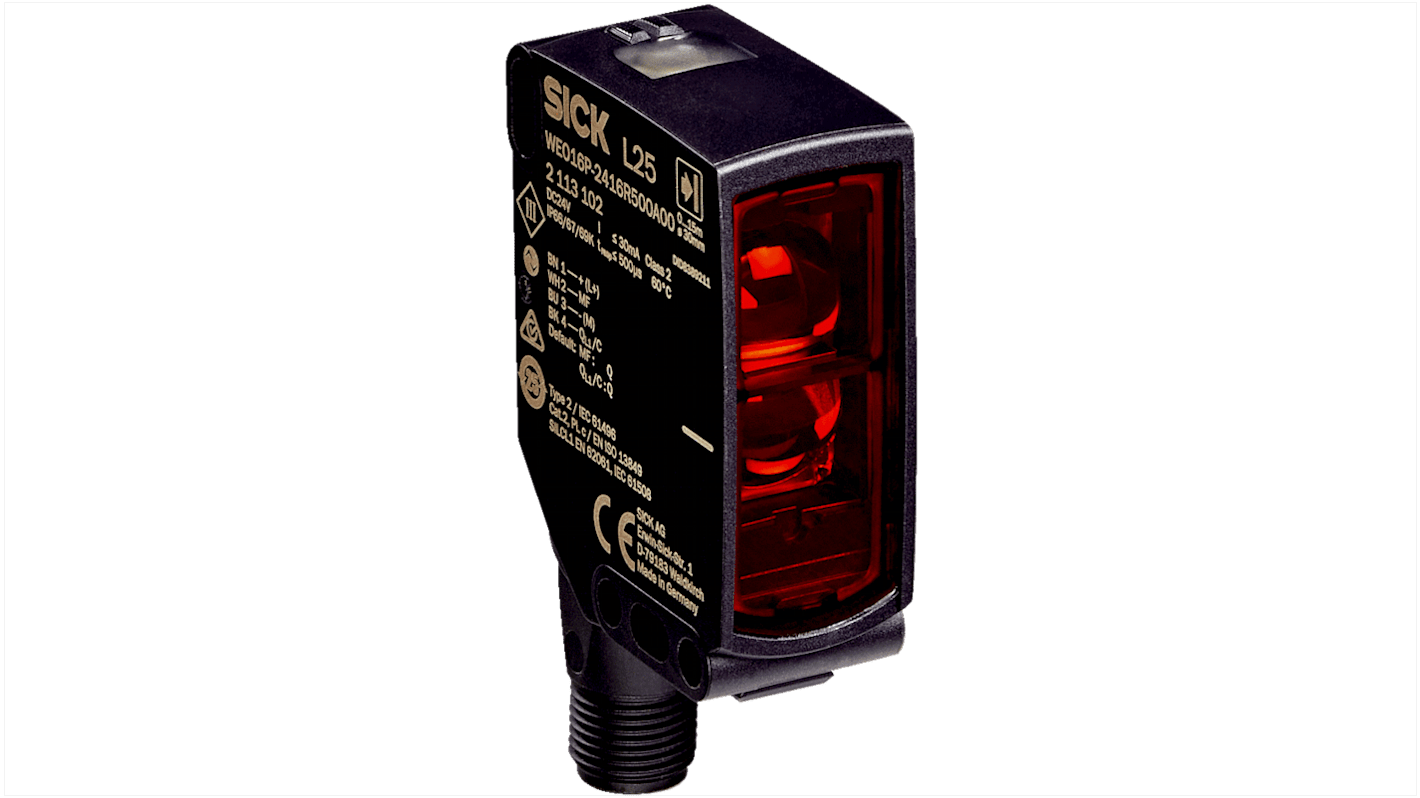

SICK WSO16I Series Light Curtain Receiver, 1 Beam(s)
- RS Stock No.:
- 285-2366
- Mfr. Part No.:
- WEO16I-2416R500A00ZLLZZZZZZZZ1
- Brand:
- SICK
Subtotal (1 unit)*
£193.93
(exc. VAT)
£232.72
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £193.93 |
*price indicative
- RS Stock No.:
- 285-2366
- Mfr. Part No.:
- WEO16I-2416R500A00ZLLZZZZZZZZ1
- Brand:
- SICK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SICK | |
Series | WSO16I | |
Component Type | Receiver | |
Safety Type | 2 | |
SIL IEC 61508 | SIL 1 | |
PL EN ISO 13849-1 | c | |
Number of Beams | 1 | |
Maximum Scanning Distance | 20m | |
Maximum Response Time | 0.5 ms | |
Height | 42mm | |
Supply Voltage | 24 V dc | |
Length | 55.4mm | |
Width | 20mm | |
Dimensions | 20 x 42 x 55.4 mm | |
Terminal Type | M12 Connector | |
Select all | ||
---|---|---|
Brand SICK | ||
Series WSO16I | ||
Component Type Receiver | ||
Safety Type 2 | ||
SIL IEC 61508 SIL 1 | ||
PL EN ISO 13849-1 c | ||
Number of Beams 1 | ||
Maximum Scanning Distance 20m | ||
Maximum Response Time 0.5 ms | ||
Height 42mm | ||
Supply Voltage 24 V dc | ||
Length 55.4mm | ||
Width 20mm | ||
Dimensions 20 x 42 x 55.4 mm | ||
Terminal Type M12 Connector | ||
- COO (Country of Origin):
- DE
Overview
The L25 and L26 product families from SICK represent a new generation of single-beam photoelectric safety switch for type 2 applications, which, in combination with an external test device, facilitate operations and make processes safer and more efficient. Thanks to the innovative BluePilot operating concept with feedback LED, the alignment of sender and receiver is easier than ever.
Smart Sensor diagnostic functions provide insight into the status of each individual sensor at all times, thus creating the basis for efficient communication. Thanks to the ultra rugged VISTAL® housing and predictive maintenance, the L25 and L26 are extremely reliable and prevent unscheduled machine downtime.
At a glance
BluePilot: optical alignment aid
Smart Sensor: efficient communication with IO-Link
Ultra rugged VISTAL® housing
Enclosure rating: IP66, IP67 and IP69K
Typical scanning range of up to 20 m
Type of light: IR light and visible red light
Standardized connection and mounting systems
Type 2, PL c, SIL1
Smart Sensor: efficient communication with IO-Link
Ultra rugged VISTAL® housing
Enclosure rating: IP66, IP67 and IP69K
Typical scanning range of up to 20 m
Type of light: IR light and visible red light
Standardized connection and mounting systems
Type 2, PL c, SIL1
Your Benefit
Quick and precise alignment of the sender and the receiver thanks to the PinPoint LED in combination with BluePilot
Increased productivity: Smart Sensor diagnostic functions always available via IO-Link
Cost efficiency: IP66, IP67 and IP69K guarantee a long service life. The ultra rugged VISTAL® housing withstands extreme environmental influences with ease
Flexibility: The large scanning range of up to 20 m enables more application possibilities
High availability: IR light and red light variants prevent interference and a superimposition of sensor signals
Easy order processing thanks to the standardized connection and mounting systems
Increased productivity: Smart Sensor diagnostic functions always available via IO-Link
Cost efficiency: IP66, IP67 and IP69K guarantee a long service life. The ultra rugged VISTAL® housing withstands extreme environmental influences with ease
Flexibility: The large scanning range of up to 20 m enables more application possibilities
High availability: IR light and red light variants prevent interference and a superimposition of sensor signals
Easy order processing thanks to the standardized connection and mounting systems
Applications
Fields of applications
Machine tools: access protection and area safeguarding
Consumer goods: access protection for cutting machines
Storage and conveyor (intralogistics): access protection for mobile storage systems (high-bay warehouse)
Machine tools: access protection and area safeguarding
Consumer goods: access protection for cutting machines
Storage and conveyor (intralogistics): access protection for mobile storage systems (high-bay warehouse)
