MPN

SICK C4MT Series Light Curtain, 14 mm Resolution

RS Stock No.:: 285-0995
Mfr. Part No.:: C4MT-01814ABB03BB0
Brand:: SICK

Subtotal (1 unit)*

£691.75

(exc. VAT)

£830.10

(inc. VAT)

Stock information currently inaccessible - Please check back later

Units	Per unit
1 +	£691.75

*price indicative

RS Stock No.:: 285-0995
Mfr. Part No.:: C4MT-01814ABB03BB0
Brand:: SICK

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SICK
	Product Type	Light Curtain
	Series	C4MT
	Beam Resolution	14mm
	Safety Type	Type 4
	Standards/Approvals	ACMA, CE, cUL, EC-Type-Examination, GB, GB/T, IEC, Moroccan, OSHA, RoHS, UKCA, cULus
	Protective Height	180mm
	Maximum Supply Voltage	24V
	Minimum Scanning Distance	4m
	Maximum Scanning Distance	5m
	Length	32mm
	Width	15mm
	Height	180mm
	Maximum Response Time	14ms
	Terminal Type	M12 Male Connector

	Select all
	Brand SICK
	Product Type Light Curtain
	Series C4MT
	Beam Resolution 14mm
	Safety Type Type 4
	Standards/Approvals ACMA, CE, cUL, EC-Type-Examination, GB, GB/T, IEC, Moroccan, OSHA, RoHS, UKCA, cULus
	Protective Height 180mm
	Maximum Supply Voltage 24V
	Minimum Scanning Distance 4m
	Maximum Scanning Distance 5m
	Length 32mm
	Width 15mm
	Height 180mm
	Maximum Response Time 14ms
	Terminal Type M12 Male Connector

COO (Country of Origin):: HU

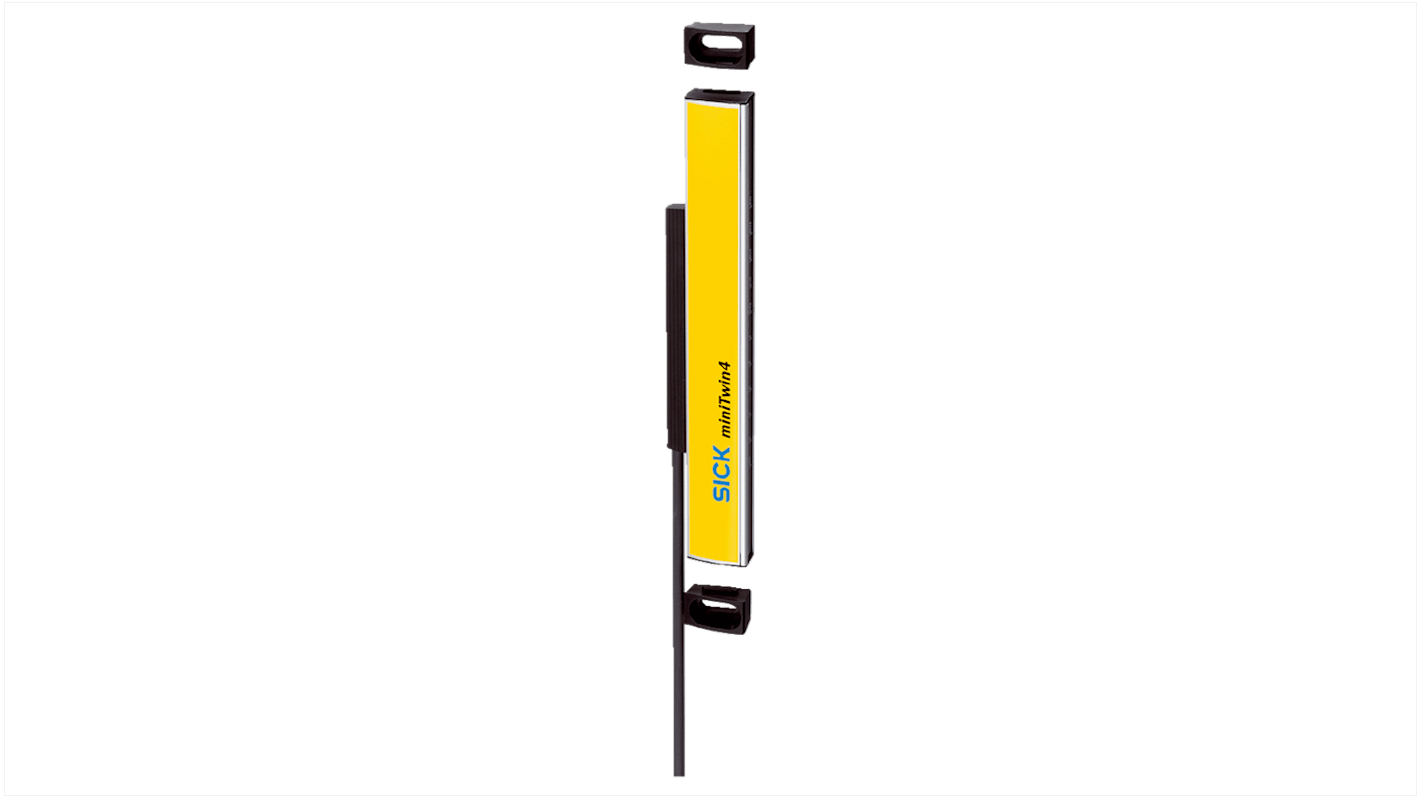

SICK C4MT Series Light Curtain, 180mm Protective Height, 14mm Beam Resolution - C4MT-01814ABB03BB0

This Compact safety light curtain is designed to protect short-range machine access zones by creating a guarded field at 180mm height. It operates as a standalone miniTwin device with optical synchronisation and is intended for industrial settings where Rapid detection and straightforward hard-wired configuration are required. The unit connects via an M12 plug and operates from a 24V DC supply within typical automation power systems.

Features and Benefits:

• 14ms maximum response time provides Rapid hazard detection
• 14mm beam resolution enables fine object recognition
• Optical synchronisation avoids separate sync wiring
• PNP OSSD outputs deliver cross-circuit monitored switching
• IP65 enclosure allows use in damp environments

Applications

• Used for machine guarding on short access openings
• Suitable for integration with safety relays and controls
• Ideal for protecting automated assembly stations
• Can be used for risk reduction in material handling
• Used with restart interlock and external device monitoring

What supply voltage range does it accept?

It operates from 24V DC within a permitted range of 19.2V DC to 28.8V DC.

How are outputs configured for safety circuits?

Outputs are PNP semiconductors that are short-circuit protected and cross-circuit monitored with ≤300mA per OSSD.

What environmental limits apply to its operation?

It is rated IP65, operates between -20°C and +55°C, and tolerates 15%-95% non‑condensing humidity.

How is synchronisation achieved between units?

Synchronisation is optical and does not require separate sync cabling.

What mechanical form factor does it use for mounting?

The housing is an aluminium alloy profile supplied with O-fix brackets and twin sticks for installation.
