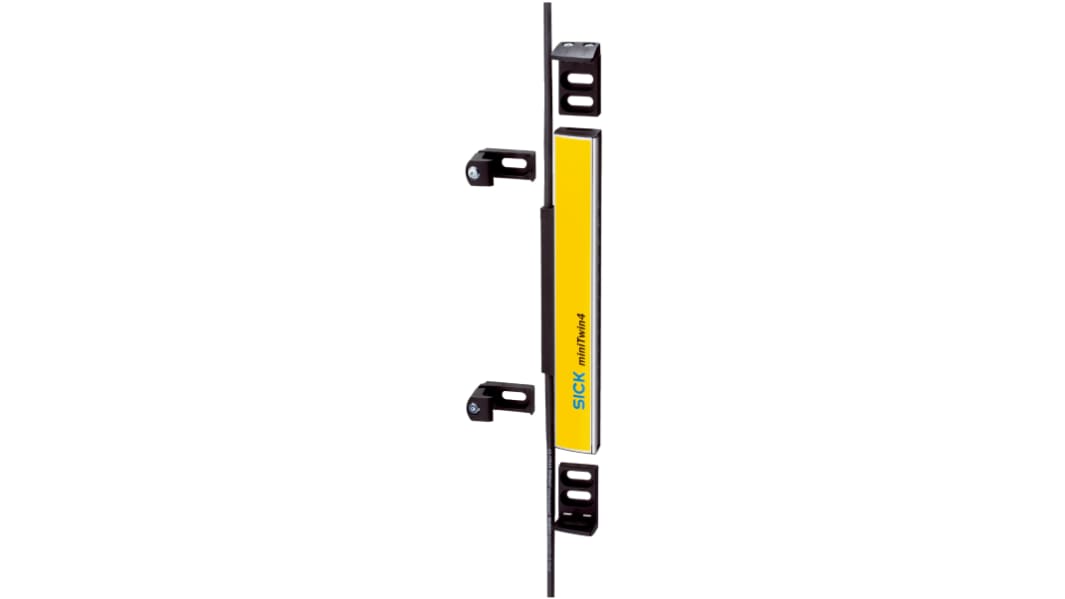

SICK C4MT Series miniTwin Light Curtain Safety Light Curtains, 14mm Resolution
- RS Stock No.:
- 284-9203
- Mfr. Part No.:
- C4MT-02414ABB04DE0
- Brand:
- SICK
Subtotal (1 unit)*
£765.31
(exc. VAT)
£918.37
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 1 unit(s) shipping from 27 October 2025
- Plus 2 unit(s) shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £765.31 |
*price indicative
- RS Stock No.:
- 284-9203
- Mfr. Part No.:
- C4MT-02414ABB04DE0
- Brand:
- SICK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SICK | |
| Range | miniTwin | |
| Series | C4MT | |
| Beam Resolution | 14mm | |
| Component Type | Safety Light Curtains | |
| Safety Type | Type 4 | |
| SIL IEC 61508 | SIL 3 | |
| PL EN ISO 13849-1 | PL e | |
| Protective Height | 240mm | |
| Minimum Scanning Distance | 0m | |
| Maximum Scanning Distance | 5m | |
| Maximum Response Time | 14 ms | |
| Height | 240mm | |
| Supply Voltage | 24 V dc | |
| Application | Automotive, Consumer Goods, Electronics, Machines and Motion | |
| Terminal Type | Male Connector M12 | |
Select all | ||
|---|---|---|
Brand SICK | ||
Range miniTwin | ||
Series C4MT | ||
Beam Resolution 14mm | ||
Component Type Safety Light Curtains | ||
Safety Type Type 4 | ||
SIL IEC 61508 SIL 3 | ||
PL EN ISO 13849-1 PL e | ||
Protective Height 240mm | ||
Minimum Scanning Distance 0m | ||
Maximum Scanning Distance 5m | ||
Maximum Response Time 14 ms | ||
Height 240mm | ||
Supply Voltage 24 V dc | ||
Application Automotive, Consumer Goods, Electronics, Machines and Motion | ||
Terminal Type Male Connector M12 | ||
- COO (Country of Origin):
- HU
Overview
The miniTwin safety light curtains (System part: 1 Twin-Stick) offer versatile configurations for cascade setups, serving as hosts or middle guests in 2- or 3-device cascades. Mounted with C-fix or L-fix brackets, they ensure Type 4, PL e, SIL3 compliance. With 14 mm resolution, 5 m scanning range, and 240 mm protective field height, they provide precise detection. Male connector M12, 5-pin, and Female connector M12, 5-pin enable easy connectivity. Supplied components include Twin stick, system plug, C-Fix bracket, L-Fix bracket (2 each), along with a test rod and comprehensive instructions. The safety light curtain in miniature format, in hazardous point protection for finger and hand protection. Its two twin sticks, in which the sender and receiver are installed symmetrically in a compact housing for the first time, have received several awards.
One of the Twin-Sticks is mounted opposite the other one and rotated by 180 degrees. This creates a safe protective field. The miniature design of the miniTwin, the option of cascading it and its different protective field heights save production space and enable small safety distances. At the same time, this mini device achieves great things: it functions perfectly, even when subjected to very strong shocks and vibrations and temperatures down to –20° Celsius.
At a glance
Twin sticks: sender and receiver in a compact housing
Different protective field heights, graduated to 60 mm each
Diagnostics through protective field visualization
Commissioning and alignment by means of color LEDs, configuration without software
Cascading possible
Application-specific brackets
Different protective field heights, graduated to 60 mm each
Diagnostics through protective field visualization
Commissioning and alignment by means of color LEDs, configuration without software
Cascading possible
Application-specific brackets
Your Benefit
Benefit from optimum integration into your machine thanks to the miniature design
Minimize your ordering, logistics, handling and maintenance work due to the small number of components, which are all standardized.
Increase the productivity of your staff with optimal work ergonomics. With the miniTwin, work can be performed unhindered at machines, accelerating production processes.
Take advantage of the benefits of quick diagnostics
Save time and resources thanks to easy commissioning and configuration
Eliminate blind zones
Reduce mounting times
Minimize your ordering, logistics, handling and maintenance work due to the small number of components, which are all standardized.
Increase the productivity of your staff with optimal work ergonomics. With the miniTwin, work can be performed unhindered at machines, accelerating production processes.
Take advantage of the benefits of quick diagnostics
Save time and resources thanks to easy commissioning and configuration
Eliminate blind zones
Reduce mounting times
Applications
Fields of applications
Packaging industry
Food and beverage industry
Health care manufacturing
Storage and conveyor
Electronics industry
Automotive and parts suppliers
Packaging industry
Food and beverage industry
Health care manufacturing
Storage and conveyor
Electronics industry
Automotive and parts suppliers
Note
Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
