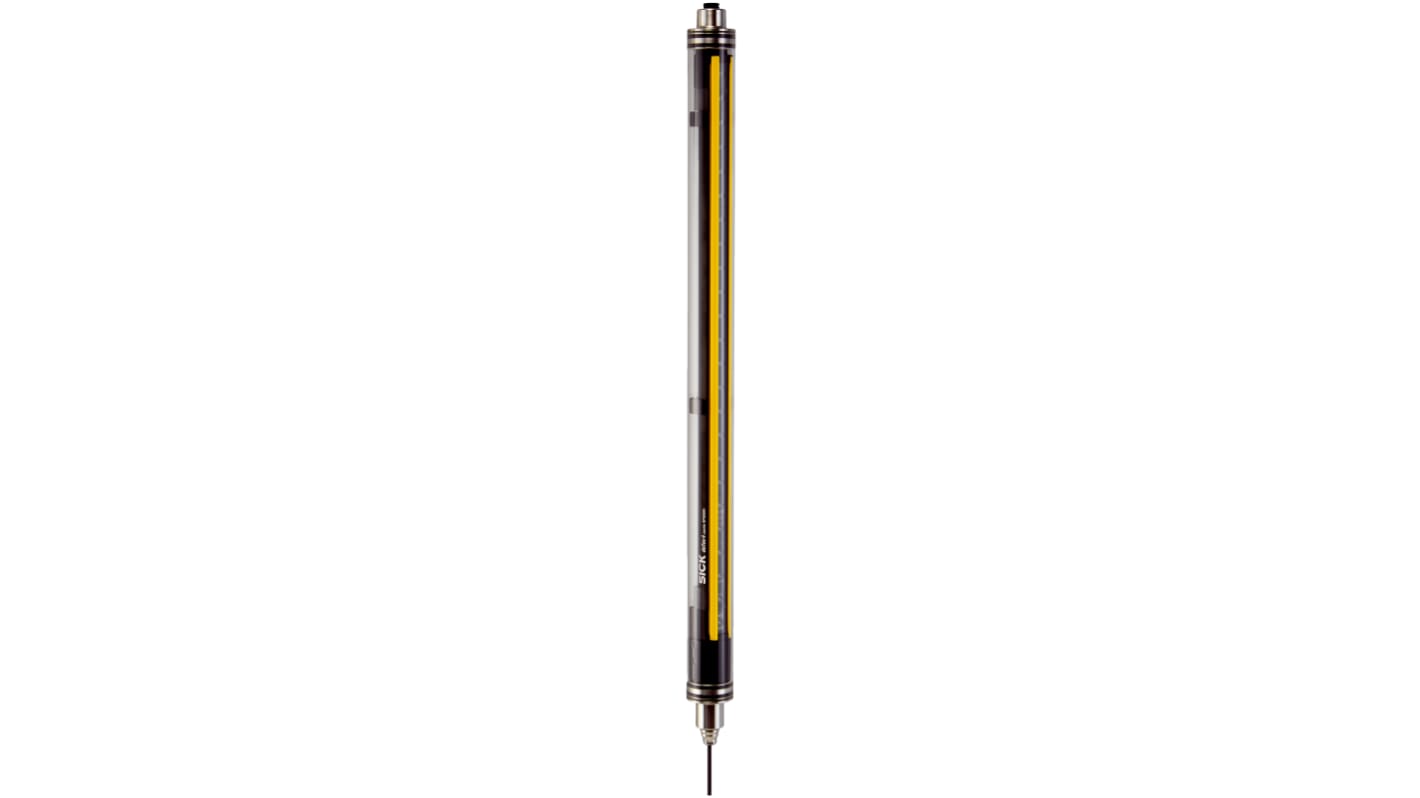

SICK C4C Series deTec Light Curtain Receiver, 30mm Resolution

View all Light Curtains

Subtotal (1 unit)*

£1,510.76

(exc. VAT)

£1,812.91

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£1,510.76

*price indicative

RS Stock No.:
284-9200
Mfr. Part No.:
C4C-EB09030A10000
Brand:
SICK
Find similar products by selecting one or more attributes.
Select all

Brand

SICK

Range

deTec

Series

C4C

Beam Resolution

30mm

Component Type

Receiver

Safety Type

Type 4

SIL IEC 61508

SIL 3

PL EN ISO 13849-1

PL e

Protective Height

900mm

Maximum Scanning Distance

12.5m

Maximum Response Time

11 ms

Supply Voltage

24 V dc

Height

1.069m

Terminal Type

Flying Lead

Application

Areas With Special Hygiene Requirements

COO (Country of Origin):
DE

Overview


The deTec safety light curtains model is from the deTec4 Core IP69K variant. It serves as a receiver designed for areas with special hygiene requirements, featuring a safety level of Type 4, PL e, and SIL3. With a resolution of 30 mm and a scanning range of 12.5 meters, it offers a protective field height of 900 mm. The connection type is via a connecting cable, 15 meters in length, with flying leads and 5 wires. It boasts an enclosure rating of IP65, IP66, IP67, and IP69K, and includes the receiver in an IP69K protective housing with a 15-meter connecting cable, a test rod matching the resolution of the safety light curtain, safety instructions, mounting instructions, and operating instructions for download.

The intelligent deTec safety light curtains are ideal for the protection of hazardous areas, entrances, and hazardous points. Modern technologies such as NFC and IO-Link with their diverse functionality increase the level of automation and thereby productivity. The result: Simple on-site diagnostics, fast commissioning, and comprehensive data for automating downstream processes. Furthermore, the flexible connection concept in combination with the uniform housing design ensures low cabling, installation and configuration costs. The required functions are activated without software via the matching system plug. Thanks to different enclosure ratings as well as variants for explosion-hazardous areas, deTec also provides solutions for applications in harsh environments.

At a glance


NFC diagnosis and smartphone app
Diagnostics and automation via IO-Link
Object pattern recognition using Smart Box Detection
2-signal muting
Smart presence detection
Configuration of all functions without software
Reduced resolution: 1 or 2 beams
Different enclosure ratings as well as variants for use in explosion-hazardous areas

Your Benefit


Benefit from a productivity boost and short downtimes thanks to the innovative diagnostic options
Increase the level of automation and process transparency of your systems with IO-Link
The reliable object pattern recognition without external signals or devices ensures a cost effective and compact machine design
Muting offers productivity and safety in human-material differentiation
High availability: smart presence detection prevents unwanted switch-offs
Easy commissioning and configuration without the need for software saves you time and money

Applications


Fields of applications
Automotive and parts suppliers
Machine tools industry
Storage and conveyor technology
Consumer goods industry
Packaging industry
Plastics and rubber industry
Food and beverage industry
Paint booths
Chemical applications
Dusty enviro

Note


Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
