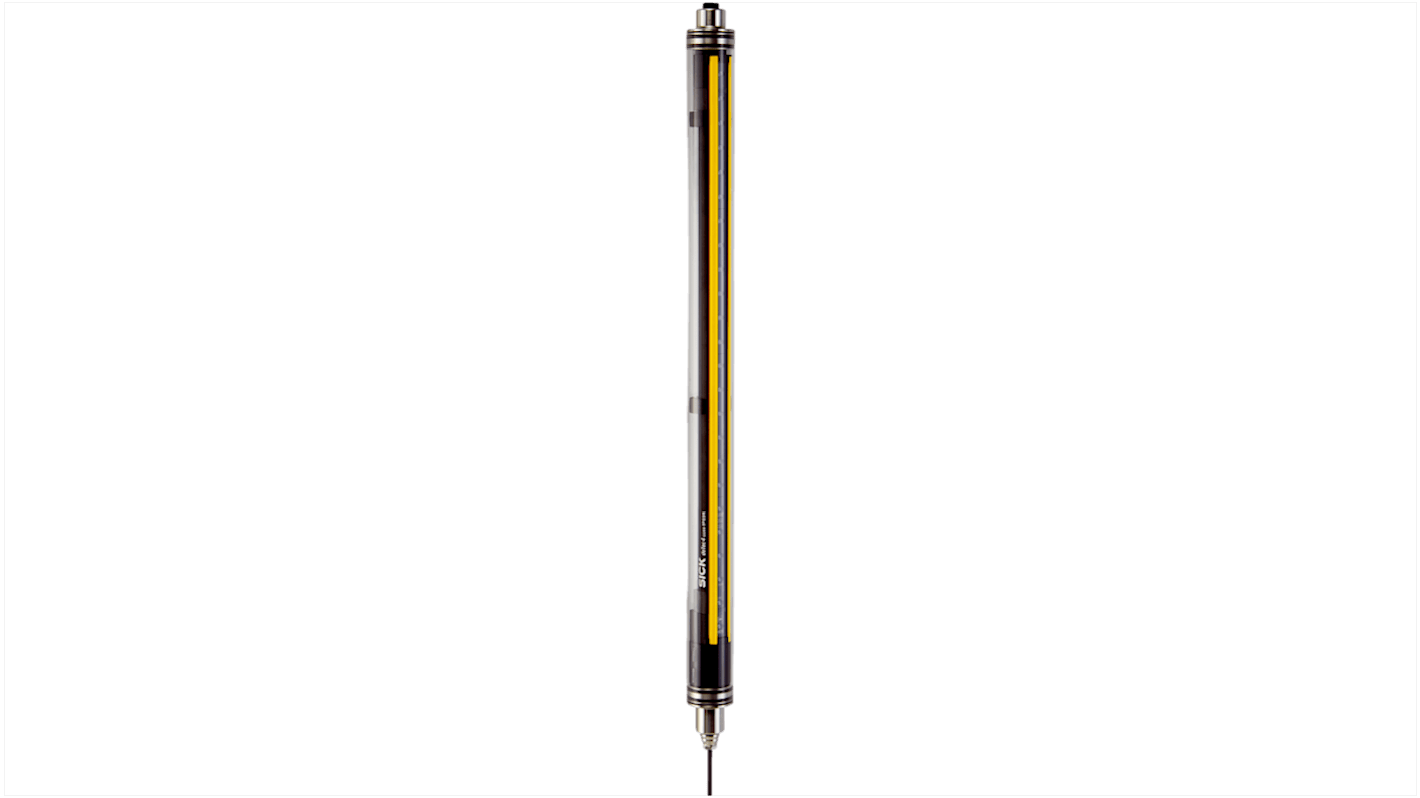

SICK C4C Series Light Curtain Sender, 30 mm Resolution
- RS Stock No.:
- 285-0993
- Mfr. Part No.:
- C4C-SB18030A10000
- Brand:
- SICK
Subtotal (1 unit)*
£1,980.67
(exc. VAT)
£2,376.80
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 01 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,980.67 |
*price indicative
- RS Stock No.:
- 285-0993
- Mfr. Part No.:
- C4C-SB18030A10000
- Brand:
- SICK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SICK | |
| Product Type | Light Curtain | |
| Series | C4C | |
| Beam Resolution | 30mm | |
| Component Type | Sender | |
| Safety Type | Type 4 | |
| Standards/Approvals | ACMA, CE, cUL, EC-Type-Examination, GB, GB/T, IEC, Moroccan, OSHA, RoHS, UKCA, cULus | |
| Protective Height | 1.8m | |
| Maximum Supply Voltage | 24V | |
| Maximum Scanning Distance | 12.5m | |
| Length | 1.969m | |
| Height | 1.969m | |
| Width | 60.5mm | |
| Terminal Type | Spring Terminal | |
| Select all | ||
|---|---|---|
Brand SICK | ||
Product Type Light Curtain | ||
Series C4C | ||
Beam Resolution 30mm | ||
Component Type Sender | ||
Safety Type Type 4 | ||
Standards/Approvals ACMA, CE, cUL, EC-Type-Examination, GB, GB/T, IEC, Moroccan, OSHA, RoHS, UKCA, cULus | ||
Protective Height 1.8m | ||
Maximum Supply Voltage 24V | ||
Maximum Scanning Distance 12.5m | ||
Length 1.969m | ||
Height 1.969m | ||
Width 60.5mm | ||
Terminal Type Spring Terminal | ||
- COO (Country of Origin):
- DE
SICK C4C Series Light Curtain, 1800mm Protective Height, 12.5m Scanning Distance - C4C-SB18030A10000
This light curtain is a sender unit designed for safeguarding access points in industrial environments, providing a near‑infrared protective field to detect intrusions across a tall guard height. It operates from a 24V supply with optical synchronisation to a compatible receiver and is housed for use in hygienic or wash‑down settings. The device supplies safety outputs via a five‑wire flying‑lead cable and delivers a secure stop state when a fault is detected.
Features and Benefits:
• 30mm beam resolution for precise object detection
• 12.5m scanning distance enabling long‑range protection
• Type 4 safety classification delivering high‑risk coverage
• SIL3 and PL e ratings for Advanced functional safety
• IP69K enclosure rating for wash‑down and harsh environments
• 12.5m scanning distance enabling long‑range protection
• Type 4 safety classification delivering high‑risk coverage
• SIL3 and PL e ratings for Advanced functional safety
• IP69K enclosure rating for wash‑down and harsh environments
Applications
• Suitable for machine guarding on automated lines
• Ideal for hygienic production areas requiring wash‑down
• Used with safety relays for restart interlock functions
• Can be used for perimeter protection in robotics cells
• Ideal for hygienic production areas requiring wash‑down
• Used with safety relays for restart interlock functions
• Can be used for perimeter protection in robotics cells
What supply voltage range does it accept?
It accepts a 24V DC supply within a 19.2V to 28.8V range.
How is the unit connected to the control system?
It uses a 15m PUR halogen‑free cable with five flying leads.
How does the device behave on a detected fault?
The safe state forces at least one OSSD to the OFF state.
Which indicators assist alignment and status checks?
LEDs provide operating and alignment information.
What materials contribute to wash‑down suitability?
The housing uses PMMA, with stainless‑steel end caps and cable glands.
