SICK C2MT Series miniTwin Light Curtain Safety Light Curtains, 14mm Resolution

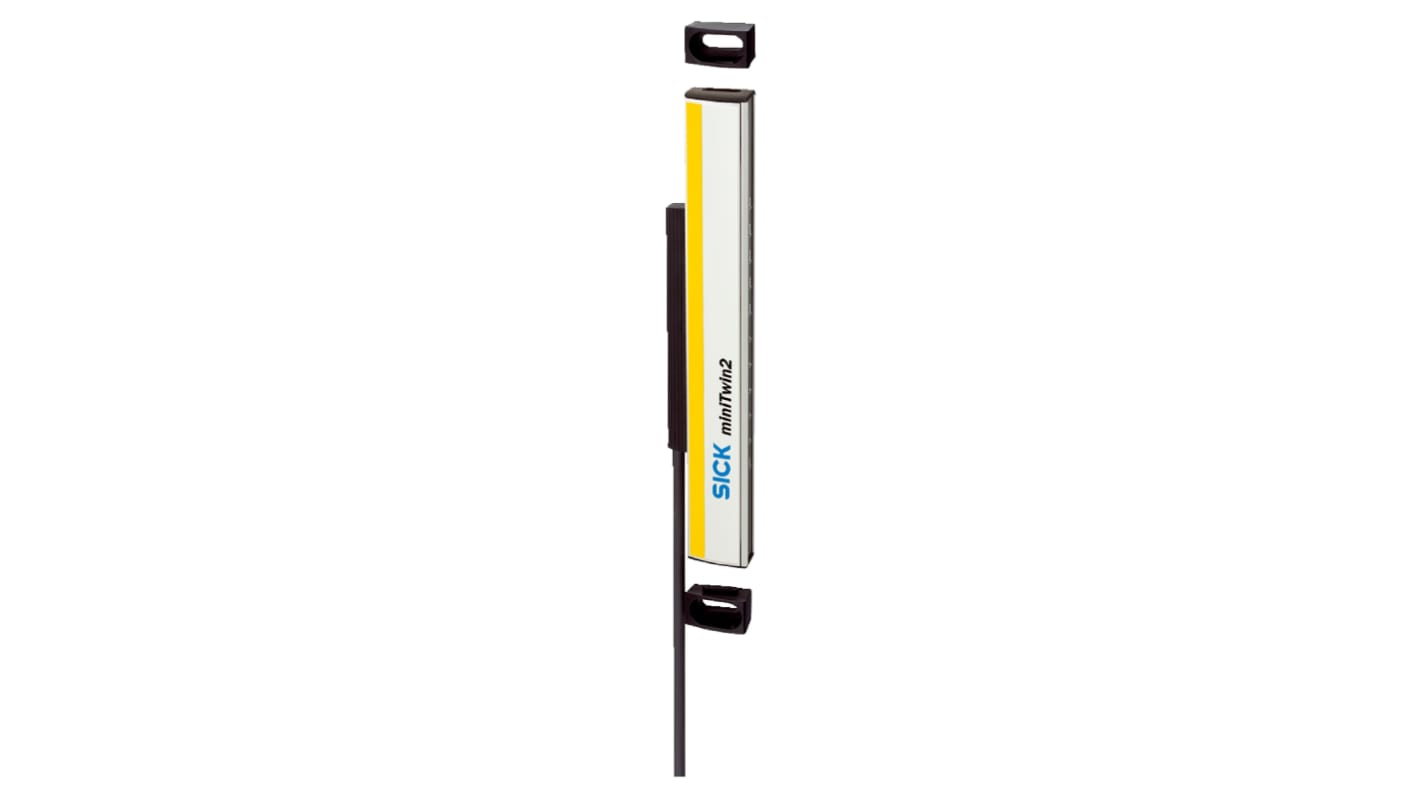

The miniTwin safety light curtain system includes one Twin-Stick designed for standalone use. It utilizes an O-fix bracket mounting system and offers a safety level of Type 2, PL c, SIL1, with a resolution of 14 mm and a scanning range of 8 meters. The protective field height is 180 mm, and it features a Male connector M12 with 5 pins for connection. The system has an enclosure rating of IP65, providing protection against dust and water. Included items are the Twin stick, system plug, two O-Fix brackets, a test rod matching the resolution, safety instructions, mounting instructions, and downloadable operating instructions. For more than 10 years, SICK has been writing a success story with the miniTwin – the safety light curtain in miniature format – in hazardous point protection for finger and hand protection.

Its two twin sticks, in which the sender and receiver are installed symmetrically in a compact housing for the first time, have received several awards. One of the Twin-Sticks is mounted opposite the other one and rotated by 180 degrees. This creates a safe protective field. The miniature design of the miniTwin, the option of cascading it and its different protective field heights save production space and enable small safety distances. At the same time, this mini device achieves great things: it functions perfectly, even when subjected to very strong shocks and vibrations and temperatures down to –20° Celsius.

Twin sticks: sender and receiver in a compact housing
Different protective field heights, graduated to 60 mm each
Diagnostics through protective field visualization
Commissioning and alignment by means of color LEDs, configuration without software
Cascading possible
Application-specific brackets

Benefit from optimum integration into your machine thanks to the miniature design
Minimize your ordering, logistics, handling and maintenance work due to the small number of components, which are all standardized.
Increase the productivity of your staff with optimal work ergonomics. With the miniTwin, work can be performed unhindered at machines, accelerating production processes.
Take advantage of the benefits of quick diagnostics
Save time and resources thanks to easy commissioning and configuration
Eliminate blind zones
Reduce mounting times

Fields of applications
Packaging industry
Food and beverage industry
Health care manufacturing
Storage and conveyor
Electronics industry
Automotive and parts suppliers

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
