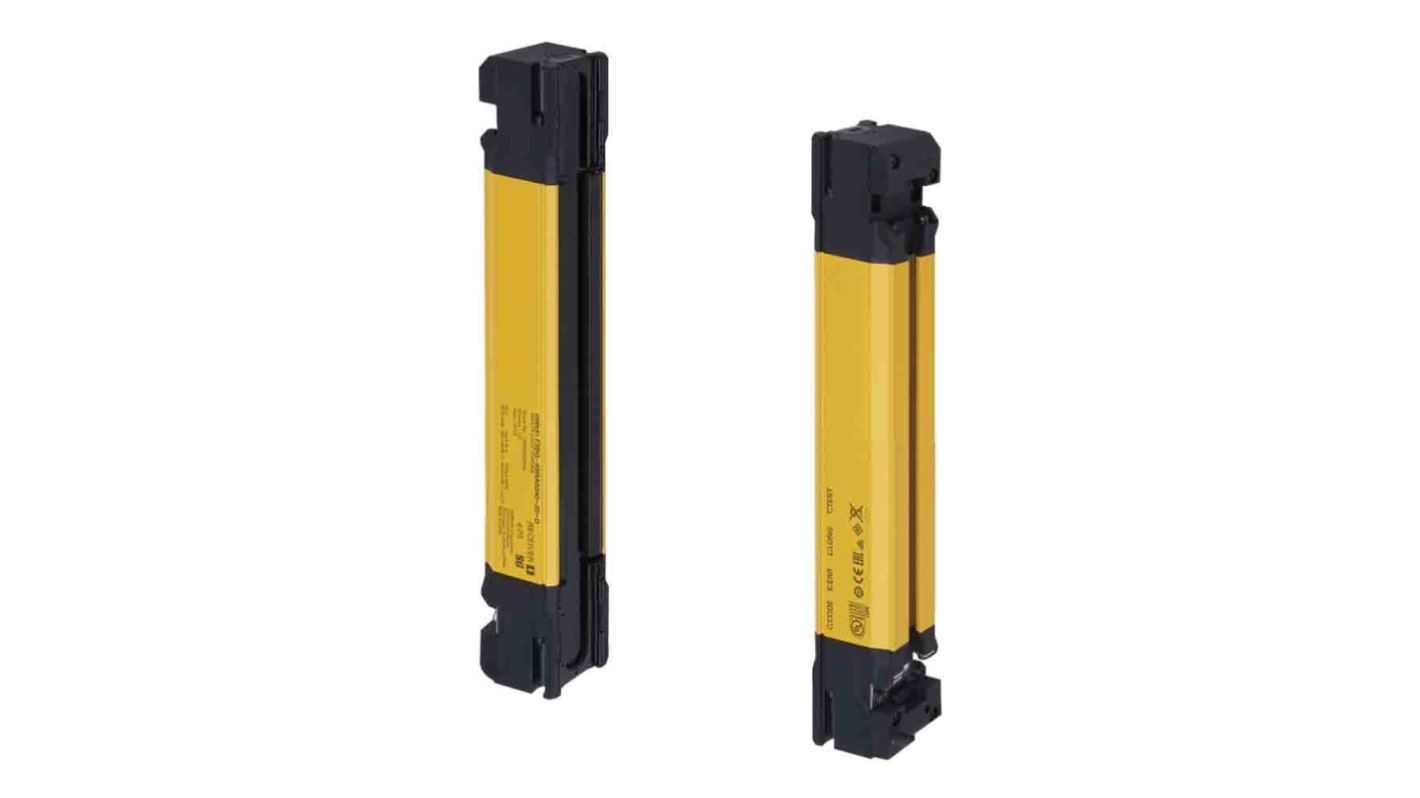

Omron F3SG-SRA Series Light Curtain Receiver, 24 Beam(s), 25 mm Resolution

This light curtain is a safety sensor designed to detect intrusions into hazardous zones on machinery. It operates as a receiver unit within a safety light curtain arrangement, providing area protection for industrial processes where presence detection is required. The device is intended for integration into machine safeguarding systems and offers a compact form factor suitable for space-constrained installations.

• 24 beams provide dense object detection and improved safeguarding
• 25mm beam resolution enables accurate object discrimination
• 0.3m minimum scanning distance allows close-proximity protection
• 20m maximum scanning distance supports long-range installations
• 8ms maximum response time reduces exposure during intrusion
• 28.8V maximum supply voltage permits standard industrial power integration

• Suitable for safeguarding access points on production lines
• Ideal for perimeter protection of robotic cells
• Used with transfer systems requiring close-range detection
• Can be used for long-reach guarding of conveyor segments
• Appropriate for retrofitting compact machine frames

The device provides a protective height of 480mm to define the guarded aperture vertically.

The housing has a width of 32mm, enabling installation where lateral space is limited.

It employs 24 individual beams, arranged to deliver the specified beam spacing for detection tasks.

The system can extend protection up to a maximum protective width of 20m when arranged appropriately.
