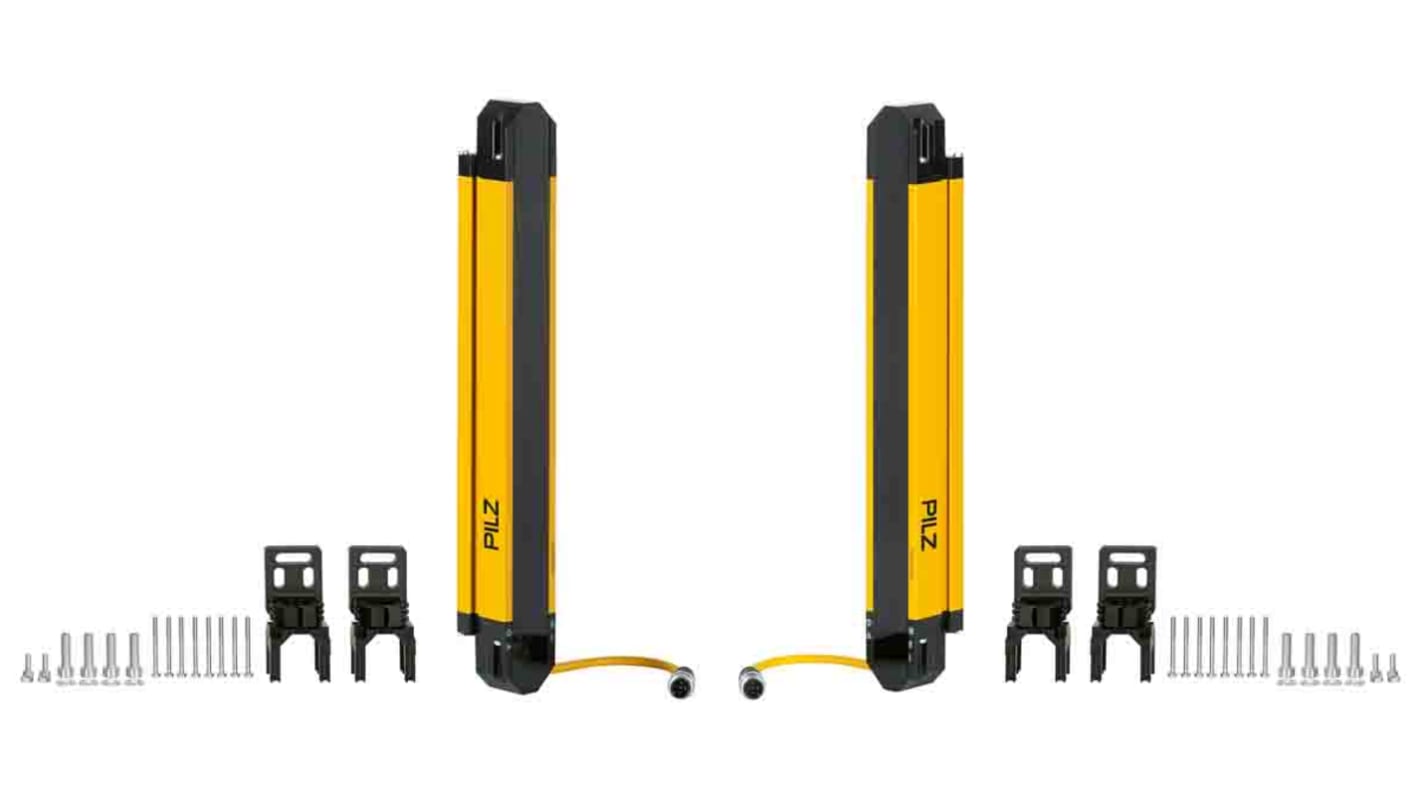

Pilz PSEN opII4F Series Light Curtain Receiver, Transmitter, 14mm Resolution
- RS Stock No.:
- 191-9850
- Mfr. Part No.:
- 632081
- Brand:
- Pilz
Subtotal (1 unit)*
£1,143.16
(exc. VAT)
£1,371.79
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,143.16 |
*price indicative
- RS Stock No.:
- 191-9850
- Mfr. Part No.:
- 632081
- Brand:
- Pilz
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Pilz | |
| Series | PSEN opII4F | |
| Beam Resolution | 14mm | |
| Component Type | Receiver, Transmitter | |
| Safety Type | 4 | |
| PL EN ISO 13849-1 | e | |
| Protective Height | 300mm | |
| Minimum Scanning Distance | 0.2m | |
| Maximum Scanning Distance | 8m | |
| Maximum Response Time | 15.2 ms | |
| Height | 304mm | |
| Length | 35mm | |
| Supply Voltage | 24 V dc | |
| Dimensions | 35 x 40 x 304 mm | |
| Application | Industrial | |
| Features | Infrared Protected Field is Generated, Led Indicator for Status Information, Optical Synchronisation of Transmitters and Receivers, Aluminium Alloy Housing, Die-Cast Zinc End Caps | |
| Width | 40mm | |
| Terminal Type | 5-Pin M12 Connector | |
Select all | ||
|---|---|---|
Brand Pilz | ||
Series PSEN opII4F | ||
Beam Resolution 14mm | ||
Component Type Receiver, Transmitter | ||
Safety Type 4 | ||
PL EN ISO 13849-1 e | ||
Protective Height 300mm | ||
Minimum Scanning Distance 0.2m | ||
Maximum Scanning Distance 8m | ||
Maximum Response Time 15.2 ms | ||
Height 304mm | ||
Length 35mm | ||
Supply Voltage 24 V dc | ||
Dimensions 35 x 40 x 304 mm | ||
Application Industrial | ||
Features Infrared Protected Field is Generated, Led Indicator for Status Information, Optical Synchronisation of Transmitters and Receivers, Aluminium Alloy Housing, Die-Cast Zinc End Caps | ||
Width 40mm | ||
Terminal Type 5-Pin M12 Connector | ||
