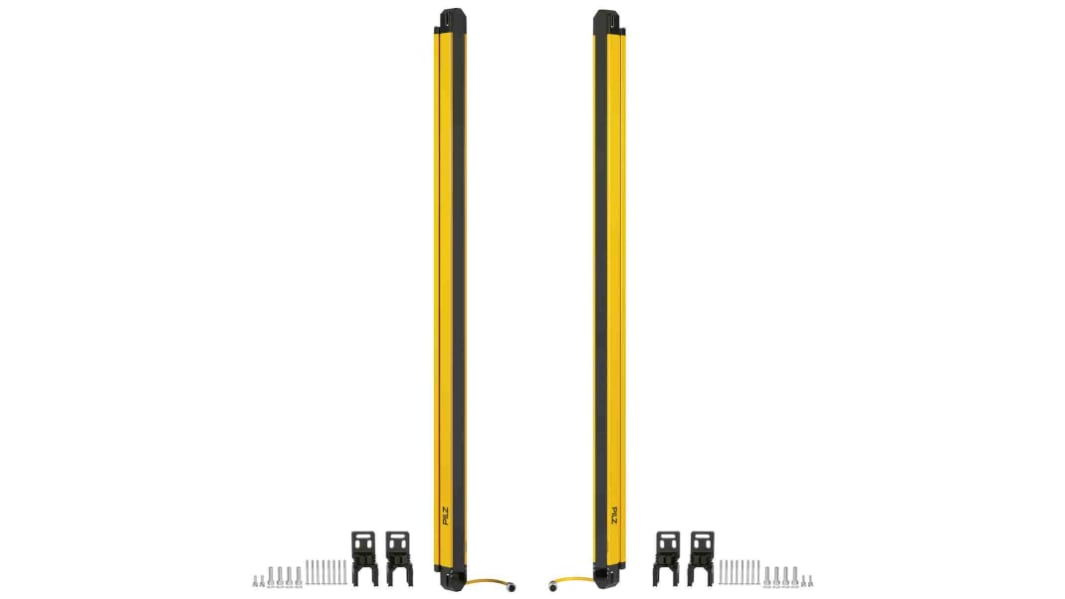

Pilz PSEN opII3H Series Light Curtain Receiver, Transmitter, 30mm Resolution
- RS Stock No.:
- 191-9838
- Mfr. Part No.:
- 632025
- Brand:
- Pilz
Subtotal (1 unit)*
£1,299.50
(exc. VAT)
£1,559.40
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,299.50 |
*price indicative
- RS Stock No.:
- 191-9838
- Mfr. Part No.:
- 632025
- Brand:
- Pilz
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Pilz | |
| Series | PSEN opII3H | |
| Beam Resolution | 30mm | |
| Component Type | Receiver, Transmitter | |
| Safety Type | 3 | |
| PL EN ISO 13849-1 | d | |
| Protective Height | 900mm | |
| Minimum Scanning Distance | 0.2m | |
| Maximum Scanning Distance | 18m | |
| Maximum Response Time | 15.2 ms | |
| Supply Voltage | 24 V dc | |
| Length | 35mm | |
| Height | 904mm | |
| Application | Industrial | |
| Features | Infrared Protected Field is Generated, Led Indicator for Status Information, Optical Synchronisation of Transmitters and Receivers, Aluminium Alloy Housing, Die-Cast Zinc End Caps | |
| Width | 40mm | |
| Terminal Type | 5-Pin M12 Connector | |
| Dimensions | 35 x 40 x 904 mm | |
Select all | ||
|---|---|---|
Brand Pilz | ||
Series PSEN opII3H | ||
Beam Resolution 30mm | ||
Component Type Receiver, Transmitter | ||
Safety Type 3 | ||
PL EN ISO 13849-1 d | ||
Protective Height 900mm | ||
Minimum Scanning Distance 0.2m | ||
Maximum Scanning Distance 18m | ||
Maximum Response Time 15.2 ms | ||
Supply Voltage 24 V dc | ||
Length 35mm | ||
Height 904mm | ||
Application Industrial | ||
Features Infrared Protected Field is Generated, Led Indicator for Status Information, Optical Synchronisation of Transmitters and Receivers, Aluminium Alloy Housing, Die-Cast Zinc End Caps | ||
Width 40mm | ||
Terminal Type 5-Pin M12 Connector | ||
Dimensions 35 x 40 x 904 mm | ||
