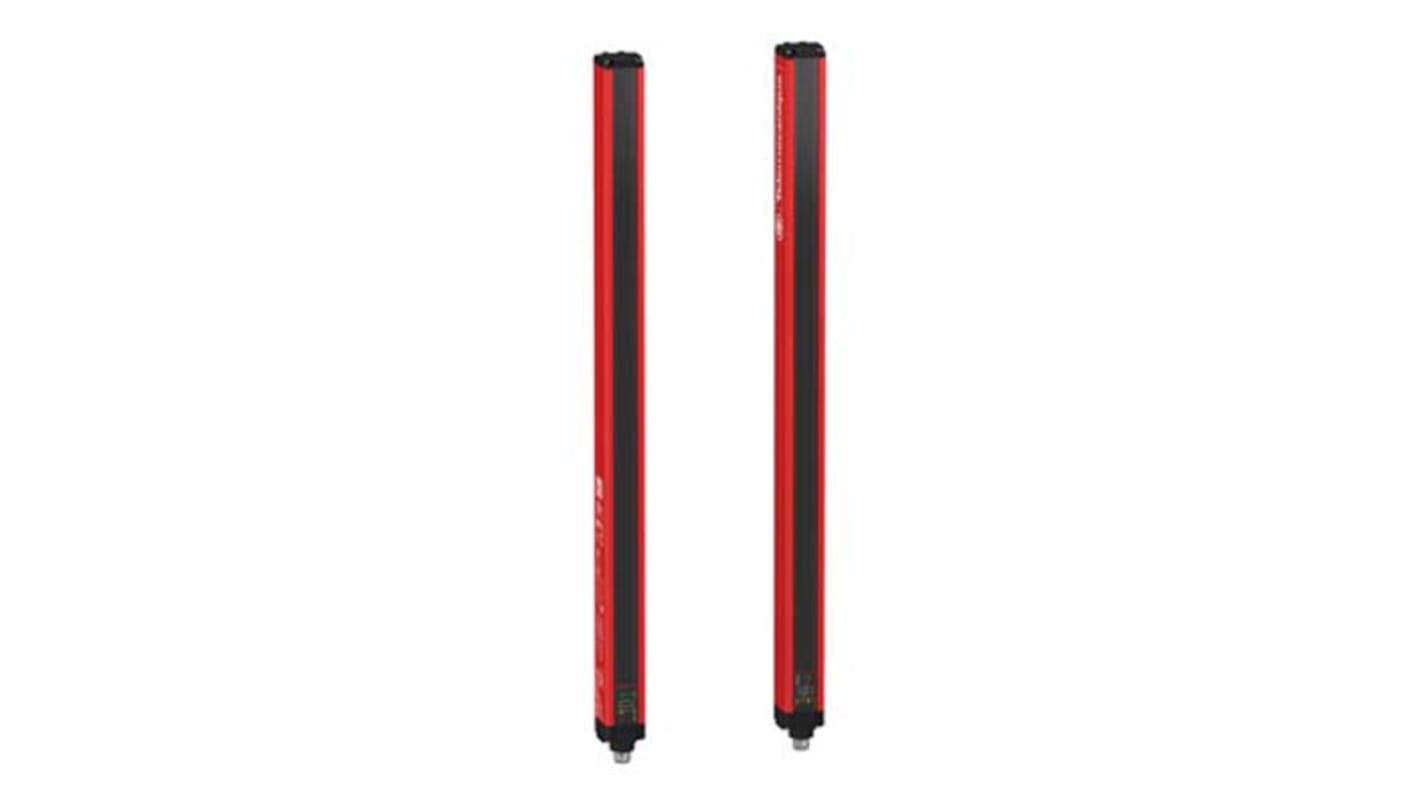

Telemecanique Sensors XUSL4E Series Preventa Light Curtain Receiver, Transmitter, 4 Beam(s), 300mm Resolution
- RS Stock No.:
- 127-8329
- Mfr. Part No.:
- XUSL4E4BB091N
- Brand:
- Telemecanique Sensors
Subtotal (1 pair)*
£1,398.08
(exc. VAT)
£1,677.70
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pair(s) | Per Pair |
|---|---|
| 1 + | £1,398.08 |
*price indicative
- RS Stock No.:
- 127-8329
- Mfr. Part No.:
- XUSL4E4BB091N
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Range | Preventa | |
| Series | XUSL4E | |
| Beam Resolution | 300mm | |
| Component Type | Receiver, Transmitter | |
| Safety Type | 4 | |
| SIL IEC 61508 | 3 | |
| PL EN ISO 13849-1 | e | |
| Number of Beams | 4 | |
| Protective Height | 910mm | |
| Minimum Scanning Distance | 0m | |
| Maximum Scanning Distance | 4 m, 12 m | |
| Maximum Response Time | 3 ms | |
| Length | 31mm | |
| Supply Voltage | 24 V dc | |
| Height | 1053mm | |
| Terminal Type | 5-Pin M12 Male Connector (Transmitter), 8-Pin M12 Male Connector (Receiver) | |
| Application | Body | |
| Dimensions | 31 x 29.4 x 1053 mm | |
| Features | 2 PNP Output, Automatic/Manual Restart, Multi-Colour LEDs | |
| Width | 29.4mm | |
Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Range Preventa | ||
Series XUSL4E | ||
Beam Resolution 300mm | ||
Component Type Receiver, Transmitter | ||
Safety Type 4 | ||
SIL IEC 61508 3 | ||
PL EN ISO 13849-1 e | ||
Number of Beams 4 | ||
Protective Height 910mm | ||
Minimum Scanning Distance 0m | ||
Maximum Scanning Distance 4 m, 12 m | ||
Maximum Response Time 3 ms | ||
Length 31mm | ||
Supply Voltage 24 V dc | ||
Height 1053mm | ||
Terminal Type 5-Pin M12 Male Connector (Transmitter), 8-Pin M12 Male Connector (Receiver) | ||
Application Body | ||
Dimensions 31 x 29.4 x 1053 mm | ||
Features 2 PNP Output, Automatic/Manual Restart, Multi-Colour LEDs | ||
Width 29.4mm | ||
Schneider Preventa XUSL Safety Light Beams
Telemecanique safety light curtains from the XUSL Series. Typical applications would include robotic systems, assembly and packaging lines, welding equipment and machine tools. All models are highly reliable and excellent quality.
Features & Benefits
Automatic or Manual start
IP65/67 rated
IP65/67 rated
Perimeter and Access Guard
