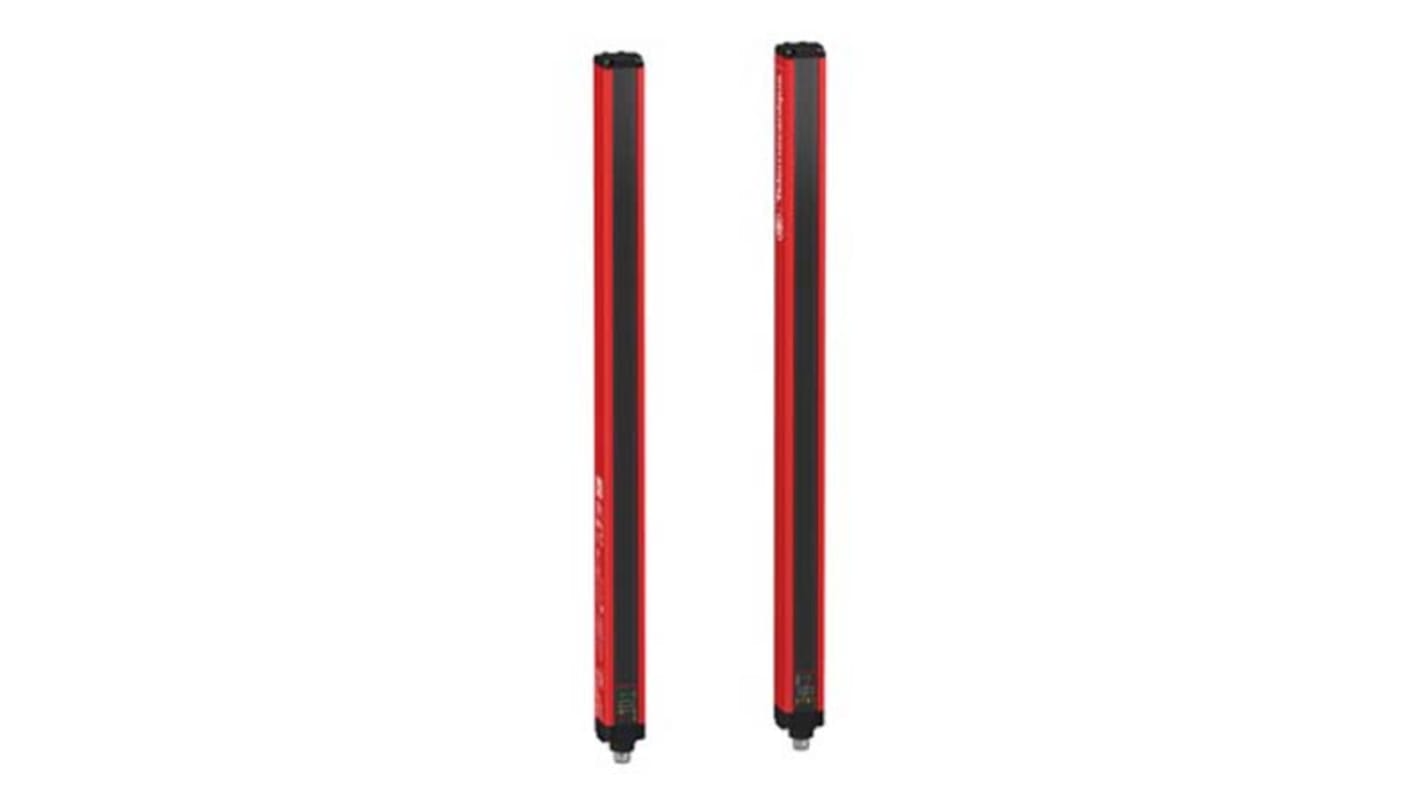

Telemecanique Sensors XUSL4E Series Preventa Light Curtain Receiver, Transmitter, 15 Beam(s), 14mm Resolution
- RS Stock No.:
- 127-8315
- Mfr. Part No.:
- XUSL4E14F016N
- Brand:
- Telemecanique Sensors
Subtotal (1 pair)*
£1,183.76
(exc. VAT)
£1,420.51
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 13 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pair(s) | Per Pair |
|---|---|
| 1 + | £1,183.76 |
*price indicative
- RS Stock No.:
- 127-8315
- Mfr. Part No.:
- XUSL4E14F016N
- Brand:
- Telemecanique Sensors
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Range | Preventa | |
| Series | XUSL4E | |
| Beam Resolution | 14mm | |
| Component Type | Receiver, Transmitter | |
| Safety Type | 4 | |
| SIL IEC 61508 | 3 | |
| PL EN ISO 13849-1 | e | |
| Number of Beams | 15 | |
| Protective Height | 160mm | |
| Minimum Scanning Distance | 0 m, 1 m | |
| Maximum Scanning Distance | 3 m, 6 m | |
| Maximum Response Time | 4 ms | |
| Length | 31mm | |
| Supply Voltage | 24 V dc | |
| Height | 213mm | |
| Dimensions | 31 x 29.4 x 213 mm | |
| Terminal Type | 5-Pin M12 Male Connector (Transmitter), 8-Pin M12 Male Connector (Receiver) | |
| Application | Finger | |
| Features | 2 PNP Output, Automatic/Manual Restart, Multi-Colour LEDs | |
| Width | 29.4mm | |
Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Range Preventa | ||
Series XUSL4E | ||
Beam Resolution 14mm | ||
Component Type Receiver, Transmitter | ||
Safety Type 4 | ||
SIL IEC 61508 3 | ||
PL EN ISO 13849-1 e | ||
Number of Beams 15 | ||
Protective Height 160mm | ||
Minimum Scanning Distance 0 m, 1 m | ||
Maximum Scanning Distance 3 m, 6 m | ||
Maximum Response Time 4 ms | ||
Length 31mm | ||
Supply Voltage 24 V dc | ||
Height 213mm | ||
Dimensions 31 x 29.4 x 213 mm | ||
Terminal Type 5-Pin M12 Male Connector (Transmitter), 8-Pin M12 Male Connector (Receiver) | ||
Application Finger | ||
Features 2 PNP Output, Automatic/Manual Restart, Multi-Colour LEDs | ||
Width 29.4mm | ||
