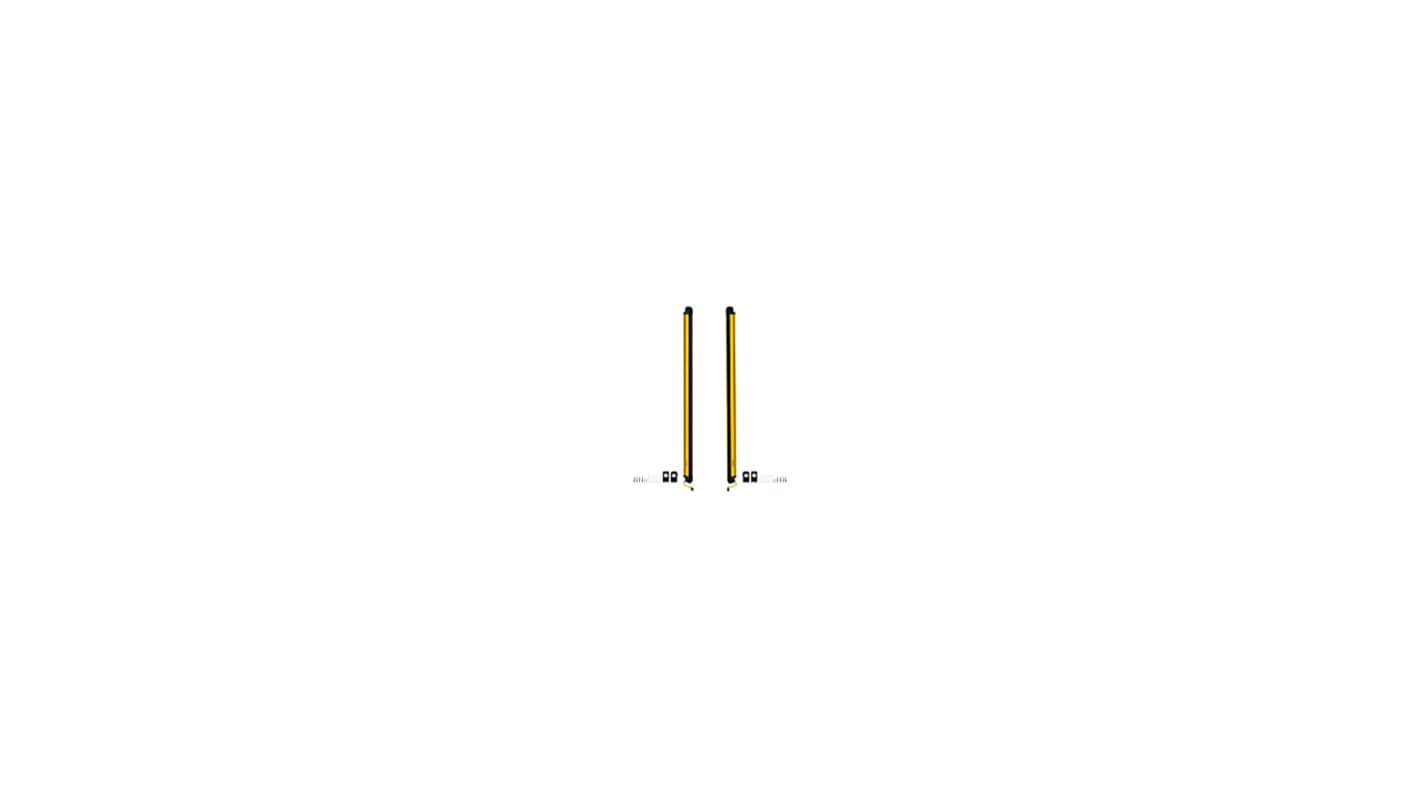

Pilz PSEN opII3F-s-14-075 Series Light Curtain Receiver, Sender, 14 mm Resolution
- RS Stock No.:
- 340-307
- Mfr. Part No.:
- 632044
- Brand:
- Pilz
Subtotal (1 unit)*
£1,639.56
(exc. VAT)
£1,967.47
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,639.56 |
*price indicative
- RS Stock No.:
- 340-307
- Mfr. Part No.:
- 632044
- Brand:
- Pilz
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Pilz | |
| Product Type | Light Curtain | |
| Series | PSEN opII3F-s-14-075 | |
| Beam Resolution | 14mm | |
| Component Type | Receiver, Sender | |
| Safety Type | 3 | |
| Standards/Approvals | TU¨V, UKCA, cULus Listed, CE, KCs, EAC (Eurasian) | |
| Protective Height | 750mm | |
| Maximum Supply Voltage | 24V | |
| Length | 50mm | |
| Height | 754mm | |
| Width | 35mm | |
| Terminal Type | M12 | |
| Select all | ||
|---|---|---|
Brand Pilz | ||
Product Type Light Curtain | ||
Series PSEN opII3F-s-14-075 | ||
Beam Resolution 14mm | ||
Component Type Receiver, Sender | ||
Safety Type 3 | ||
Standards/Approvals TU¨V, UKCA, cULus Listed, CE, KCs, EAC (Eurasian) | ||
Protective Height 750mm | ||
Maximum Supply Voltage 24V | ||
Length 50mm | ||
Height 754mm | ||
Width 35mm | ||
Terminal Type M12 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CH
The Pilz Safety Light Guard features Type 3, PL d finger protection with a resolution of 14 mm. It operates with a 24 V supply voltage and includes an M12 connector, with both transmitter and receiver having 5-pin connectors. The connection cable is not supplied with the device.
CE and UKCA listed
Infrared sensor principle
Aluminium housing
