Flowline EchoPod Series Ultrasonic Level Sensor Ultrasonic Level Sensor, 2 Wire Relay Output, Vertical, Polycarbonate
- RS Stock No.:
- 889-1362
- Mfr. Part No.:
- DL34-00
- Brand:
- Flowline
2 In stock - FREE next working day delivery available
Added
Price Each
£724.67
(exc. VAT)
£869.60
(inc. VAT)
| Units | Per unit |
| 1 + | £724.67 |
- RS Stock No.:
- 889-1362
- Mfr. Part No.:
- DL34-00
- Brand:
- Flowline
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- US
Product Details

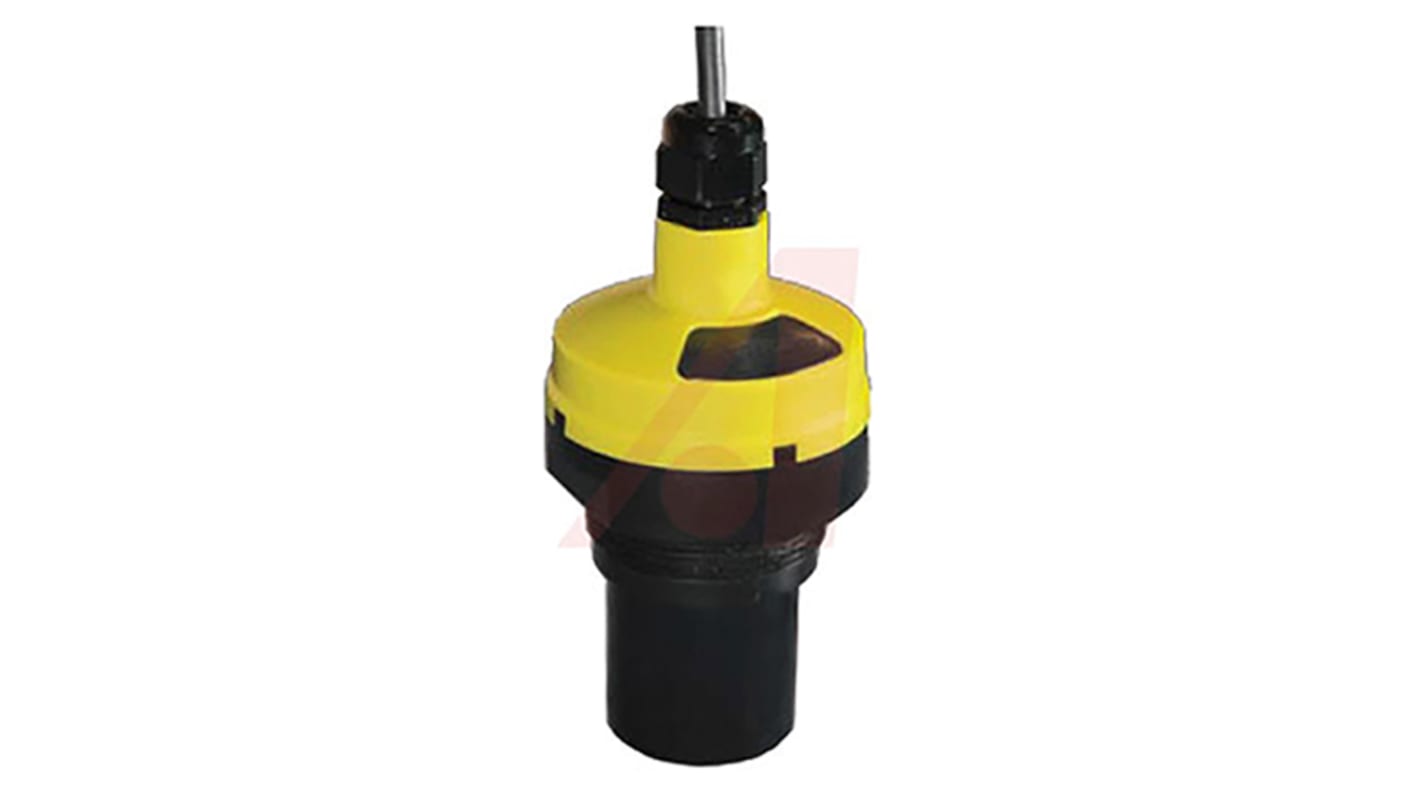

Flowline EchoPod DL24/34 Ultrasonic Level Sensor
Robust range of Ultrasonic level sensors provide the user with a non-contact continuous level solution. Thanks to the non-contact design, the Flowline EchoPod DL24/34 series is the ideal product for use within applications handling corrosive, sticky or dirty liquid. An embedded level controller within the DL14 series can reduce the price of installation, eliminating the cost of external hardware
Features and Benefits
Accurate measurement made possible thanks to automatic temperature compensation
Continuous non-contact measurement up to 49.2"
Optimised for small tank applications with a narrow 2" beam width and 2" short dead band
PVDF transducer and 6P Polycarbonate enclosure construction makes the EchoPod DL24/34 series suitable for corrosive applications
Quick & simple configuration via Flowline's Free WebCal Software & USB Adapter
Continuous non-contact measurement up to 49.2"
Optimised for small tank applications with a narrow 2" beam width and 2" short dead band
PVDF transducer and 6P Polycarbonate enclosure construction makes the EchoPod DL24/34 series suitable for corrosive applications
Quick & simple configuration via Flowline's Free WebCal Software & USB Adapter
Note
Compatible with Various Flowline product ranges such as DataLoop, DataView, DataPoint & Commander
Specifications
Attribute | Value |
|---|---|
| Device Type | Ultrasonic Level Sensor |
| Mounting Type | Vertical |
| Switch Output | 2 Wire Relay |
| Body Material | Polycarbonate |
| Cable Length | 1.2m |
| Minimum Operating Temperature | -35°C |
| Maximum Operating Temperature | +60°C |
| Maximum DC Voltage | 24V |
| Maximum Current | 20 mA |
| Maximum Pressure | 30psi |
| Gasket Material | Viton |
| Series | EchoPod |
| Standards Met | CE, RoHS Compliant |
