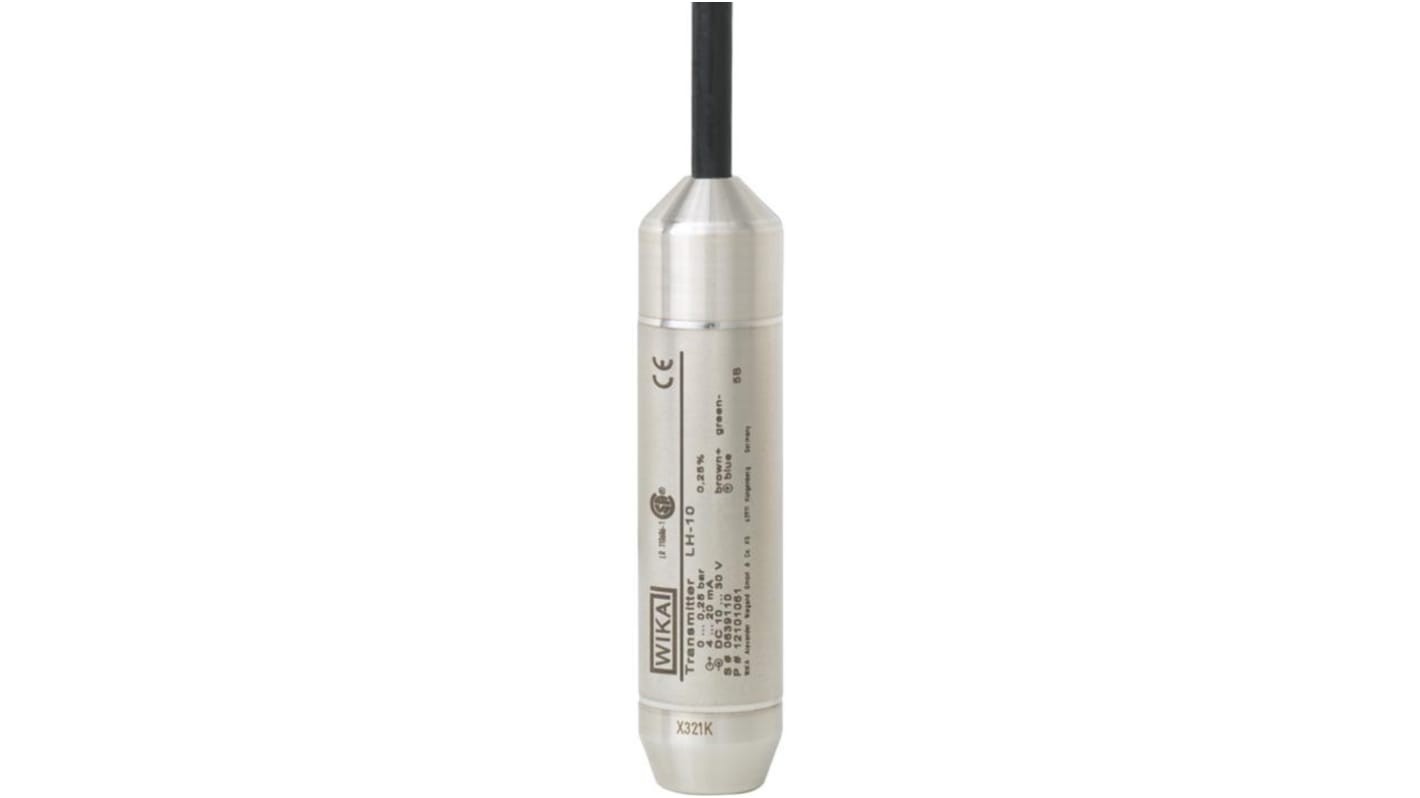

WIKA LH-10 Series level sensor Level Probe, Cable, NO-Rated, Housing Fluorinated Ethylene Propylene
- RS Stock No.:
- 269-0651
- Mfr. Part No.:
- 48769793
- Brand:
- WIKA
Subtotal (1 unit)*
£976.40
(exc. VAT)
£1,171.68
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £976.40 |
*price indicative
- RS Stock No.:
- 269-0651
- Mfr. Part No.:
- 48769793
- Brand:
- WIKA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WIKA | |
| Device Type | level sensor | |
| Product Type | Level Probe | |
| Mount Type | Cable | |
| Housing Material | Fluorinated Ethylene Propylene | |
| Cable Length | 15m | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 85°C | |
| Maximum DC Voltage | 30V dc | |
| Maximum Current | 20mA | |
| Maximum Pressure | 250mbar | |
| Standards/Approvals | WIKA Standard | |
| Series | LH-10 | |
| Hazardous Area Certification | NO | |
| Select all | ||
|---|---|---|
Brand WIKA | ||
Device Type level sensor | ||
Product Type Level Probe | ||
Mount Type Cable | ||
Housing Material Fluorinated Ethylene Propylene | ||
Cable Length 15m | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 85°C | ||
Maximum DC Voltage 30V dc | ||
Maximum Current 20mA | ||
Maximum Pressure 250mbar | ||
Standards/Approvals WIKA Standard | ||
Series LH-10 | ||
Hazardous Area Certification NO | ||
The WIKA LH-10 submersible pressure transmitter has been designed for level measurement in contact with the medium in harsh operating conditions. It offers an accuracy of 0.25 % and, with an ingress protection of IP 68, is suitable for permanent level measurements up to 300 m water column. It offers excellent quality, is reliable and, through a multitude of options, can be used in all conventional level measurement applications.
Precise and reliable
Integrated temperature measurement
Ingress protection IP68 permanently up to 300 m water column
