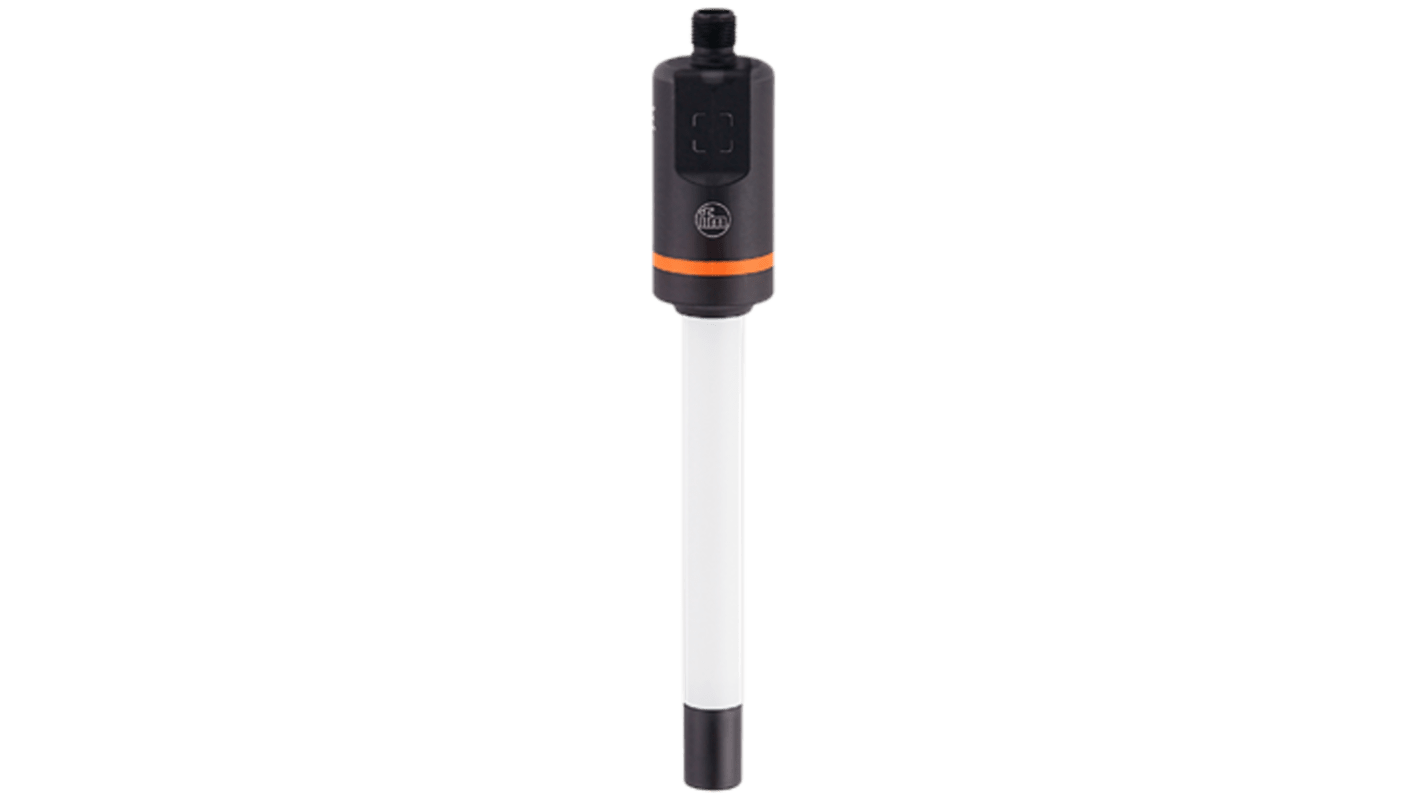

ifm electronic LI5 Series Sensor for Point Level Detection Level Sensor, Threaded Mount, Polypropylene, Housing
- RS Stock No.:
- 596-520
- Mfr. Part No.:
- LI5132
- Brand:
- ifm electronic
Subtotal (1 unit)*
£153.17
(exc. VAT)
£183.80
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship from another location
- Plus 3 unit(s) shipping from 19 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £153.17 |
*price indicative
- RS Stock No.:
- 596-520
- Mfr. Part No.:
- LI5132
- Brand:
- ifm electronic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ifm electronic | |
| Product Type | Level Sensor | |
| Device Type | Sensor for Point Level Detection | |
| Mount Type | Threaded Mount | |
| Housing Material | Polypropylene Reinforced Fibre | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 85°C | |
| Interface Type | IO-Link | |
| Maximum DC Voltage | 35V dc | |
| Maximum Current | 100mA | |
| Maximum Pressure | 0.5bar | |
| Gasket Material | Polypropylene | |
| Standards/Approvals | DIN EN 60068-2-27, DIN EN 60068-2-6, DIN EN 61000-6-2, DIN EN 61000-6-3, DIN EN 61000-6-4, UL | |
| Series | LI5 | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand ifm electronic | ||
Product Type Level Sensor | ||
Device Type Sensor for Point Level Detection | ||
Mount Type Threaded Mount | ||
Housing Material Polypropylene Reinforced Fibre | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 85°C | ||
Interface Type IO-Link | ||
Maximum DC Voltage 35V dc | ||
Maximum Current 100mA | ||
Maximum Pressure 0.5bar | ||
Gasket Material Polypropylene | ||
Standards/Approvals DIN EN 60068-2-27, DIN EN 60068-2-6, DIN EN 61000-6-2, DIN EN 61000-6-3, DIN EN 61000-6-4, UL | ||
Series LI5 | ||
Hazardous Area Certification No | ||
- COO (Country of Origin):
- RO
The ifm electronic point level detection sensor is a versatile solution designed for detecting the presence of liquids across various applications. With its robust capacitive measuring principle, it effectively operates in hydrous media environments. This sensor stands out with a remarkable probe length of 273 mm and has been engineered to withstand extreme conditions, featuring an impressive temperature range of -25 to 85 degrees Celsius. The unit's protection levels, including IP 68 and IP 69K, ensure reliability even under high-pressure and immersion scenarios. Enhanced with digital output capabilities, including Io-Link communication, this sensor seamlessly integrates into modern control systems, ensuring precise monitoring and control.
Capacitive measuring principle offers reliable detection of liquids
Designed for use in hydrous media, ensuring versatility in various applications
Temperature range of -25 to 85 degrees Celsius for robust performance in challenging environments
Dual digital outputs provide enhanced communication options
