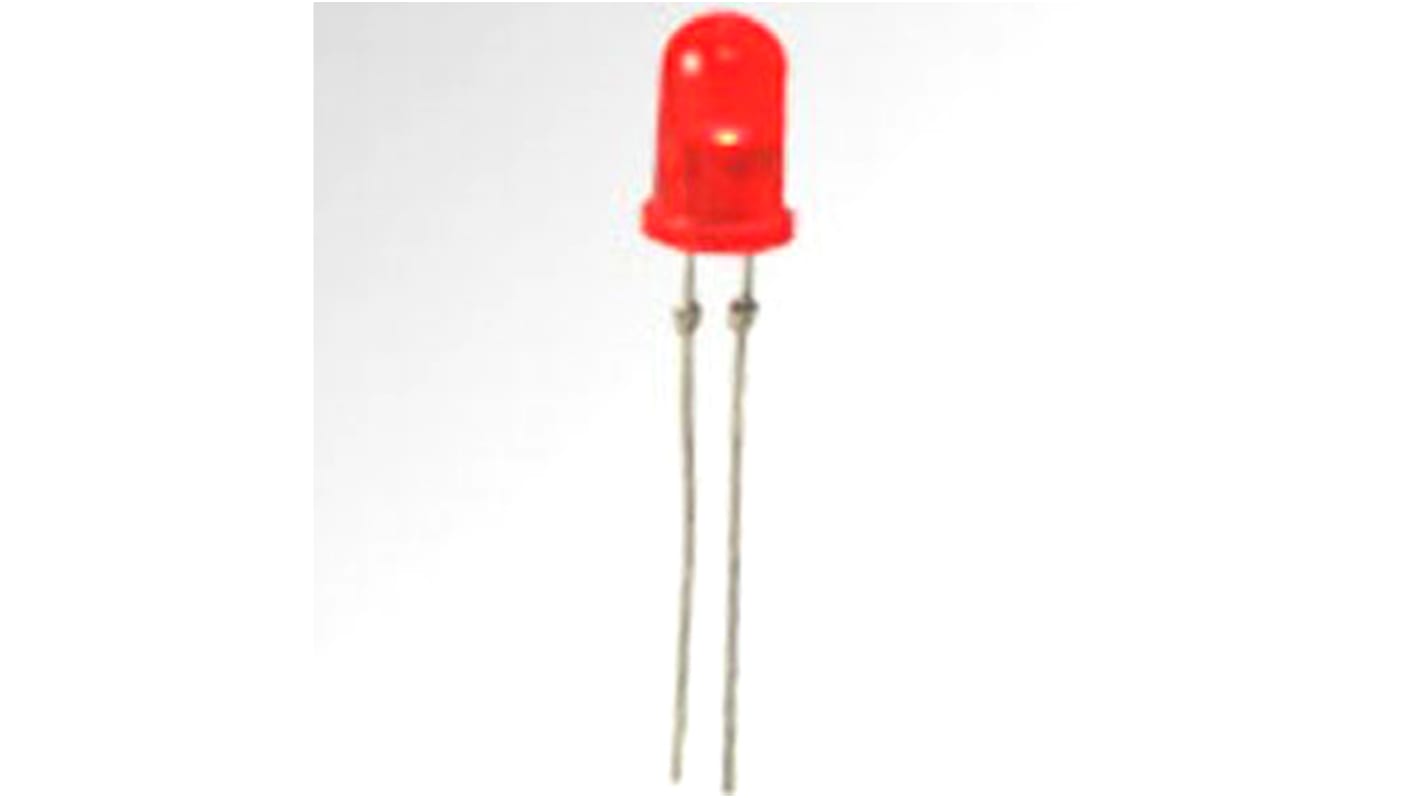

2.5 V Red LED 5mm Through Hole, Lumex SSL-LX5093SID

  • RS Stock No. 888-7155
  • Mfr. Part No. SSL-LX5093SID
  • Brand Lumex
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

Lumex Through-hole LED Range

Visible Light LEDs, Lumex

Specifications
Attribute Value
LED Colours Red
Package Type 5mm (T-1 3/4)
Mounting Type Through Hole
Number of LEDs 1
Forward Voltage 2.5 V
Luminous Intensity 700 mcd
Number of Pins 2
Viewing Angle 60 °
Lens Shape Dome
Dominant Wavelength 636 nm
Dimensions 9.6 (H) x 5.9 (Dia.)mm
Lens Finish Diffused
Forward Current 150mA
Lens Colour Red
Available to back order for despatch 07/02/2020
Price Each (In a Pack of 100)
£ 0.218
(exc. VAT)
£ 0.262
(inc. VAT)
Units
Per unit
Per Pack*
100 +
£0.218
£21.80
*price indicative
