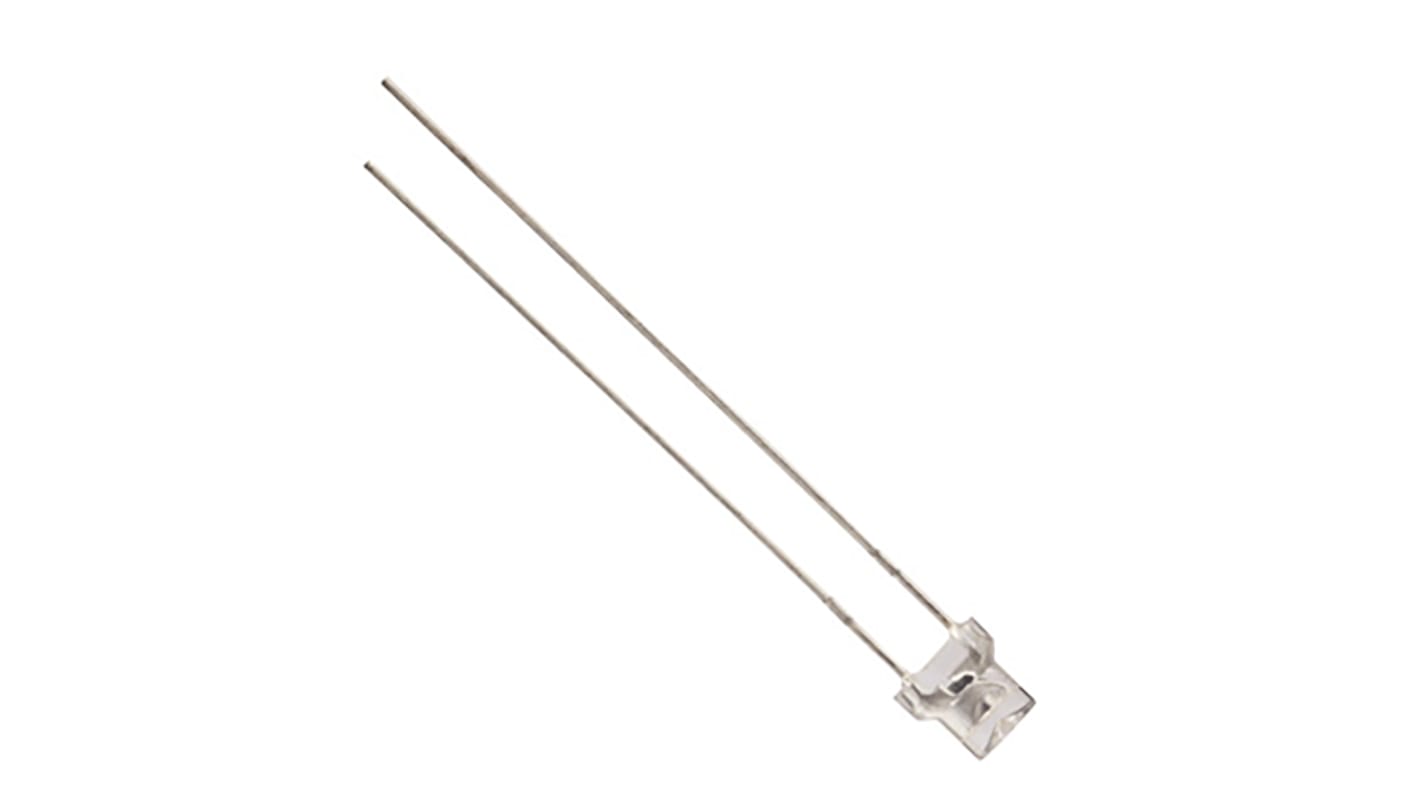

Kingbright 3.7 V Green LED 3 mm (T-1) Through Hole L-7104VGC-H
- RS Stock No.:
- 466-3481
- Mfr. Part No.:
- L-7104VGC-H
- Brand:
- Kingbright
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 466-3481
- Mfr. Part No.:
- L-7104VGC-H
- Brand:
- Kingbright
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Kingbright | |
| Product Type | LED | |
| LED Colour | Green | |
| Package Type | 3 mm (T-1) | |
| Maximum Forward Current | 150mA | |
| Mount Type | Through Hole | |
| Forward Voltage | 3.7V | |
| Maximum Power Dissipation | 120mW | |
| Number of Pins | 2 | |
| Viewing Angle | 34 ° | |
| Lens Dimensions | 3 x 4.6 mm | |
| Lens Shape | Round | |
| Dominant Wavelength | 525 nm | |
| Standards/Approvals | RoHS | |
| Lens Colour | Clear | |
| Select all | ||
|---|---|---|
Brand Kingbright | ||
Product Type LED | ||
LED Colour Green | ||
Package Type 3 mm (T-1) | ||
Maximum Forward Current 150mA | ||
Mount Type Through Hole | ||
Forward Voltage 3.7V | ||
Maximum Power Dissipation 120mW | ||
Number of Pins 2 | ||
Viewing Angle 34 ° | ||
Lens Dimensions 3 x 4.6 mm | ||
Lens Shape Round | ||
Dominant Wavelength 525 nm | ||
Standards/Approvals RoHS | ||
Lens Colour Clear | ||
- COO (Country of Origin):
- CN
Kingbright Through Hole Round LED Series - 3mm
This family of LEDs from Kingbright is in 3 mm (T-1) through hole packages. They are available in various colour options with either a diffused or water clear lens type. 3 mm round LEDs offer low power consumption and a long lifetime from a rugged and reliable package.
Visible Light LEDs, Kingbright
