Broadcom 3.9 V RGB LED Chip LED Surface Mount HSMF-C11 HSMF-C115
- RS Stock No.:
- 261-9709
- Mfr. Part No.:
- HSMF-C115
- Brand:
- Broadcom
Bulk discount available
Subtotal (1 pack of 10 units)*
£11.00
(exc. VAT)
£13.20
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 4,250 unit(s) shipping from 13 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 90 | £1.10 | £11.00 |
| 100 - 490 | £0.927 | £9.27 |
| 500 - 990 | £0.826 | £8.26 |
| 1000 - 2990 | £0.718 | £7.18 |
| 3000 + | £0.715 | £7.15 |
*price indicative
- RS Stock No.:
- 261-9709
- Mfr. Part No.:
- HSMF-C115
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| LED Colour | RGB | |
| Product Type | LED | |
| Maximum Forward Current | 20mA | |
| Package Type | Chip LED | |
| Packaging | 8 mm tape on 7 in Dia Reel | |
| Mount Type | Surface Mount | |
| Number of LEDs | 3 | |
| Maximum Power Dissipation | 78mW | |
| Forward Voltage | 3.9V | |
| Lens Dimensions | 2.5 x 1.0 x 1.0 mm | |
| Standards/Approvals | Class 1A ESD sensitive per JESD22-A114C.01 | |
| Lens Colour | Diffused | |
| Lens Finish | Diffused | |
| Series | HSMF-C11 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Broadcom | ||
LED Colour RGB | ||
Product Type LED | ||
Maximum Forward Current 20mA | ||
Package Type Chip LED | ||
Packaging 8 mm tape on 7 in Dia Reel | ||
Mount Type Surface Mount | ||
Number of LEDs 3 | ||
Maximum Power Dissipation 78mW | ||
Forward Voltage 3.9V | ||
Lens Dimensions 2.5 x 1.0 x 1.0 mm | ||
Standards/Approvals Class 1A ESD sensitive per JESD22-A114C.01 | ||
Lens Colour Diffused | ||
Lens Finish Diffused | ||
Series HSMF-C11 | ||
Automotive Standard No | ||
- COO (Country of Origin):
- TW

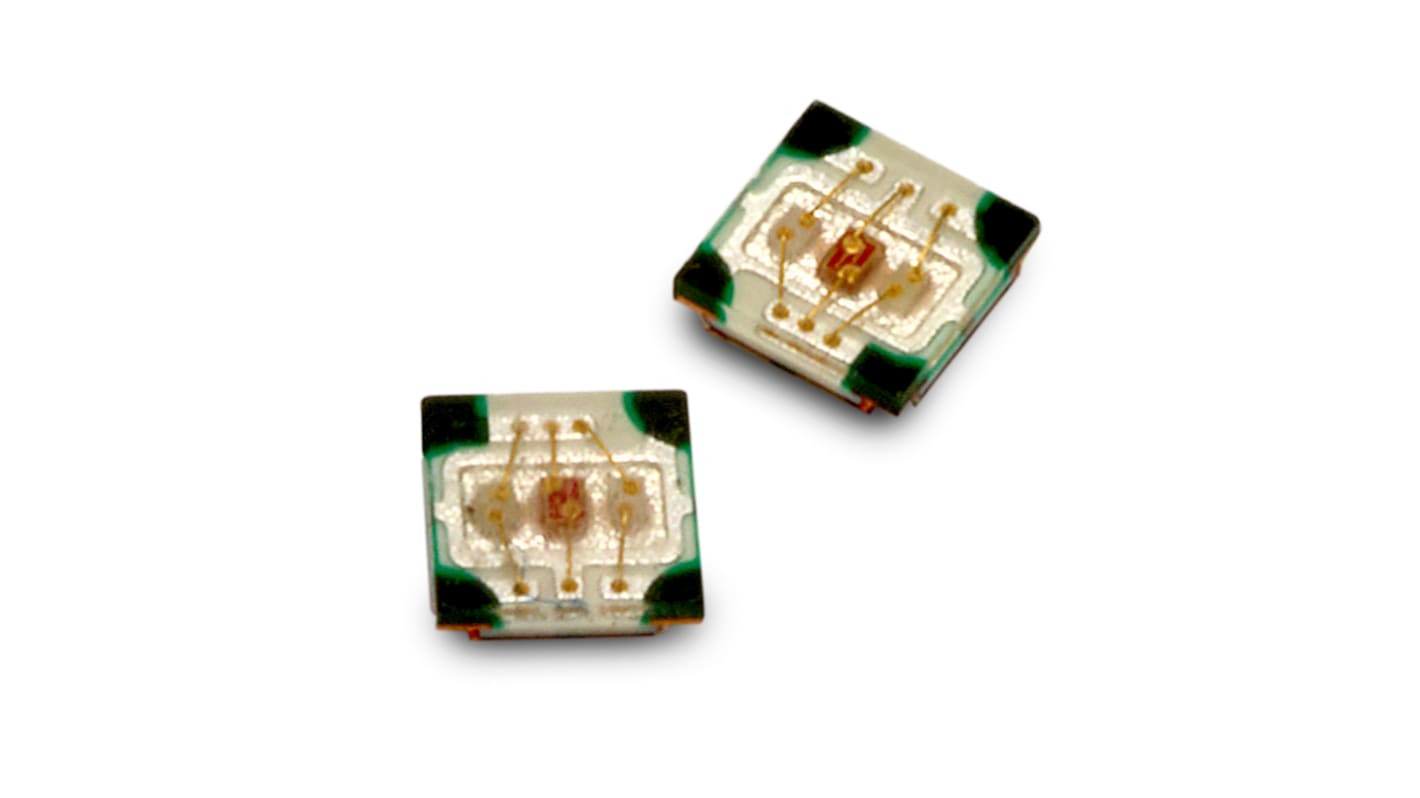

The Broadcom tricolor chip-type LED is designed in an ultra small package for miniaturization. It is the first of its kind to achieve such small packaging for 3 dies. With the freedom to have any combination of colors from mixing of the 3 primary colors, this will yield a wide variety of colors to suit every application and product theme.
Common anode
Small 2.5 x 1.0 x 1.0 mm package
Diffused optics
Available in 8 mm tape on 7 diameter reels
High brightness using AlInGaP and InGaN die technology
Compatible with reflow soldering
