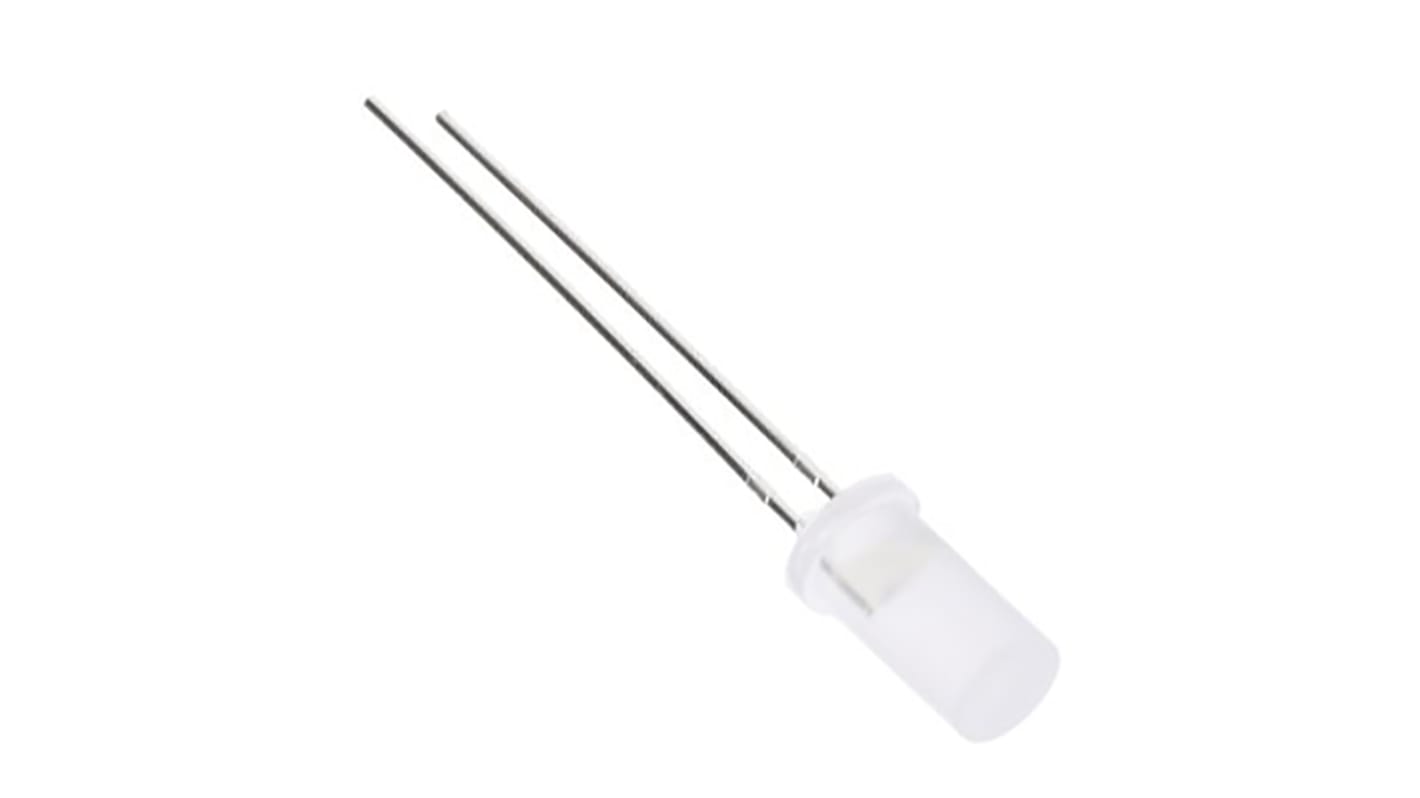

1.85 V, 2.2 V Green & Red LED 5mm Through Hole, Kingbright Cylindrical L-483SRSGW

  • RS Stock No. 247-1167
  • Mfr. Part No. L-483SRSGW
  • Brand Kingbright
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Kingbright Through Hole Cylindrical LED Series

The cylindrical series of through hole LEDs, from Kingbright, are available in 3mm and 5mm packages with a diffused, cylindrical lens shape. These LEDs are very reliable and rugged with a long lifetime. The cylindrical LEDs also offer low power consumption. Kingbright’s cylindrical LEDs fulfil the needs of a wide variety of through-hole LED applications.

Colours available: green, red, orange and yellow
Wide variety of viewing angles

//media.rs-online.com/t_line/L247116-01.gif

Visible Light LEDs, Kingbright

Specifications
Attribute Value
LED Colours Green, Red
Package Type 5mm (T-1 3/4)
Mounting Type Through Hole
Number of LEDs 2
Forward Voltage 1.85 V, 2.2 V
Luminous Intensity 50 mcd
Number of Pins 2
Viewing Angle 80 °
Lens Shape Round
Dominant Wavelength 568 / 640 nm
Dimensions 5mm
Lens Colour Clear
Series Cylindrical
2235 In stock for FREE next working day delivery
Price Each (In a Pack of 5)
£ 0.40
(exc. VAT)
£ 0.48
(inc. VAT)
Units
Per unit
Per Pack*
5 - 45
£0.40
£2.00
50 - 95
£0.232
£1.16
100 - 245
£0.162
£0.81
250 - 495
£0.15
£0.75
500 +
£0.148
£0.74
*price indicative
