ams OSRAM 3.2 V Blue LED Surface GB CS8PM1.13
- RS Stock No.:
- 238-1460
- Mfr. Part No.:
- GB CS8PM1.13-HYHZ-35
- Brand:
- ams OSRAM
Bulk discount available
View bulk pricing optionsSubtotal (1 reel of 600 units)*
£346.20
(exc. VAT)
£415.20
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 21 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 600 - 600 | £0.577 | £346.20 |
| 1200 - 1800 | £0.474 | £284.40 |
| 2400 - 4200 | £0.451 | £270.60 |
| 4800 + | £0.44 | £264.00 |
*price indicative
- RS Stock No.:
- 238-1460
- Mfr. Part No.:
- GB CS8PM1.13-HYHZ-35
- Brand:
- ams OSRAM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ams OSRAM | |
| LED Colour | Blue | |
| Product Type | LED | |
| Maximum Forward Current | 1000mA | |
| Mount Type | Surface | |
| Forward Voltage | 3.2V | |
| Dominant Wavelength | 470nm | |
| Standards/Approvals | RoHS | |
| Series | GB CS8PM1.13 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ams OSRAM | ||
LED Colour Blue | ||
Product Type LED | ||
Maximum Forward Current 1000mA | ||
Mount Type Surface | ||
Forward Voltage 3.2V | ||
Dominant Wavelength 470nm | ||
Standards/Approvals RoHS | ||
Series GB CS8PM1.13 | ||
Automotive Standard No | ||

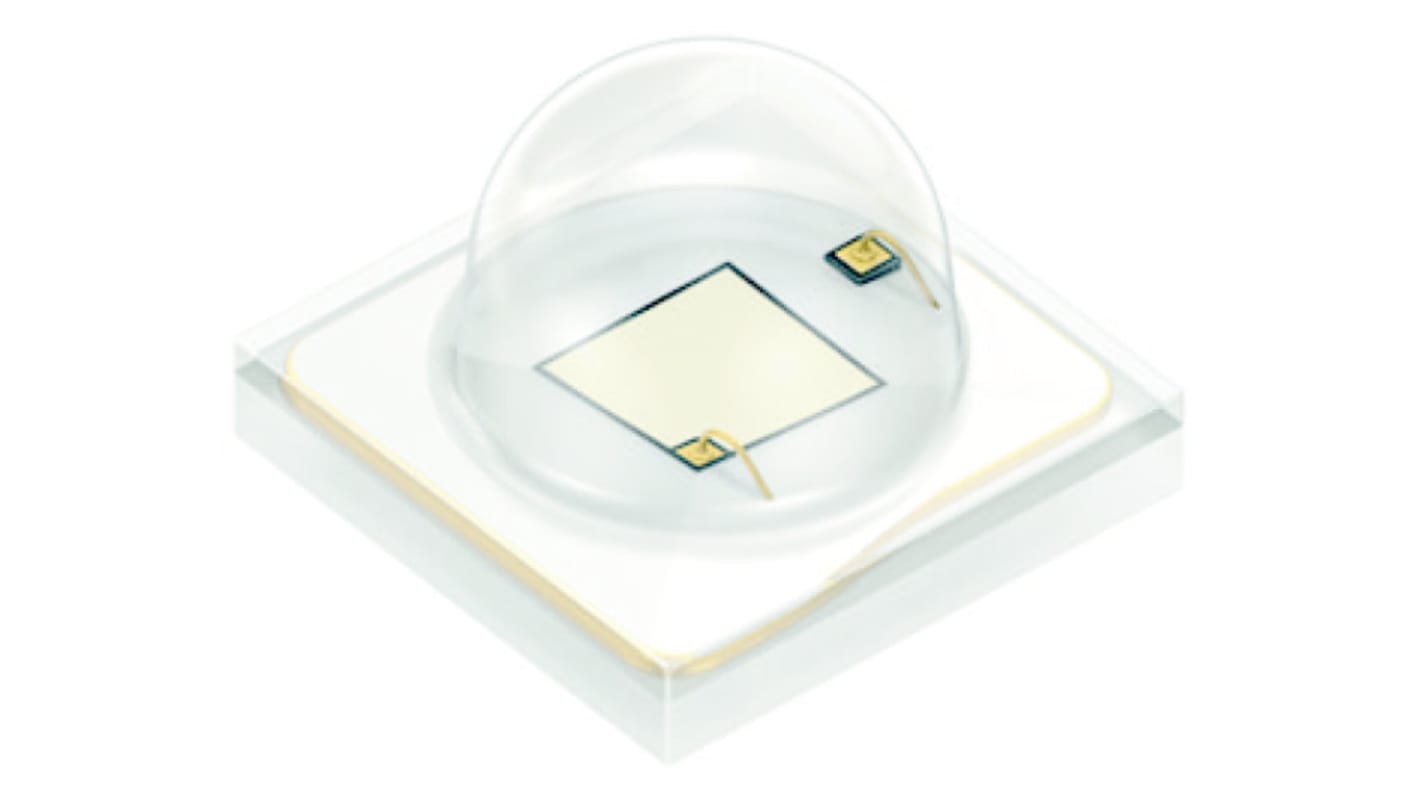

The OSRAM Opto Semiconductors OSLON® SSL 80 New, higher performing OSLON SSL family LED with well known superior robustness, high reliability, long lifetime, low thermal resistance, perfectly addressing applications demanding for high efficiency and long lifetime requirement. It can be used in various applications such as architecture, medical illumination and photo therapy.
Package SMT ceramic package with silicone lens
Typical radiation 80°
Lumen maintenance results according to IESNA LM-80 available
ESD 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
Luminous flux 43 lm
Luminous efficiency typical 43 lm/W
