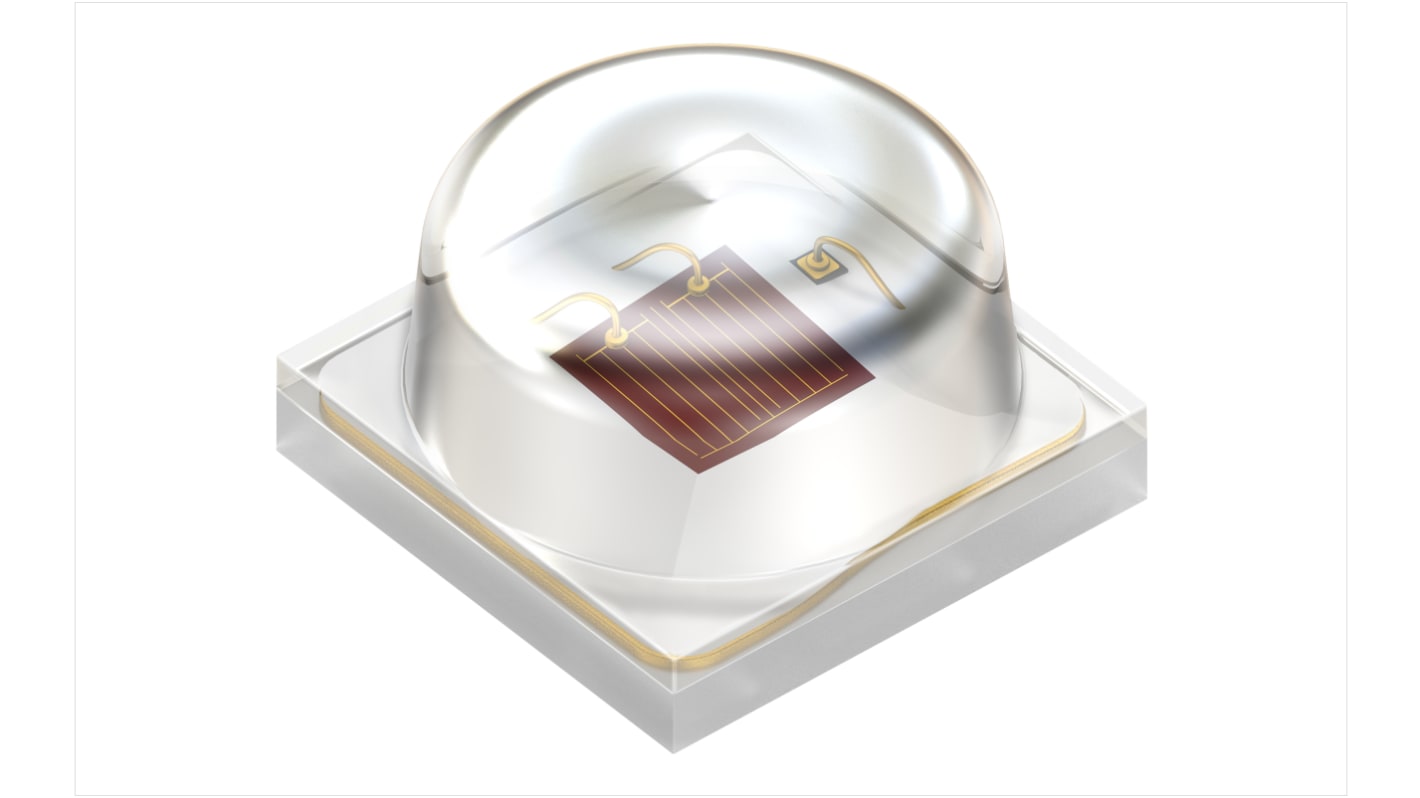

ams OSRAM2.8 → 3.2 V Blue High-Power LED SMT Ceramic SMD, OSLON Square GD CSBRM2.14-ARAK-24-1-700-R33
- RS Stock No.:
- 234-1887
- Mfr. Part No.:
- GD CSBRM2.14-ARAK-24-1-700-R33
- Brand:
- ams OSRAM
Save 1% when you buy 6000 units
Subtotal (1 reel of 3000 units)*
£1,485.00
(exc. VAT)
£1,782.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 6,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
3000 - 3000 | £0.495 | £1,485.00 |
6000 + | £0.486 | £1,458.00 |
*price indicative
- RS Stock No.:
- 234-1887
- Mfr. Part No.:
- GD CSBRM2.14-ARAK-24-1-700-R33
- Brand:
- ams OSRAM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ams OSRAM | |
LED Colours | Blue | |
Package Type | SMT Ceramic | |
Mounting Type | Surface Mount | |
Number of LEDs | 1 | |
Forward Voltage | 2.8 → 3.2 V | |
Series | OSLON Square | |
Select all | ||
---|---|---|
Brand ams OSRAM | ||
LED Colours Blue | ||
Package Type SMT Ceramic | ||
Mounting Type Surface Mount | ||
Number of LEDs 1 | ||
Forward Voltage 2.8 → 3.2 V | ||
Series OSLON Square | ||
- COO (Country of Origin):
- CN
The OSRAM Opto Semiconductors is high-power LED provides excellent reliability, long lifetime and low thermal resistance in a compact footprint. The forward voltage range for this LED is 2.80 - 3.20 V. This square deep blue latest offering comes with a unique innovative radiation pattern, designed to illuminate plants evenly for uniform growth while reducing number of luminaires and lowering overall cost. The approximate weight of this LED is 23 milligram. Peak wavelength is 445 nm at forward current of 700 mA and the ESD withstand voltage is 8 kV. This LED is used for various applications like Architecture, Horticulture lighting.
Package type is SMD ceramic package with silicone lens
High-power LED with excellent reliability
Typ. radiation is 150 degree
Corrosion robustness class is 3B
ESD withstand voltage is 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
Radiant flux is typ. 1490 mW at 700mA , typ. 785 mW at 350mA
Radiant efficiency is typ. 73% at 700mA, typ. 80% at 350mA
High-power LED with excellent reliability
Typ. radiation is 150 degree
Corrosion robustness class is 3B
ESD withstand voltage is 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
Radiant flux is typ. 1490 mW at 700mA , typ. 785 mW at 350mA
Radiant efficiency is typ. 73% at 700mA, typ. 80% at 350mA
