ams OSRAM1.8 → 2.2 V Hyper Red High-Power LED SMT Ceramic SMD, OSLON Square GH CSBRM4.24-V7V9-1-1-700-R33
- RS Stock No.:
- 234-1894
- Mfr. Part No.:
- GH CSBRM4.24-V7V9-1-1-700-R33
- Brand:
- ams OSRAM
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 234-1894
- Mfr. Part No.:
- GH CSBRM4.24-V7V9-1-1-700-R33
- Brand:
- ams OSRAM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ams OSRAM | |
LED Colours | Hyper Red | |
Package Type | SMT Ceramic | |
Mounting Type | Surface Mount | |
Number of LEDs | 1 | |
Forward Voltage | 1.8 → 2.2 V | |
Series | OSLON Square | |
Select all | ||
---|---|---|
Brand ams OSRAM | ||
LED Colours Hyper Red | ||
Package Type SMT Ceramic | ||
Mounting Type Surface Mount | ||
Number of LEDs 1 | ||
Forward Voltage 1.8 → 2.2 V | ||
Series OSLON Square | ||
- COO (Country of Origin):
- CN

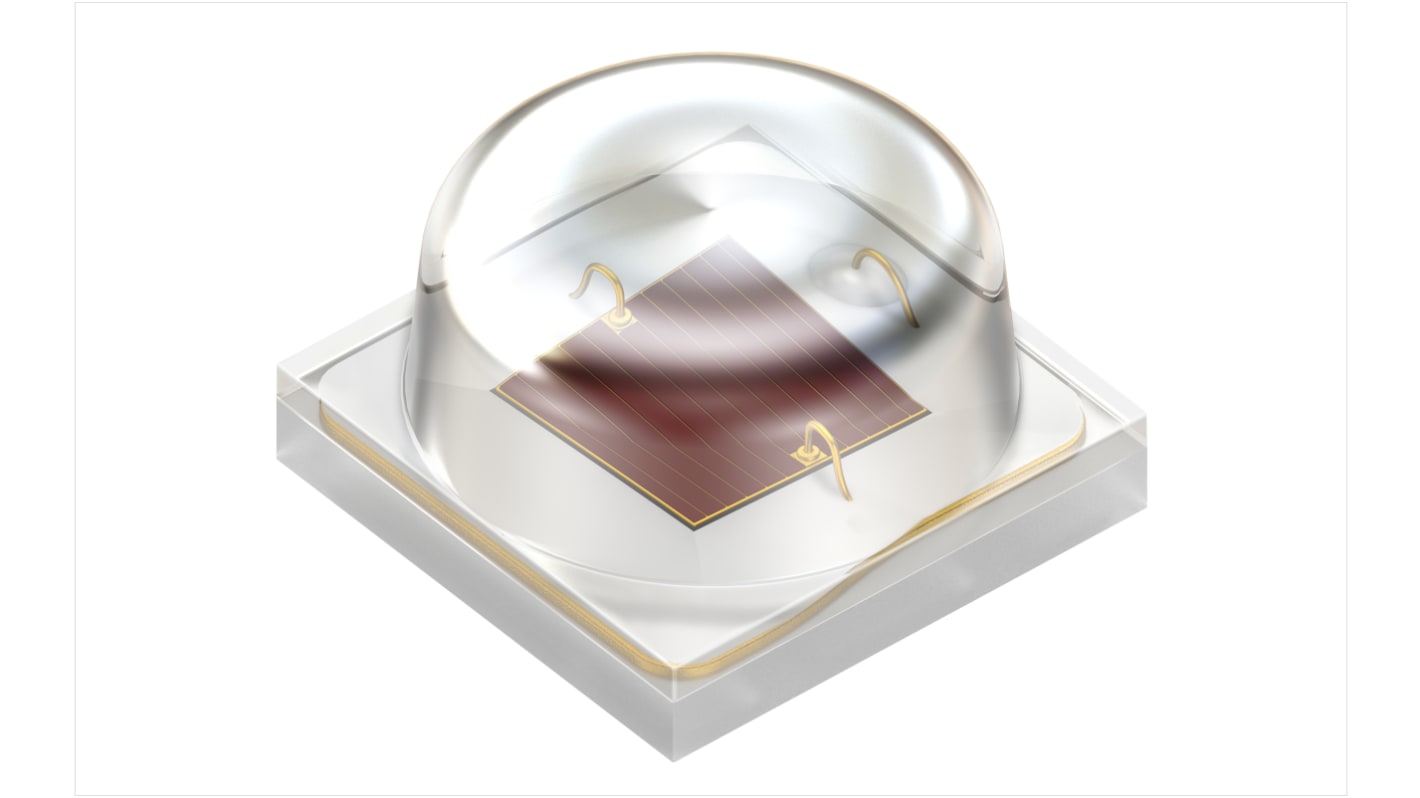

The OSRAM Opto Semiconductors is a square hyper red with best value for highest PPF/W. Most compact high-power LED with proven robustness, high reliability, long lifetime and low thermal resistance. The approximate weight of this LED is 28 milligram. This LED is used for various applications like Architecture, Horticulture lighting.
Package type is SMT ceramic package with silicone lens
Typ. radiation is 120 degree (Lambertian emitter)
ESD withstand voltage is 8 kV according to ANSI/ESDA/JEDEC JS-001 (HBM, class 3B)
Radiant flux is typ. 1045 mW at 700mA, typ. 530 mW at 350mA
Radiant efficiency is typ. 74% at 700mA, typ. 81% at 350mA
Typ. radiation is 120 degree (Lambertian emitter)
ESD withstand voltage is 8 kV according to ANSI/ESDA/JEDEC JS-001 (HBM, class 3B)
Radiant flux is typ. 1045 mW at 700mA, typ. 530 mW at 350mA
Radiant efficiency is typ. 74% at 700mA, typ. 81% at 350mA
