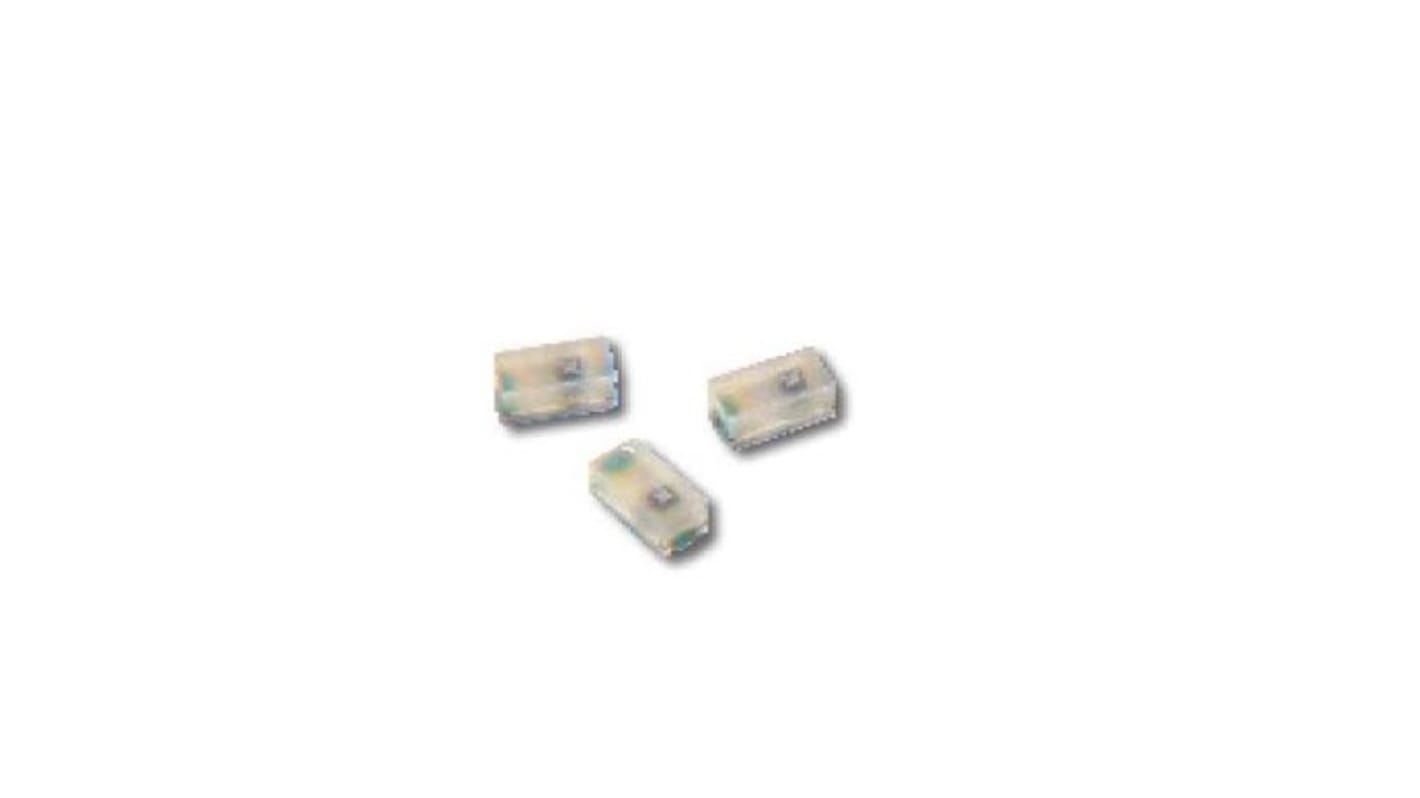

Broadcom 2.4 V Amber LED 0402 Surface HSM HSMA-C280
- RS Stock No.:
- 230-5356
- Mfr. Part No.:
- HSMA-C280
- Brand:
- Broadcom
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 25 units)*
£6.50
(exc. VAT)
£7.75
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 24,800 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 25 | £0.26 | £6.50 |
| 50 - 75 | £0.254 | £6.35 |
| 100 - 475 | £0.151 | £3.78 |
| 500 - 1975 | £0.148 | £3.70 |
| 2000 + | £0.108 | £2.70 |
*price indicative
- RS Stock No.:
- 230-5356
- Mfr. Part No.:
- HSMA-C280
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Product Type | LED | |
| LED Colour | Amber | |
| Package Type | 0402 | |
| Maximum Forward Current | 20mA | |
| Mount Type | Surface | |
| Packaging | Tape & Reel | |
| Maximum Power Dissipation | 52mW | |
| Forward Voltage | 2.4V | |
| Number of Pins | 2 | |
| Viewing Angle | 130 ° | |
| LED Luminosity | 90 mcd | |
| Lens Dimensions | 1 x 0.5 mm | |
| Lens Shape | Rectangular | |
| Dominant Wavelength | 592nm | |
| Standards/Approvals | RoHS | |
| Series | HSM | |
| Lens Colour | Clear | |
| Lens Finish | Clear | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Broadcom | ||
Product Type LED | ||
LED Colour Amber | ||
Package Type 0402 | ||
Maximum Forward Current 20mA | ||
Mount Type Surface | ||
Packaging Tape & Reel | ||
Maximum Power Dissipation 52mW | ||
Forward Voltage 2.4V | ||
Number of Pins 2 | ||
Viewing Angle 130 ° | ||
LED Luminosity 90 mcd | ||
Lens Dimensions 1 x 0.5 mm | ||
Lens Shape Rectangular | ||
Dominant Wavelength 592nm | ||
Standards/Approvals RoHS | ||
Series HSM | ||
Lens Colour Clear | ||
Lens Finish Clear | ||
Automotive Standard No | ||
- COO (Country of Origin):
- TW
The Broadcom HSMx series LED are designed to 0402 (1.0 x 0.5 mm) industry standard footprint. They are extremely small in size and the low 0.4 mm height makes them very suitable for application in small portable hand held devices where real estate is a premium.
Diffused optics
Operating temperature ranges from –40°C to +85°C
Compatible with IR soldering
Available in 8 mm paper tape on 7" diameter reel
Reel sealed in zip locked moisture barrier bags
