Broadcom 2.4 V Amber, Red, Orange LED Ammo Through Hole HLMP-E HLMP-EG1T-Z20DD
- RS Stock No.:
- 146-6175
- Mfr. Part No.:
- HLMP-EG1T-Z20DD
- Brand:
- Broadcom
Bulk discount available
Subtotal (1 pack of 25 units)*
£14.575
(exc. VAT)
£17.50
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Plus 25 unit(s) shipping from 13 April 2026
- Final 225 unit(s) shipping from 20 April 2026
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 100 | £0.583 | £14.58 |
| 125 - 225 | £0.524 | £13.10 |
| 250 - 475 | £0.466 | £11.65 |
| 500 - 975 | £0.438 | £10.95 |
| 1000 + | £0.409 | £10.23 |
*price indicative
- RS Stock No.:
- 146-6175
- Mfr. Part No.:
- HLMP-EG1T-Z20DD
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| LED Colour | Amber, Red, Orange | |
| Product Type | LED | |
| Package Type | Ammo | |
| Maximum Forward Current | 100mA | |
| Mount Type | Through Hole | |
| Forward Voltage | 2.4V | |
| Maximum Power Dissipation | 120mW | |
| Number of Pins | 2 | |
| Viewing Angle | 15 ° | |
| Lens Shape | Round | |
| Dominant Wavelength | 621nm | |
| Standards/Approvals | RoHS Compliant | |
| Lens Finish | Untinted | |
| Lens Colour | Red | |
| Series | HLMP-E | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Broadcom | ||
LED Colour Amber, Red, Orange | ||
Product Type LED | ||
Package Type Ammo | ||
Maximum Forward Current 100mA | ||
Mount Type Through Hole | ||
Forward Voltage 2.4V | ||
Maximum Power Dissipation 120mW | ||
Number of Pins 2 | ||
Viewing Angle 15 ° | ||
Lens Shape Round | ||
Dominant Wavelength 621nm | ||
Standards/Approvals RoHS Compliant | ||
Lens Finish Untinted | ||
Lens Colour Red | ||
Series HLMP-E | ||
Automotive Standard No | ||

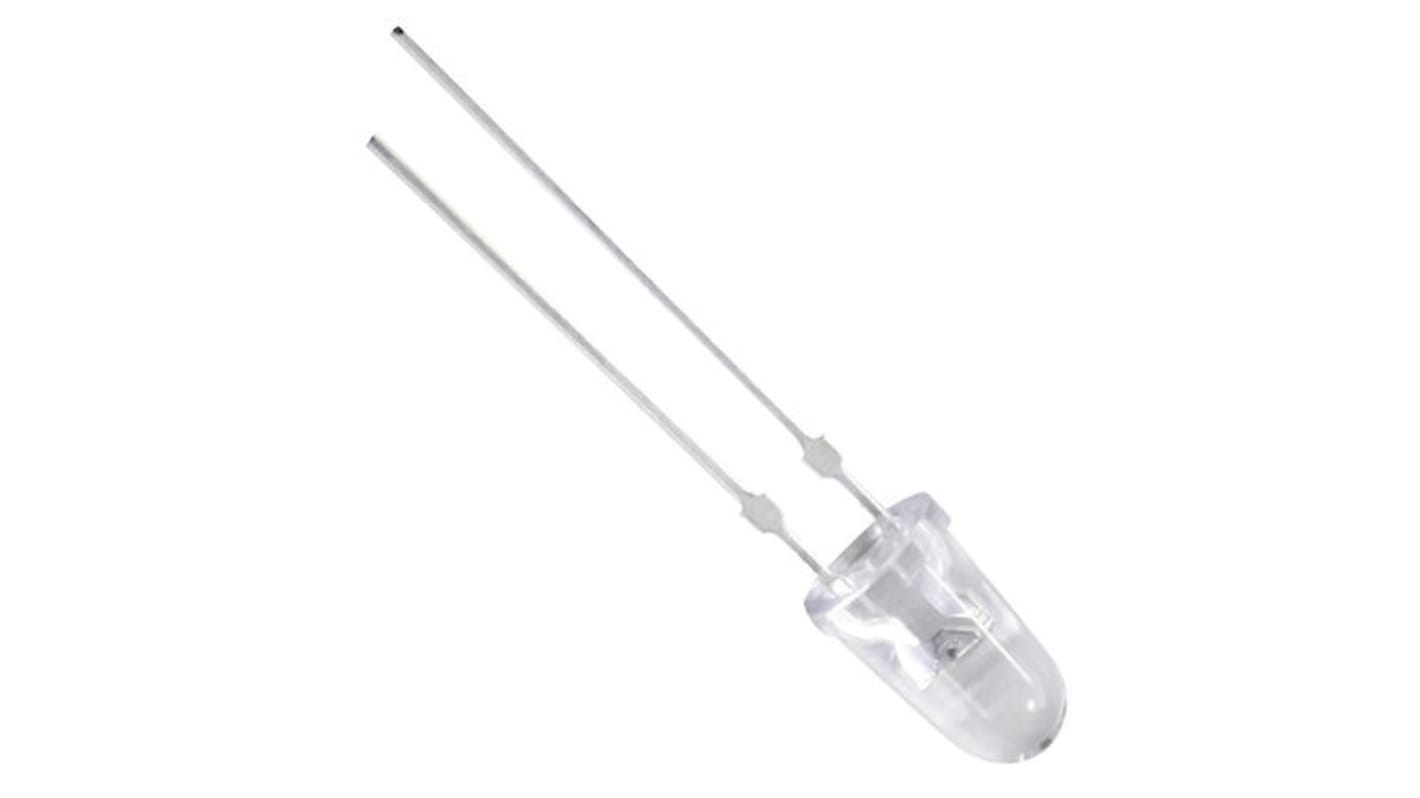

The Broadcom Precision Optical Performance AlInGaP LEDs provide superior light output for excellent readability in sunlight and are extremely reliable. AlInGaP LED technology provides extremely stable light output over long periods of time. Precision Optical Performance lamps utilize the aluminium indium gallium phosphide (AlInGaP) technology. These LED lamps are untinted, T-1¾ packages incorporating second generation optics producing well defined spatial radiation patterns at specific viewing cone angles.
Viewing angle: 15°, 23°, 30°
High luminous output
Colours: 590nm Amber,615nm Red Orange, 626nm Red
Package options: With or without lead standoff
Superior resistance to moisture
Untinted for 15°, 23° and 30° lamps
