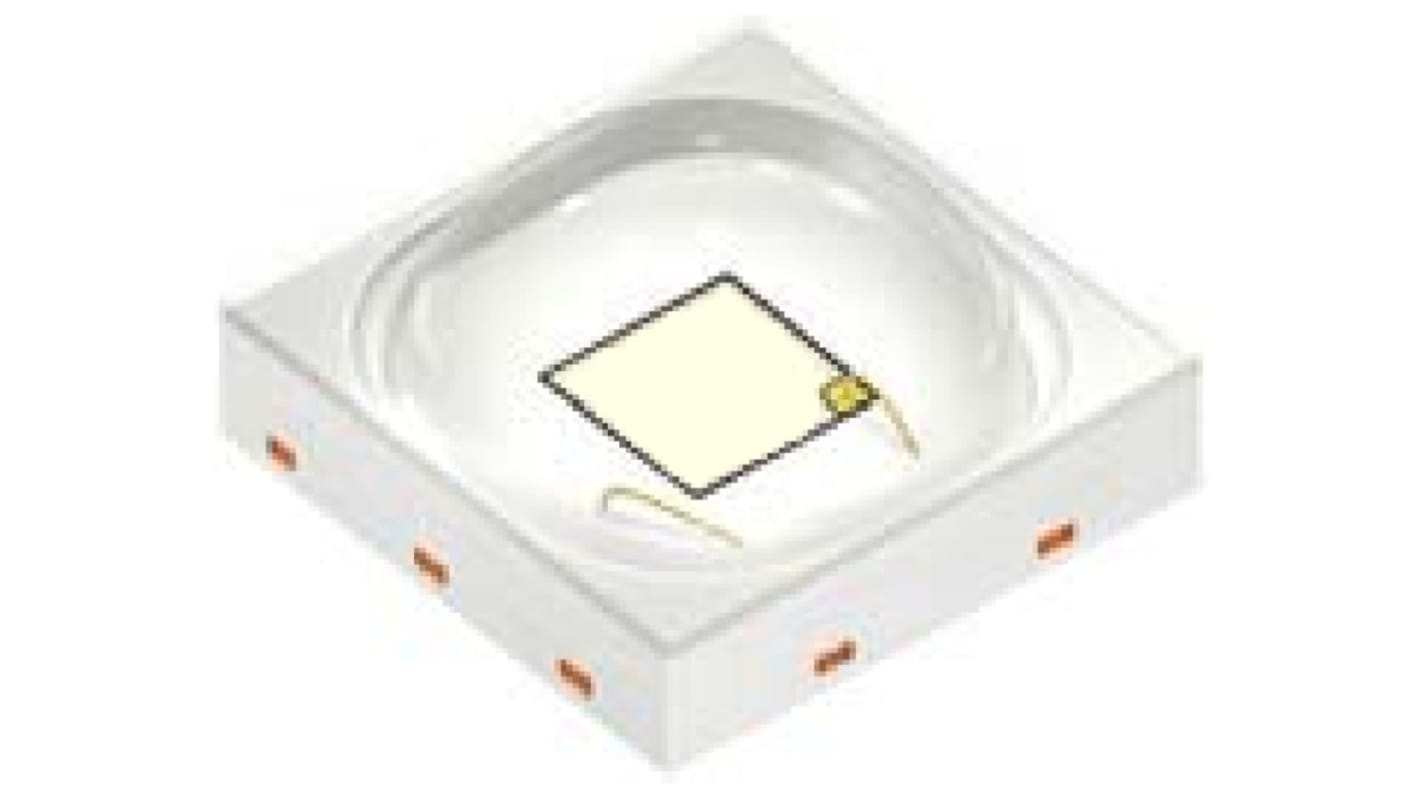

ams OSRAM 2.7 V Green LED Surface OSCONIQ P 3030 GT QSSPA1.13-LSLU-T1T6-1
- RS Stock No.:
- 224-9944
- Mfr. Part No.:
- GT QSSPA1.13-LSLU-T1T6-1
- Brand:
- ams OSRAM
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 224-9944
- Mfr. Part No.:
- GT QSSPA1.13-LSLU-T1T6-1
- Brand:
- ams OSRAM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ams OSRAM | |
| LED Colour | Green | |
| Product Type | LED | |
| Maximum Forward Current | 1300mA | |
| Mount Type | Surface | |
| Packaging | Tape & Reel | |
| Forward Voltage | 2.7V | |
| Number of Pins | 2 | |
| Viewing Angle | 120 ° | |
| Lens Dimensions | 2.6 x 1.63 mm | |
| LED Luminous Flux | 150 lm | |
| Lens Shape | Dome | |
| Standards/Approvals | RoHS | |
| Dominant Wavelength | 528nm | |
| Lens Finish | Clear | |
| Series | OSCONIQ P 3030 | |
| Lens Colour | Clear | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ams OSRAM | ||
LED Colour Green | ||
Product Type LED | ||
Maximum Forward Current 1300mA | ||
Mount Type Surface | ||
Packaging Tape & Reel | ||
Forward Voltage 2.7V | ||
Number of Pins 2 | ||
Viewing Angle 120 ° | ||
Lens Dimensions 2.6 x 1.63 mm | ||
LED Luminous Flux 150 lm | ||
Lens Shape Dome | ||
Standards/Approvals RoHS | ||
Dominant Wavelength 528nm | ||
Lens Finish Clear | ||
Series OSCONIQ P 3030 | ||
Lens Colour Clear | ||
Automotive Standard No | ||
The OSRAM Opto Semiconductors green LED comes with well known superior robustness, high reliability, long lifetime, low thermal resistance. It is a compact and proven 3mm x 3mm package and established footprint. It is use in architecture or garden lighting, medical illumination, photo therapy and stage lighting. It belongs to 3B corrosion robustness class and typically it has 159 lm/W luminous efficacy.
It is SMD epoxy package
Typically it has 120° radiation
It has operating temperature from -40 °C to 125 °C
