Broadcom 2.6 V RGB LED PLCC Surface ASMB-MTB ASMB-MTB0-0B3A2
- RS Stock No.:
- 220-7151
- Mfr. Part No.:
- ASMB-MTB0-0B3A2
- Brand:
- Broadcom
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 10 units)*
£4.79
(exc. VAT)
£5.75
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 320 unit(s) shipping from 03 August 2026
- Plus 25,580 unit(s) shipping from 10 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 90 | £0.479 | £4.79 |
| 100 - 240 | £0.27 | £2.70 |
| 250 - 490 | £0.237 | £2.37 |
| 500 - 990 | £0.209 | £2.09 |
| 1000 + | £0.203 | £2.03 |
*price indicative
- RS Stock No.:
- 220-7151
- Mfr. Part No.:
- ASMB-MTB0-0B3A2
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| LED Colour | Red, Green, Blue | |
| Product Type | LED | |
| Package Type | PLCC | |
| Maximum Forward Current | 25mA | |
| Packaging | Tape & Reel | |
| Mount Type | Surface | |
| Number of LEDs | 3 | |
| Forward Voltage | 2.6V | |
| Maximum Power Dissipation | 90mW | |
| Number of Pins | 4 | |
| Viewing Angle | 115 ° | |
| Standards/Approvals | JEDEC MSL 3 | |
| Series | ASMB-MTB | |
| Lens Colour | Surface: Black | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Broadcom | ||
LED Colour Red, Green, Blue | ||
Product Type LED | ||
Package Type PLCC | ||
Maximum Forward Current 25mA | ||
Packaging Tape & Reel | ||
Mount Type Surface | ||
Number of LEDs 3 | ||
Forward Voltage 2.6V | ||
Maximum Power Dissipation 90mW | ||
Number of Pins 4 | ||
Viewing Angle 115 ° | ||
Standards/Approvals JEDEC MSL 3 | ||
Series ASMB-MTB | ||
Lens Colour Surface: Black | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN

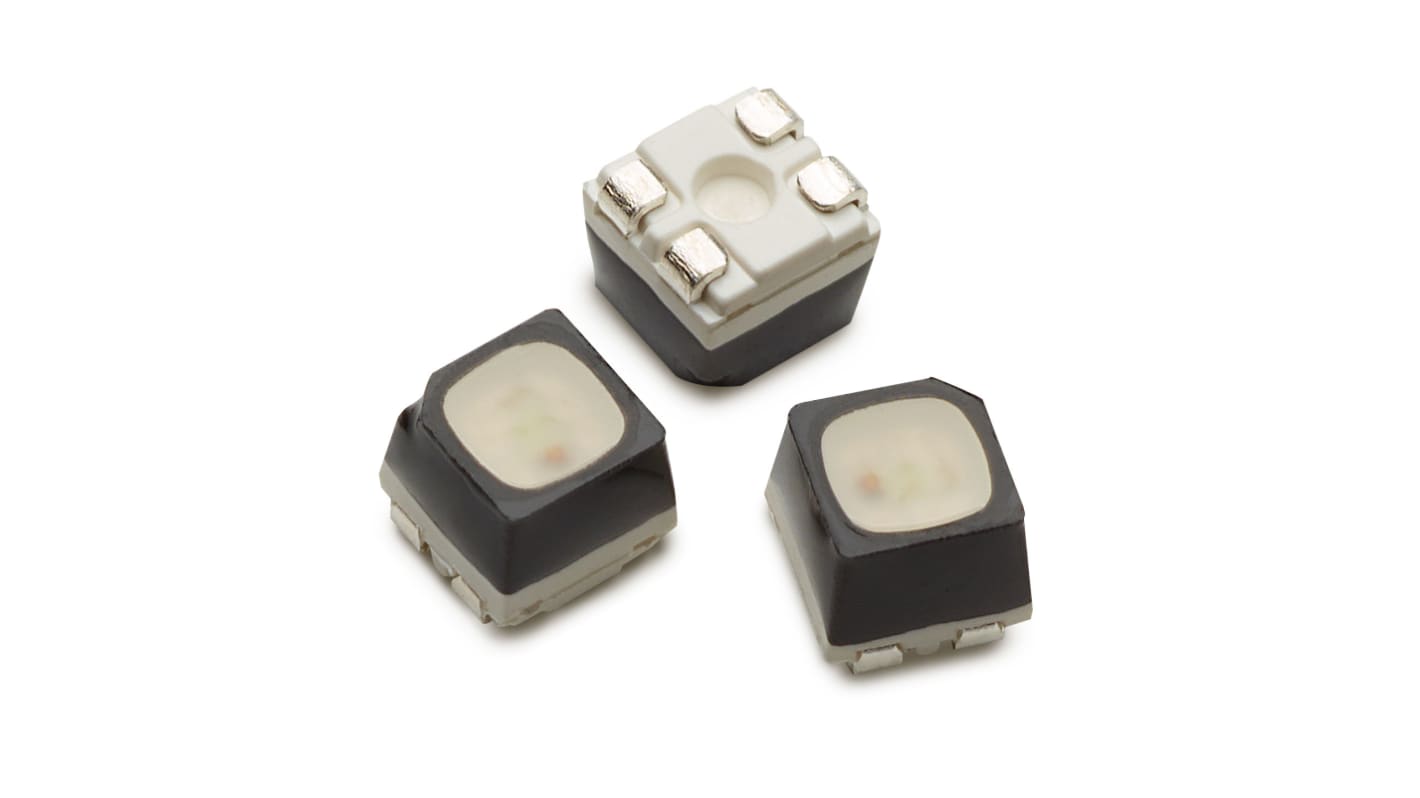

The Broadcom SMT LEDs are in PLCC-4 package. A wide viewing angle together with the built in reflector drives up the intensity of light output making these LEDs suitable for use in interior electronic signs. The black top surface of the LED provide better contrast enhancement, especially in full colour display. It is compatible with reflow soldering process.
LED package with diffused silicone encapsulation
Using AlInGaP and InGaN dice technologies
Typical viewing angle at 115°
