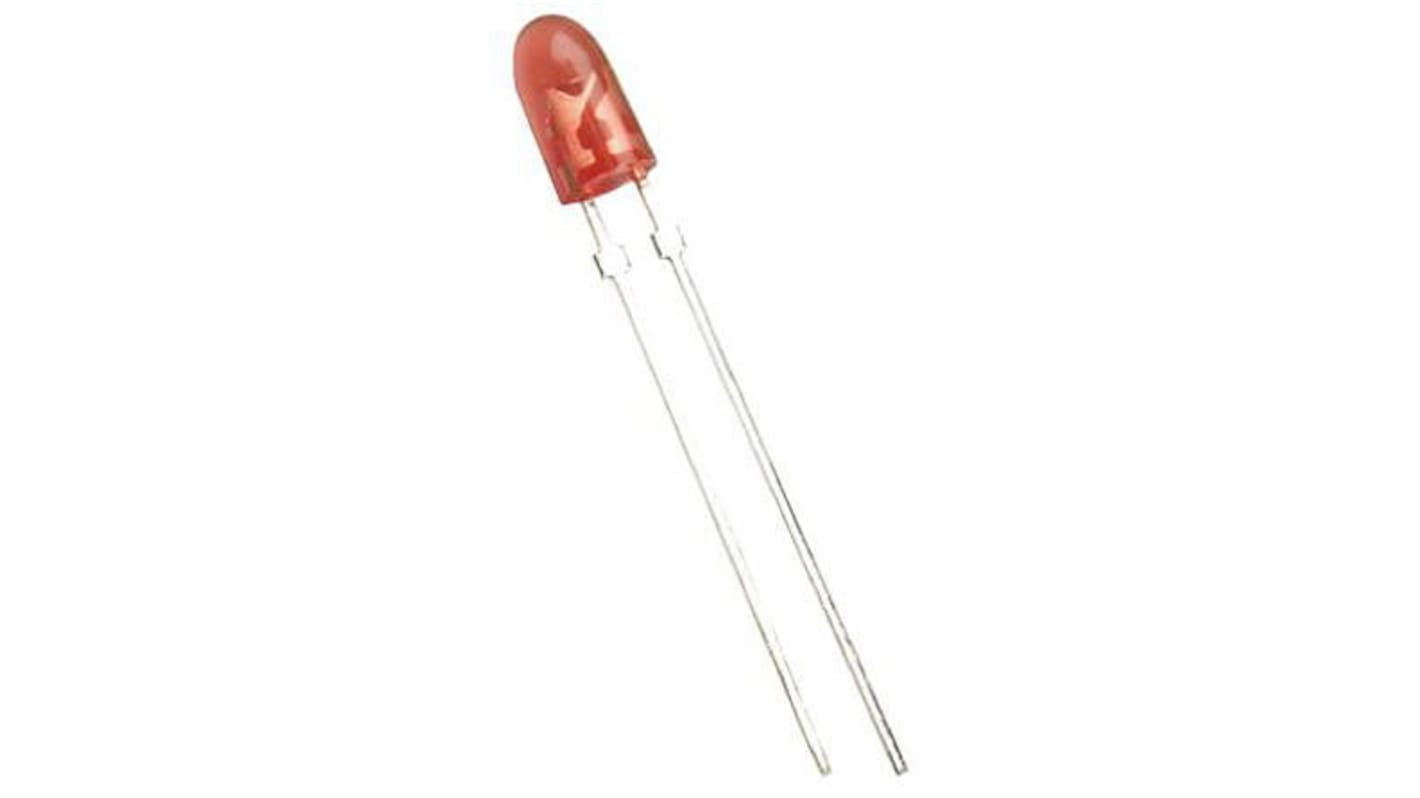

Broadcom 2.4 V Red LED 5 mm (T-1 3/4) Through Hole HLMP HLMP-AG71-Z20DD
- RS Stock No.:
- 146-6163
- Mfr. Part No.:
- HLMP-AG71-Z20DD
- Brand:
- Broadcom
Bulk discount available
Subtotal (1 pack of 25 units)*
£14.50
(exc. VAT)
£17.50
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2,500 unit(s) ready to ship
- Plus 14,000 unit(s) shipping from 01 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 100 | £0.58 | £14.50 |
| 125 - 225 | £0.378 | £9.45 |
| 250 - 475 | £0.366 | £9.15 |
| 500 - 975 | £0.352 | £8.80 |
| 1000 + | £0.296 | £7.40 |
*price indicative
- RS Stock No.:
- 146-6163
- Mfr. Part No.:
- HLMP-AG71-Z20DD
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Product Type | LED | |
| LED Colour | Red | |
| Maximum Forward Current | 100mA | |
| Package Type | 5 mm (T-1 3/4) | |
| Packaging | Ammo | |
| Mount Type | Through Hole | |
| Maximum Power Dissipation | 120mW | |
| Forward Voltage | 2.4V | |
| Number of Pins | 2 | |
| Viewing Angle | 30 x 70 ° | |
| Lens Dimensions | 8.7 x 5.2 mm | |
| LED Luminosity | 4200 mcd | |
| Lens Shape | Oval | |
| Standards/Approvals | RoHS | |
| Lens Colour | Red | |
| Lens Finish | Diffused, Tinted | |
| Series | HLMP | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Broadcom | ||
Product Type LED | ||
LED Colour Red | ||
Maximum Forward Current 100mA | ||
Package Type 5 mm (T-1 3/4) | ||
Packaging Ammo | ||
Mount Type Through Hole | ||
Maximum Power Dissipation 120mW | ||
Forward Voltage 2.4V | ||
Number of Pins 2 | ||
Viewing Angle 30 x 70 ° | ||
Lens Dimensions 8.7 x 5.2 mm | ||
LED Luminosity 4200 mcd | ||
Lens Shape Oval | ||
Standards/Approvals RoHS | ||
Lens Colour Red | ||
Lens Finish Diffused, Tinted | ||
Series HLMP | ||
Automotive Standard No | ||
The Broadcom Precision Optical Performance Oval LEDs are specifically designed for full colour/video and passenger information signs. The oval shaped radiation pattern and high luminous intensity ensure that these devices are excellent for wide field of view outdoor applications where a wide viewing angle and readability in sunlight are essential. The package epoxy contains UV inhibitors to reduce the effects of long term exposure to direct sunlight.
Well defined spatial radiation pattern
High brightness material
Available in Red and Amber
– Red AlInGaP 626 nm
– Amber AlInGaP 590 nm
Superior resistance to moisture
Standoff and non-standoff Package
Tinted and diffused
Typical viewing angle 30° x 70°
