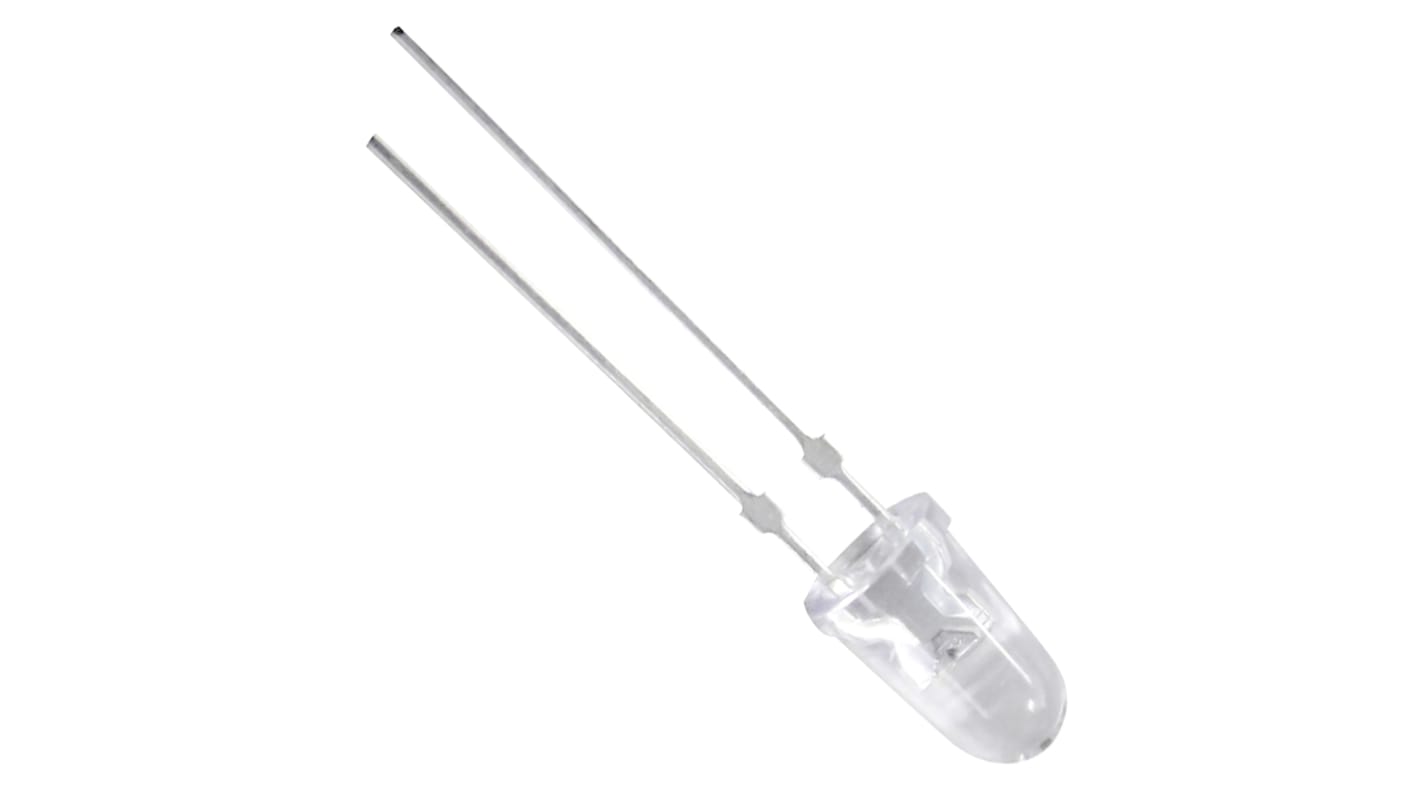

Broadcom2.4 V Red LED 5mm Through Hole, HLMP-EG1G-Y10DD
- RS Stock No.:
- 912-0585
- Mfr. Part No.:
- HLMP-EG1G-Y10DD
- Brand:
- Broadcom
Bulk discount available
Subtotal (1 pack of 20 units)*
£8.58
(exc. VAT)
£10.30
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,000 unit(s) ready to ship
- Plus 380 unit(s) ready to ship from another location
- Plus 380 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
20 - 80 | £0.429 | £8.58 |
100 - 180 | £0.306 | £6.12 |
200 - 480 | £0.27 | £5.40 |
500 - 980 | £0.234 | £4.68 |
1000 + | £0.194 | £3.88 |
*price indicative
- RS Stock No.:
- 912-0585
- Mfr. Part No.:
- HLMP-EG1G-Y10DD
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Broadcom | |
LED Colours | Red | |
Package Type | 5mm (T-1 3/4) | |
Mounting Type | Through Hole | |
Number of LEDs | 1 | |
Forward Voltage | 2.4 V | |
Luminous Intensity | 21000 mcd | |
Number of Pins | 2 | |
Viewing Angle | 15 ° | |
Luminous Flux | 490 lm/W | |
Lens Shape | Oval | |
Dominant Wavelength | 626 nm | |
Forward Current | 50mA | |
Dimensions | 5 (Dia.) x 8.71mm | |
Lens Finish | Untinted | |
Select all | ||
---|---|---|
Brand Broadcom | ||
LED Colours Red | ||
Package Type 5mm (T-1 3/4) | ||
Mounting Type Through Hole | ||
Number of LEDs 1 | ||
Forward Voltage 2.4 V | ||
Luminous Intensity 21000 mcd | ||
Number of Pins 2 | ||
Viewing Angle 15 ° | ||
Luminous Flux 490 lm/W | ||
Lens Shape Oval | ||
Dominant Wavelength 626 nm | ||
Forward Current 50mA | ||
Dimensions 5 (Dia.) x 8.71mm | ||
Lens Finish Untinted | ||
Avago HLMP-ED/EG/EH/EL Series LEDs
The HLMP-EDxx, HLMP-EGxx, HLMP-EHxx and HLMP-ELxx series, from Avago Technologies, are extra high brightness LED lamps. This family of precision optical performance AllnGaP LEDs offer a high light output for readability in sunlight. They are also very reliable. The AllnGaP technology enables these LEDs to provide a stable light output over long periods of time.
The HLMP-ED/EG/EH/EL series are untinted LED lamps in T-1 3/4 (5mm) packages incorporating second generation optics. This produces a well defined spatial radiation pattern at specific viewing cone angles.
Made from an optical grade epoxy, the HLMP-ED/EG/EH/EL LEDs offer high temperature and high moisture resistance performance in outdoor signal and sign applications. It contains both uv-a and uv-b inhibitors to reduce the effects of long term exposure to direct sunlight.
Suitable applications for the HLMP-ED/EG/EH/EL include; traffic management, solar power signs and commercial outdoor advertising.
The HLMP-ED/EG/EH/EL series are untinted LED lamps in T-1 3/4 (5mm) packages incorporating second generation optics. This produces a well defined spatial radiation pattern at specific viewing cone angles.
Made from an optical grade epoxy, the HLMP-ED/EG/EH/EL LEDs offer high temperature and high moisture resistance performance in outdoor signal and sign applications. It contains both uv-a and uv-b inhibitors to reduce the effects of long term exposure to direct sunlight.
Suitable applications for the HLMP-ED/EG/EH/EL include; traffic management, solar power signs and commercial outdoor advertising.
Features of the HLMP-ED/EG/EH/EL LEDs:
- Viewing angle: 15°, 23°, 30°
- High luminous output
- Superior resistance to moisture
- Viewing angle: 15°, 23°, 30°
- High luminous output
- Superior resistance to moisture
Visible Light LEDs, Avago Technologies
