Intelligent LED Solutions 13 V White LED Screw OSLON Signal ILH-SG04-SIWH-SC221-WIR200.
- RS Stock No.:
- 283-194
- Mfr. Part No.:
- ILH-SG04-SIWH-SC221-WIR200.
- Brand:
- Intelligent LED Solutions
Bulk discount available
Subtotal (1 unit)*
£10.51
(exc. VAT)
£12.61
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 9 | £10.51 |
| 10 - 99 | £9.46 |
| 100 + | £8.72 |
*price indicative
- RS Stock No.:
- 283-194
- Mfr. Part No.:
- ILH-SG04-SIWH-SC221-WIR200.
- Brand:
- Intelligent LED Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Intelligent LED Solutions | |
| LED Colour | White | |
| Product Type | LED | |
| Maximum Forward Current | 1200mA | |
| Mount Type | Screw | |
| Number of LEDs | 4 | |
| Maximum Power Dissipation | 75mW | |
| Forward Voltage | 13V | |
| Viewing Angle | 110° (±55°) | |
| Standards/Approvals | RoHS, IEC 62471:2006, IEC 61547 and IEC 61000-3-2 -ENEC: 61374-2-13 and IEC/EN 62384, CE: EC61374-2-13, EN 55015 | |
| Series | OSLON Signal | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Intelligent LED Solutions | ||
LED Colour White | ||
Product Type LED | ||
Maximum Forward Current 1200mA | ||
Mount Type Screw | ||
Number of LEDs 4 | ||
Maximum Power Dissipation 75mW | ||
Forward Voltage 13V | ||
Viewing Angle 110° (±55°) | ||
Standards/Approvals RoHS, IEC 62471:2006, IEC 61547 and IEC 61000-3-2 -ENEC: 61374-2-13 and IEC/EN 62384, CE: EC61374-2-13, EN 55015 | ||
Series OSLON Signal | ||
Automotive Standard No | ||
- COO (Country of Origin):
- GB

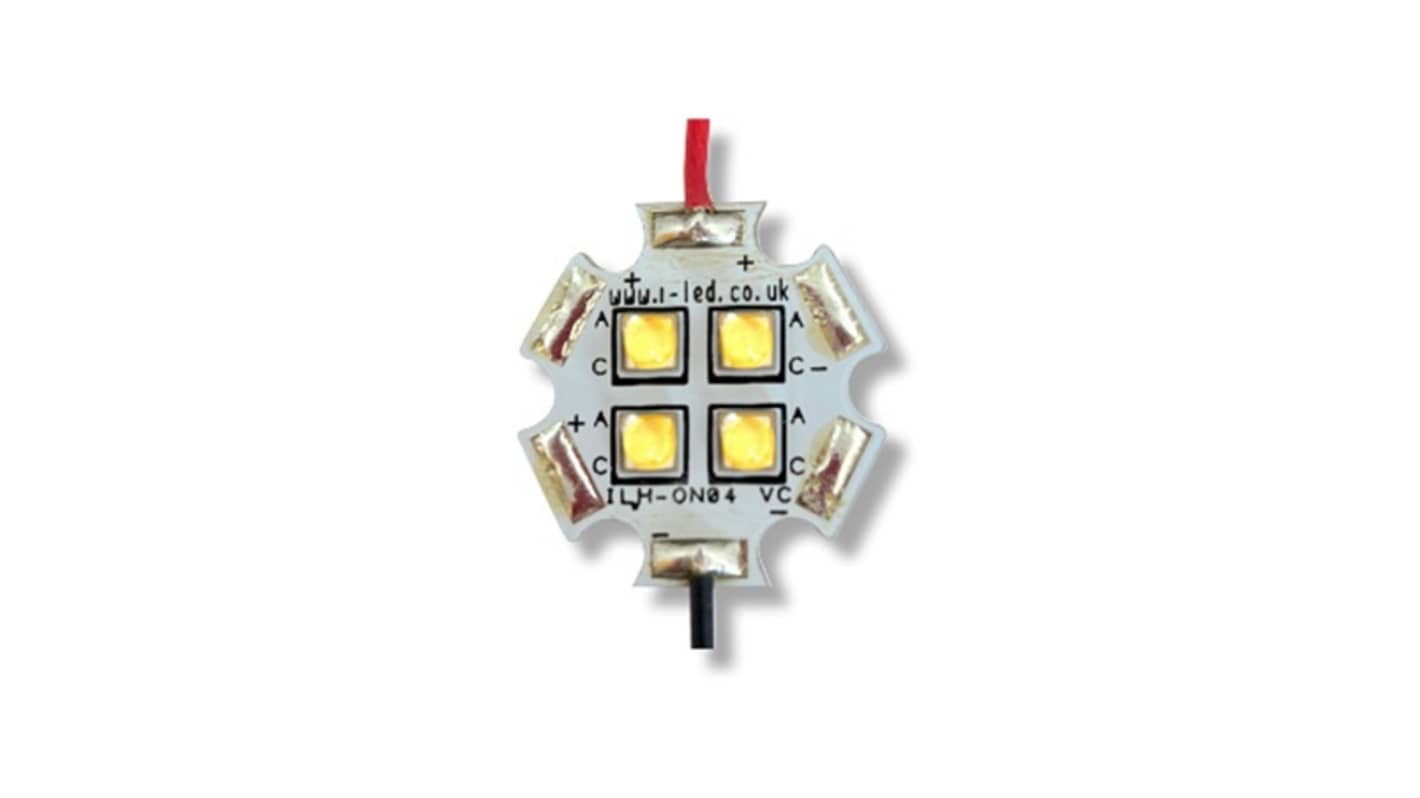

The Intelligent LED Solutions PowerStar are 4 OSLON Signal Gen 2 UX:3 LED. OSLON Signal can be driven up to 1200mA (Red 1000mA) while OSRAM’s latest power chip technology remains efficient even at the highest drive currents. A low thermal resistance of 4.1K/W ensures cool running and a highly efficient product.
Up to 100,000 hour lifetime to 70% of original brightness
Mounting holes using M3 screws allow easy installation
