Intelligent LED Solutions 12.4 V Green LED Screw OSLON Signal ILH-SG04-SITG-SC221-WIR200.
- RS Stock No.:
- 283-192
- Mfr. Part No.:
- ILH-SG04-SITG-SC221-WIR200.
- Brand:
- Intelligent LED Solutions
Bulk discount available
Subtotal (1 unit)*
£10.75
(exc. VAT)
£12.90
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 9 | £10.75 |
| 10 - 99 | £9.68 |
| 100 + | £8.93 |
*price indicative
- RS Stock No.:
- 283-192
- Mfr. Part No.:
- ILH-SG04-SITG-SC221-WIR200.
- Brand:
- Intelligent LED Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Intelligent LED Solutions | |
| Product Type | LED | |
| LED Colour | Green | |
| Maximum Forward Current | 1200mA | |
| Mount Type | Screw | |
| Forward Voltage | 12.4V | |
| Number of Pins | 2 | |
| Viewing Angle | 110 ° | |
| LED Luminous Flux | 288 lm | |
| Dominant Wavelength | 528 nm | |
| Standards/Approvals | IEC 62471, CE, IEC 61547, EN 55015, IEC/EN 62384, RoHS, IEC 61000-3-2 -ENEC: 61374-2-13 | |
| Series | OSLON Signal | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Intelligent LED Solutions | ||
Product Type LED | ||
LED Colour Green | ||
Maximum Forward Current 1200mA | ||
Mount Type Screw | ||
Forward Voltage 12.4V | ||
Number of Pins 2 | ||
Viewing Angle 110 ° | ||
LED Luminous Flux 288 lm | ||
Dominant Wavelength 528 nm | ||
Standards/Approvals IEC 62471, CE, IEC 61547, EN 55015, IEC/EN 62384, RoHS, IEC 61000-3-2 -ENEC: 61374-2-13 | ||
Series OSLON Signal | ||
Automotive Standard No | ||
- COO (Country of Origin):
- GB

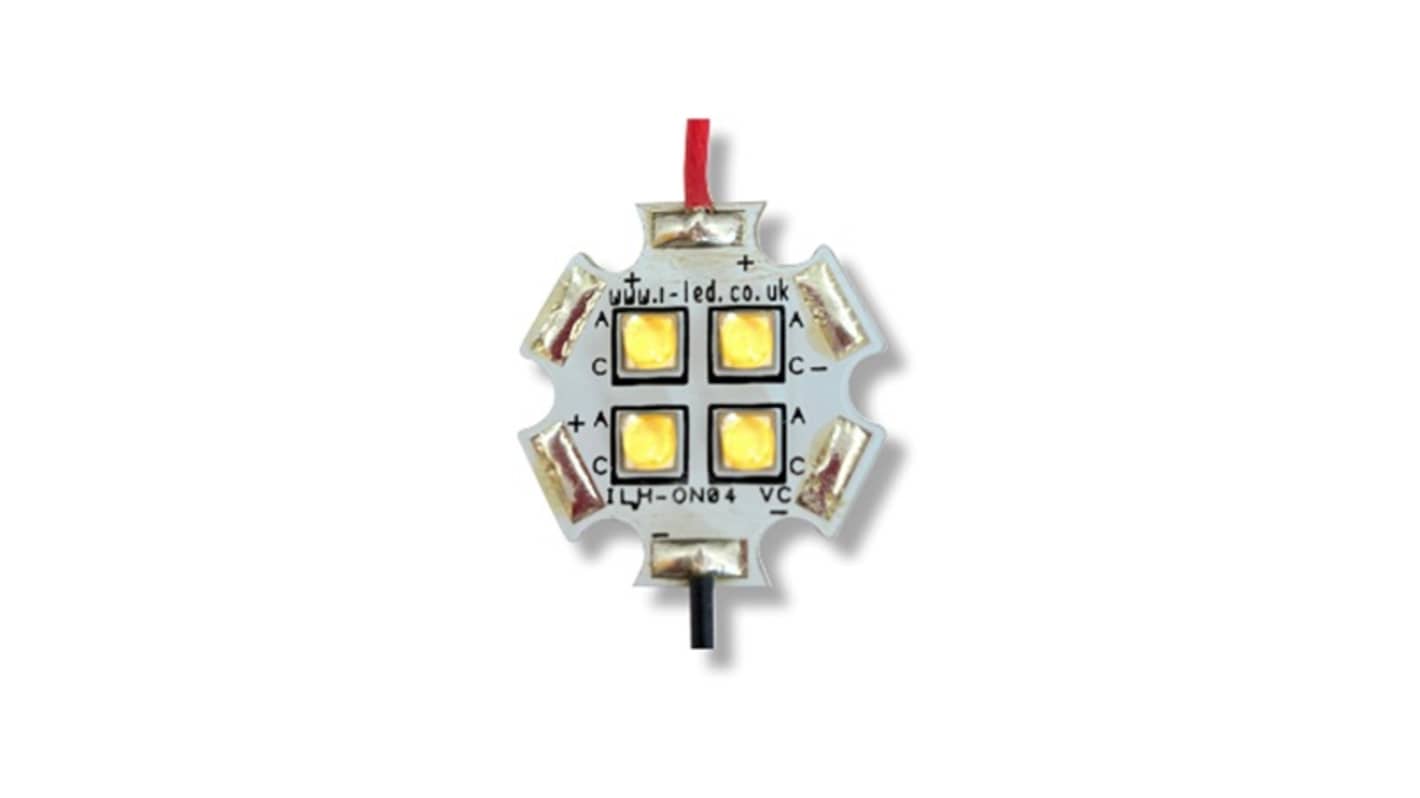

The Intelligent LED Solutions PowerStar are 4 OSLON Signal Gen 2 UX:3 LED. OSLON Signal can be driven up to 1200mA (Red 1000mA) while OSRAM’s latest power chip technology remains efficient even at the highest drive currents. A low thermal resistance of 4.1K/W ensures cool running and a highly efficient product.
Up to 100,000 hour lifetime to 70% of original brightness
Mounting holes using M3 screws allow easy installation
