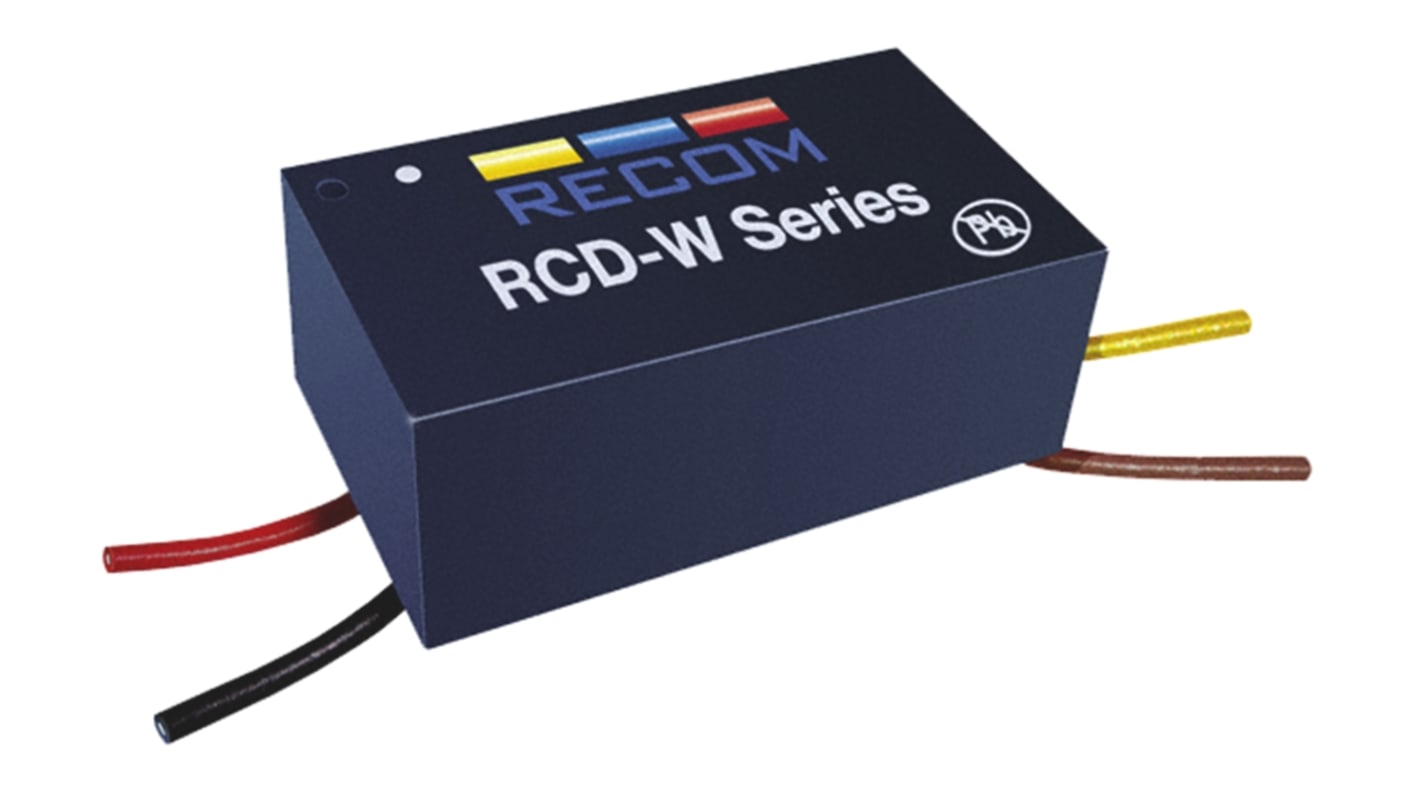

Recom LED Driver, 2 → 35V dc Output, 12W Output, 0 → 350mA Output, Constant Current Dimmable
- RS Stock No.:
- 830-3742
- Mfr. Part No.:
- RCD-24-0.35/W/X1
- Brand:
- Recom
Discontinued product
- RS Stock No.:
- 830-3742
- Mfr. Part No.:
- RCD-24-0.35/W/X1
- Brand:
- Recom
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Recom RCD-24 Constant Current LED Driver - Wired with Analogue and PMW Control
Recom RCD-24 series step-down constant current LED drivers designed for driving high power white LEDs. Despite its compact size, the RCD-24 series is fully featured with very high efficiency, wide input voltage range, high ambient operating temperature and two means of dimming: PWM/digital control and analogue voltage dimming. Both dimming controls are independent and can be combined. The driver is also designed to be as reliable as the LEDs it is driving, even at the full operating temperature.
Features and Benefits
- Non-isolated
- Drives up to ten 2W power LEDs
- Constant current source
- Output current accuracy ±2%, Output current stability ±1%
- Efficiency up to 96%
- Wide input voltage range
- PWM digital and analogue voltage dimming
- Remote On/Off control pin
- 0 to 4Vdc analogue dimming
- Short circuit protection
- Compact package
LED Drivers
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 2 → 35V dc |
| Maximum Output Power | 12W |
| Output Current | 0 → 350mA |
| Dimmable | Yes |
| Input Voltage | 4.5 → 36 V dc |
| Operation | Constant Current |
| LED Driver Type | LED Driver |
| Dimming Operation | 0 to 4.35 V dc, PWM |
| AC or DC Input Voltage | dc |
| IP Rating | IP67 |
| Number of Outputs | 1 |
| Series | RCD-24 |
| Configuration | Enclosed |
| Primary Type | DC-DC |
