MEAN WELL LED Driver, 100 → 200V Output, 100W Output, 500mA Output, Constant Current

RS Stock No.:: 823-4778
Mfr. Part No.:: LPC-100-500
Brand:: MEAN WELL

MEAN WELL LED Driver, 100 → 200V Output, 100W Output, 500mA Output, Constant Current

10 In stock - FREE next working day delivery available

Price Each

£22.79

(exc. VAT)

£27.35

(inc. VAT)

Units	Per unit
1 - 4	£22.79
5 - 9	£22.19
10 - 24	£21.65
25 +	£21.08

RS Stock No.:: 823-4778
Mfr. Part No.:: LPC-100-500
Brand:: MEAN WELL

Technical Reference

Legislation and Compliance

Product Details

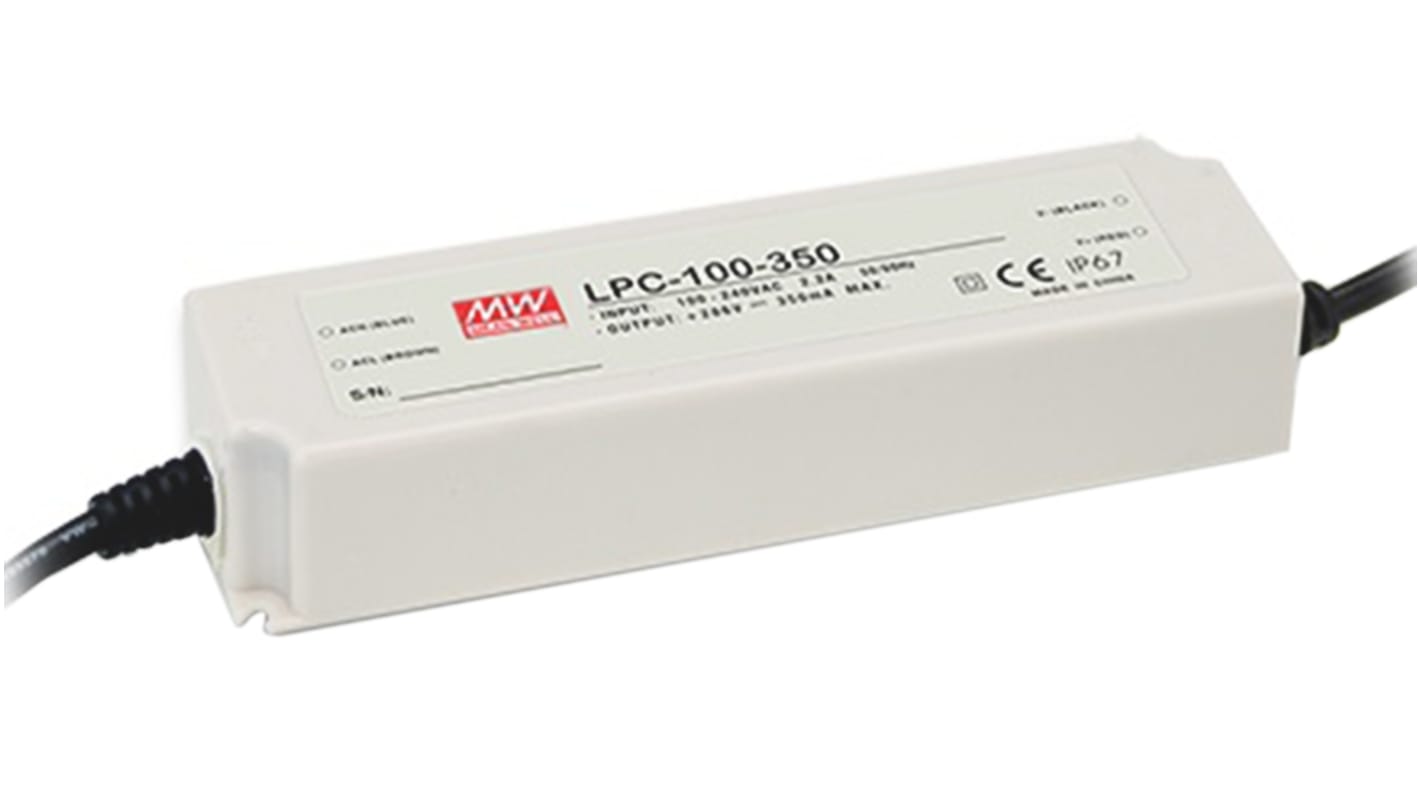

Mean Well 100W IP67 Constant Current LED Driver LPC-100 Series

The Mean Well LPC-100 is a series of high efficiency constant current LED Power supplies. This LED drivers feature universal AC input full range. The LPC-100 possesses up to 90% high efficiency and is cooled by free air convection from -40 to +80°C. This Power supply is also dust-proof and water-proof IP67 rated, it has 2G anti vibration ability and 3kV surge immunity, making it suitable to withstand the dust and moisture of outdoor or indoor harsh environment. These constant current LED drivers are suitable for applications in LED lighting and moving signs.

Constant current design
Universal AC input/full range
Withstand 300Vac surge input for 5 seconds
High efficiency up to 90%
Short circuit and Over voltage protection
Cooling by free air convection
Fully encapsulated with IP67 level
Fully isolated plastic case
Class II power unit, no FG
Suitable for LED lighting and moving sign applications
100% full load burn-in test
Low cost, high reliability

Approvals

TUV EN60950-1

Mean Well LED Drivers / Power Supplies - IP Rated

Specifications

Attribute	Value
Output Voltage	100 → 200V
Maximum Output Power	100W
Output Current	500mA
Dimmable	No
Input Voltage	127 → 370 V dc, 90 → 264 V ac
Operation	Constant Current
LED Driver Type	LED Driver
AC or DC Input Voltage	ac, dc
IP Rating	IP67
Voltage Rating	127 → 370 V dc, 90 → 264 V ac
