Recom RCD-24-0.30/PL/A, Constant Current 1 to 10 V, Potentiometer LED Driver 10.5W 2 → 32V 0 → 300mA

  • RS Stock No. 738-5645
  • Mfr. Part No. RCD-24-0.30/PL/A
  • Warranty 5 Year
  • Brand Recom
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

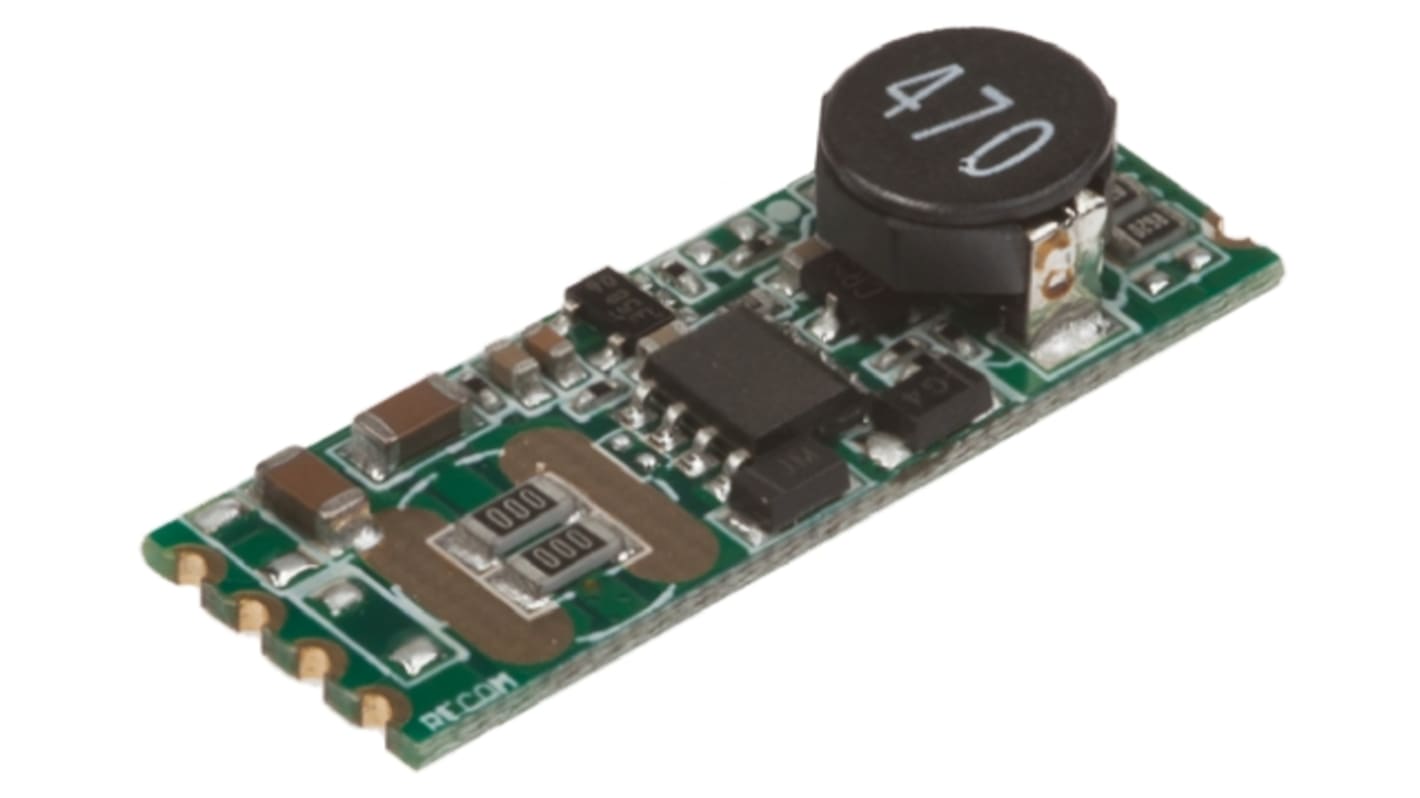

Recom SMD Open Frame Constant Current Step Down LED Driver - RCD-24-PL Series

RCD-24-PL series SMD mount, pinless, open frame, constant current LED drivers for driving high power white LEDs. These pinless, open frame, constant current LED drivers use 2 methods for LED dimming; PMW/digital control and analogue voltage dimming which are independent but can also be combined. These constant current LED drivers have either Class A (Suffix /A in part number) or Class B (Suffix /B in part number) built-in EMC filtering. Suitable applications for these constant current LED drivers includes strip lighting, wall washers and flourescent tube replacement designs where a low profile and narrow width are required.

Wide input and output voltage range
Pinless SMD open frame design to reduce cost and size
High ambient temperature of 70°C without derating
Digital PWM and analogue voltage dimming
Short circuit and overtemperature protection
High efficiency of 96%
EMC to EN55022 Class A (see part numbers suffixed with /A)
EMC to EN55022 Class B (see part numbers suffixed with /B)

Note

MTBF to MIL-HDBK-217F (25°C).

Standards

EN 60950-1

LED Drivers

Specifications
Attribute Value
Input Voltage 4.5 → 36 V dc
Output Voltage 2 → 32V
Operation Constant Current
Output Current 0 → 300mA
Maximum Output Power 10.5W
Dimming Operation Potentiometer, 1 to 10 V
AC or DC Input Voltage Dc
Voltage Rating 4.5 → 36V dc
6 In stock for FREE next working day delivery
Price Each
£ 9.52
(exc. VAT)
£ 11.42
(inc. VAT)
Units
Per unit
1 - 4
£9.52
5 - 9
£9.14
10 - 24
£8.95
25 - 49
£8.76
50 +
£8.57
