Product Details

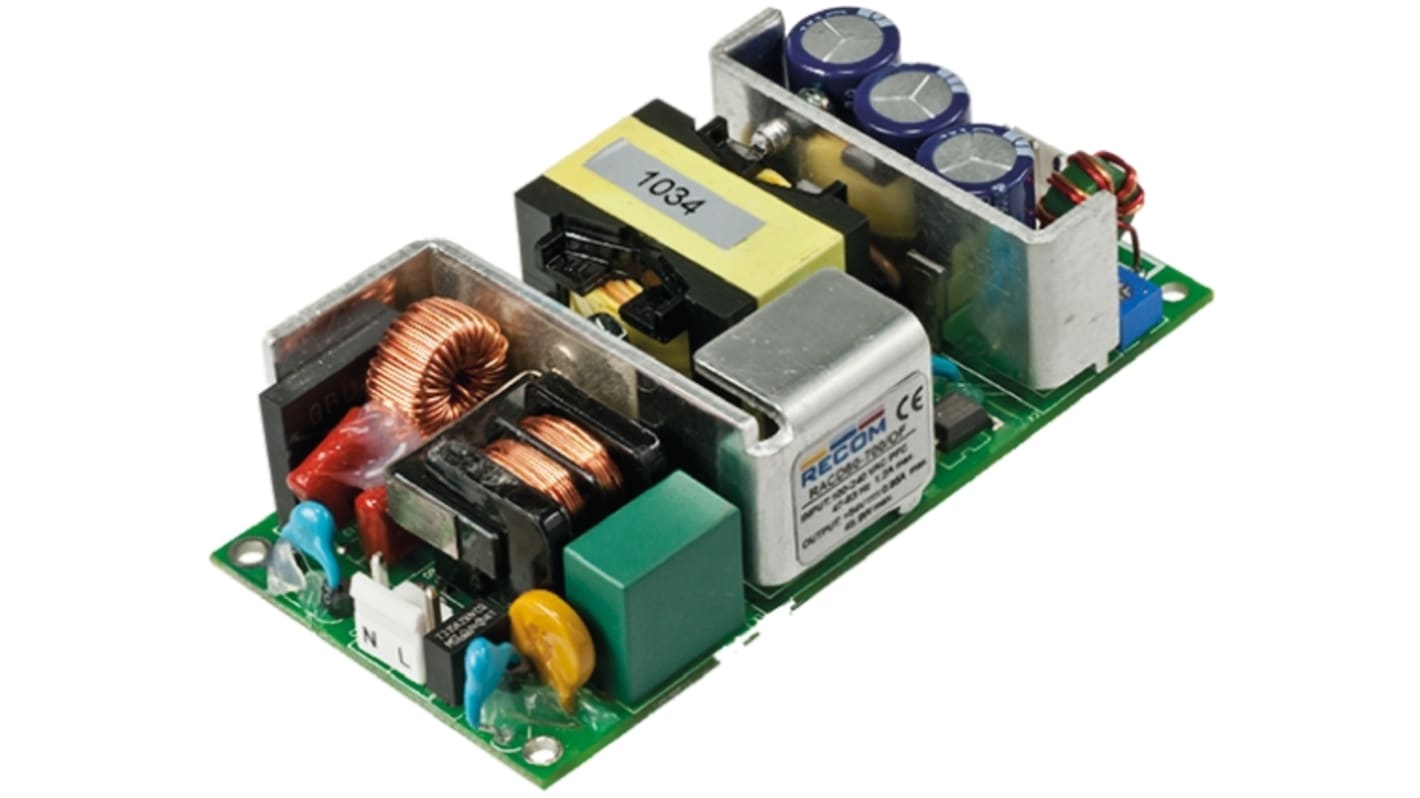

Recom 60W Constant Current LED Power Supply - RACD60 Series
RACD60 series 60W open frame constant current LED power supply with a single output, universal AC input and active power factor correction. This 60W constant current LED power supply has a user adjustable output current limit and a dual mode of operation; in CV mode the power supply behaves as a fixed voltage source at loads below the preset current limit. In CC mode the power supply behaves as a fixed current source at loads above the preset current limit. These two modes enable the LED power supply to be used with both CV and CC LED module
Universal input voltage range
Constant current output
Dual mode CV or CC output
Active power factor correction
User adjustable current limit
Connection via 300mm cable
Overload and short circuit protection
EMC to EN55015, EN61347-1, EN61347-2-13
Harmonic current compliance designed to meet EN 61000-3-2 (Class C, full load) and EN 61000-3-3
Constant current output
Dual mode CV or CC output
Active power factor correction
User adjustable current limit
Connection via 300mm cable
Overload and short circuit protection
EMC to EN55015, EN61347-1, EN61347-2-13
Harmonic current compliance designed to meet EN 61000-3-2 (Class C, full load) and EN 61000-3-3
Note
For Industrial Use Only, not in scope of Regulation (EC) No 125/2009.
MTBF to MIL-HDBK-217F
MTBF to MIL-HDBK-217F
Standards
UL8750, cUL8750, EN61347
Approvals
cULus
Recom - Constant Current LED Power Supply
Specifications
Attribute | Value |
---|---|
Output Voltage | 21 → 28V dc |
Maximum Output Power | 60W |
Output Current | 2.14A |
Input Voltage | 90 → 264 V ac |
Operation | Constant Current / Constant Voltage |
AC or DC Input Voltage | ac |
Series | RACD60 |
Number of Outputs | 1 |
Configuration | Open Frame |
Primary Type | AC-DC |
