MEAN WELL LED Driver, 36V Output, 100.8W Output, 2.8A Output, Constant Voltage
- RS Stock No.:
- 721-1777
- Distrelec Article No.:
- 301-34-927
- Mfr. Part No.:
- LPV-100-36
- Brand:
- MEAN WELL

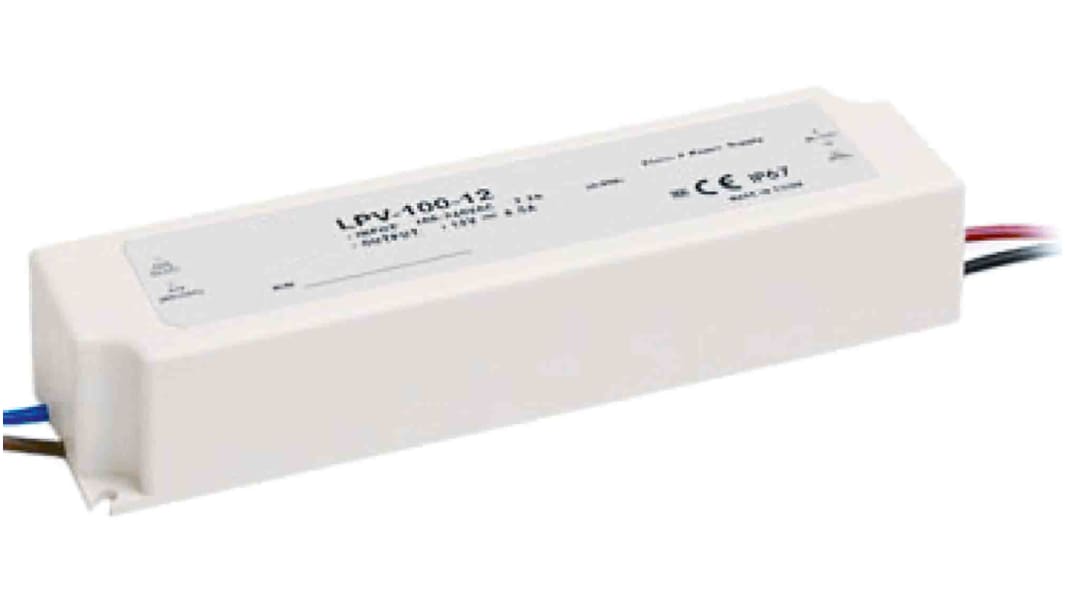

Image representative of range
Subtotal (1 unit)*
£29.49
(exc. VAT)
£35.39
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 21 unit(s) ready to ship
- Plus 20 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £29.49 |
*price indicative
- RS Stock No.:
- 721-1777
- Distrelec Article No.:
- 301-34-927
- Mfr. Part No.:
- LPV-100-36
- Brand:
- MEAN WELL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | MEAN WELL | |
Output Voltage | 36V | |
Maximum Output Power | 100.8W | |
Output Current | 2.8A | |
Dimmable | No | |
Input Voltage | 127 → 370 V dc, 90 → 264 V ac | |
Operation | Constant Voltage | |
LED Driver Type | LED Driver | |
AC or DC Input Voltage | ac, dc | |
IP Rating | IP67 | |
Voltage Rating | 127 → 370 V dc, 90 → 264 V ac | |
Number of Outputs | 1 | |
Select all | ||
---|---|---|
Brand MEAN WELL | ||
Output Voltage 36V | ||
Maximum Output Power 100.8W | ||
Output Current 2.8A | ||
Dimmable No | ||
Input Voltage 127 → 370 V dc, 90 → 264 V ac | ||
Operation Constant Voltage | ||
LED Driver Type LED Driver | ||
AC or DC Input Voltage ac, dc | ||
IP Rating IP67 | ||
Voltage Rating 127 → 370 V dc, 90 → 264 V ac | ||
Number of Outputs 1 | ||
RS - 100W Waterproof (IP67) SMPSU
External, switch mode, encapsulated IP67 rated, constant voltage power supplies
High efficiency, long life and high reliability
Designed for indoor or outdoor installations
Suitable for LED lighting and moving sign applications
Withstands 300Vac surge input for 5 seconds
100% full load burn-in test
Short circuit, over-current, over-voltage protection
300mm un-terminated, 2-core 18AWG input lead
300mm un-terminated, 2-core 14AWG output lead
EMC compliance to EN 55022 Class B
Harmonic current compliance to EN 61000-3-2,-3
High efficiency, long life and high reliability
Designed for indoor or outdoor installations
Suitable for LED lighting and moving sign applications
Withstands 300Vac surge input for 5 seconds
100% full load burn-in test
Short circuit, over-current, over-voltage protection
300mm un-terminated, 2-core 18AWG input lead
300mm un-terminated, 2-core 14AWG output lead
EMC compliance to EN 55022 Class B
Harmonic current compliance to EN 61000-3-2,-3
Note
