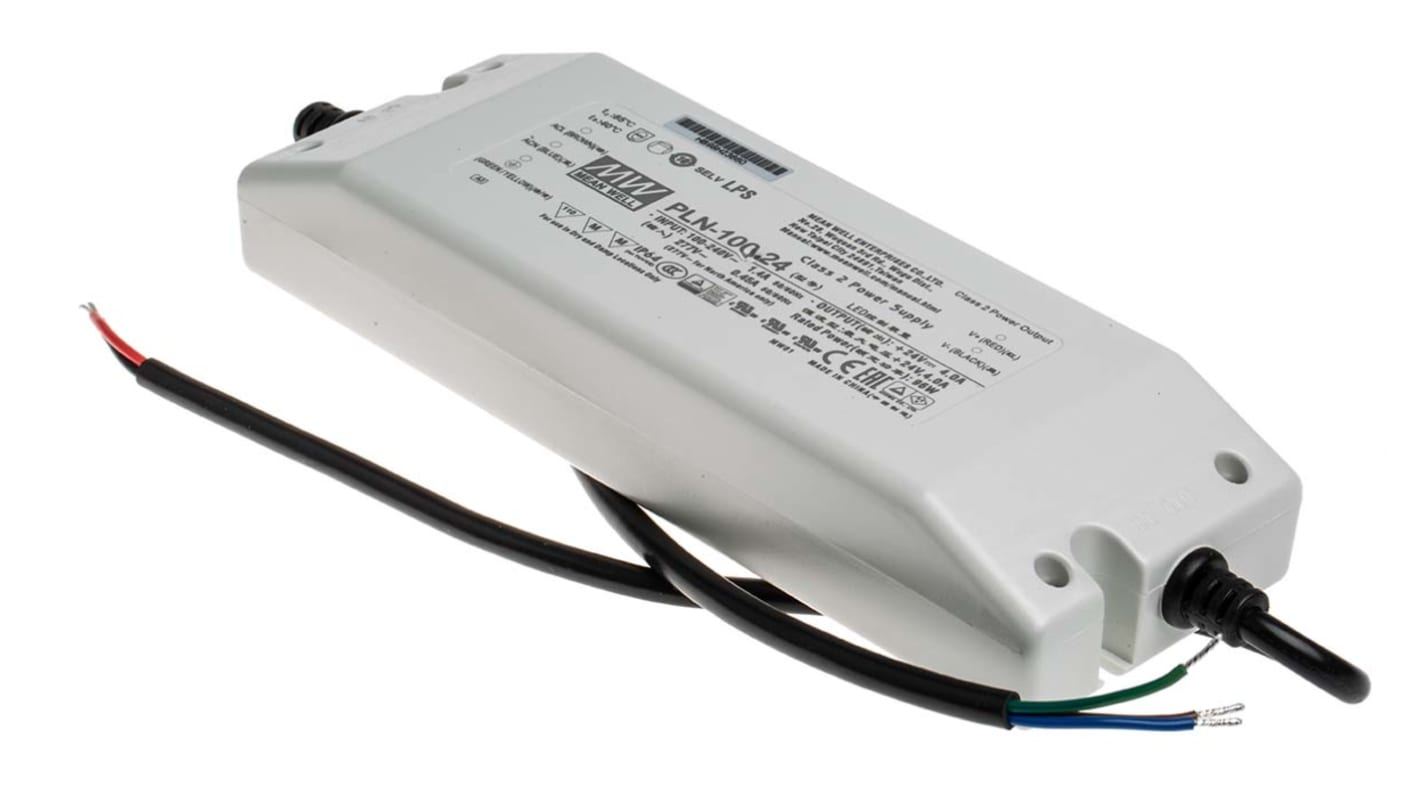

MEAN WELL LED Driver, 24V Output, 96 W Output, 4A
- RS Stock No.:
- 660-0221
- Distrelec Article No.:
- 169-03-183
- Mfr. Part No.:
- PLN-100-24
- Brand:
- MEAN WELL
Bulk discount available
Subtotal (1 unit)*
£44.46
(exc. VAT)
£53.35
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 15 unit(s) ready to ship
- Plus 20 unit(s) shipping from 20 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £44.46 |
| 5 - 9 | £43.12 |
| 10 - 24 | £41.79 |
| 25 - 49 | £40.46 |
| 50 + | £39.12 |
*price indicative
- RS Stock No.:
- 660-0221
- Distrelec Article No.:
- 169-03-183
- Mfr. Part No.:
- PLN-100-24
- Brand:
- MEAN WELL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Output Voltage | 24V | |
| Product Type | LED Driver | |
| Maximum Output Power | 96W | |
| Input Voltage | 264, 90, 127, 370V ac | |
| Mount Type | Panel | |
| Sub Type | LED Driver | |
| Terminal Type | Wire | |
| Input Voltage Type | AC/DC | |
| IP Rating | IP64 | |
| Driver Current | 4A | |
| Operating Modes | Constant Voltage | |
| Series | PLN-100 | |
| Number of Outputs | 1 | |
| Standards/Approvals | CE, CSA, EN, J61347-1, LPS, UL, CB | |
| Configuration | Enclosed | |
| Power Dissipation | 96W | |
| Primary Type | AC-DC | |
| Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Output Voltage 24V | ||
Product Type LED Driver | ||
Maximum Output Power 96W | ||
Input Voltage 264, 90, 127, 370V ac | ||
Mount Type Panel | ||
Sub Type LED Driver | ||
Terminal Type Wire | ||
Input Voltage Type AC/DC | ||
IP Rating IP64 | ||
Driver Current 4A | ||
Operating Modes Constant Voltage | ||
Series PLN-100 | ||
Number of Outputs 1 | ||
Standards/Approvals CE, CSA, EN, J61347-1, LPS, UL, CB | ||
Configuration Enclosed | ||
Power Dissipation 96W | ||
Primary Type AC-DC | ||
RS - 100W Waterproof (IP64) SMPSU with PFC
External switch mode IP64 rated power supplies
High efficiency, long life and high reliability
Designed for indoor or outdoor installations
Suitable for LED lighting and moving sign applications
100% full load burn-in test
Fully regulated output
Short circuit, over-load, over-voltage, over-temperature protection
310mm un-terminated, 3-core 18AWG input lead
310mm un-terminated, 2-core 18AWG output lead
UL1310 Class 2 power unit, pass LPS
EMC compliance to EN 55022 Class B
Power factor correction to EN 61000-3-2
Note
For Industrial Use Only, not in scope of Regulation (EC) No 125/2009.
Power derates above 40°C.
MTBF to MIL-HDBK-217F.
Power derates above 40°C.
MTBF to MIL-HDBK-217F.
Approvals
TUV, UL recognised for Canada & US
Standards
TUV EN 60950-1, EN 61347-1, EN 61347-2-13, UL 1310 Class 2, UL 879, CAN/CSA C22.2 No. 223-M91 (except for 48V)
