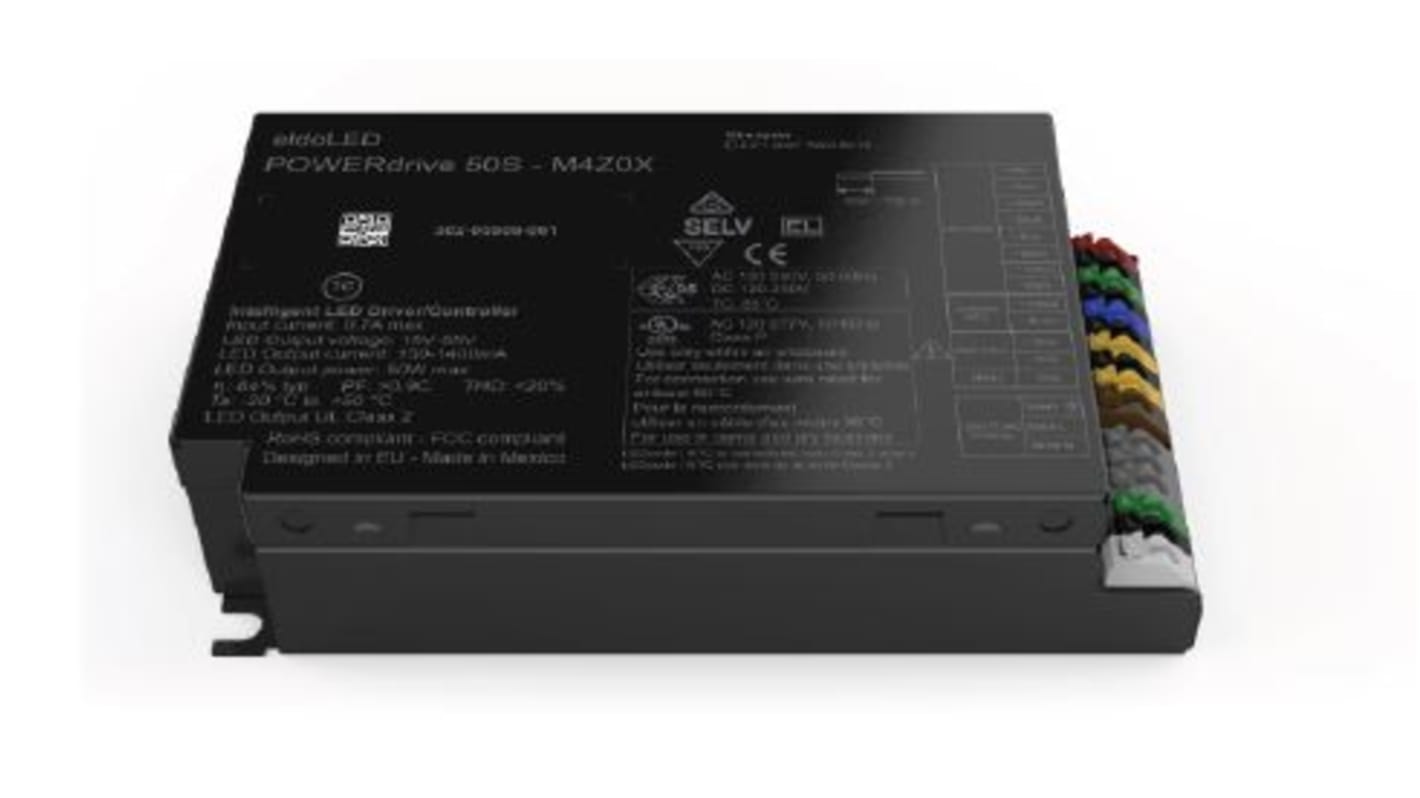

eldoLED LED Driver, 2V, 55 V Output, 50 W Output, 1400mA RDM, DMX
- RS Stock No.:
- 233-1437
- Mfr. Part No.:
- PW50S-M4Z0X
- Brand:
- eldoLED
Bulk discount available
Subtotal (1 unit)*
£116.81
(exc. VAT)
£140.17
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 10 unit(s) shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £116.81 |
| 5 - 9 | £112.14 |
| 10 - 24 | £107.70 |
| 25 + | £103.38 |
*price indicative
- RS Stock No.:
- 233-1437
- Mfr. Part No.:
- PW50S-M4Z0X
- Brand:
- eldoLED
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | eldoLED | |
| Output Voltage | 2, 55V | |
| Product Type | LED Driver | |
| Maximum Output Power | 50W | |
| Input Voltage | 120, 250V | |
| Mount Type | Screw | |
| Sub Type | LED Driver | |
| Dimming Operation | RDM, DMX | |
| Terminal Type | Push-in | |
| Input Voltage Type | AC | |
| Operating Modes | Constant Current | |
| LED Voltage | 108, 305V ac | |
| Driver Current | 1400mA | |
| Number of Outputs | 4 | |
| Series | PW50S | |
| Standards/Approvals | ANSI, EL, EN, FCC, IEC, REACH, RoHS, UL | |
| Configuration | Enclosed | |
| Power Dissipation | 0.5W | |
| Primary Type | AC | |
| Select all | ||
|---|---|---|
Brand eldoLED | ||
Output Voltage 2, 55V | ||
Product Type LED Driver | ||
Maximum Output Power 50W | ||
Input Voltage 120, 250V | ||
Mount Type Screw | ||
Sub Type LED Driver | ||
Dimming Operation RDM, DMX | ||
Terminal Type Push-in | ||
Input Voltage Type AC | ||
Operating Modes Constant Current | ||
LED Voltage 108, 305V ac | ||
Driver Current 1400mA | ||
Number of Outputs 4 | ||
Series PW50S | ||
Standards/Approvals ANSI, EL, EN, FCC, IEC, REACH, RoHS, UL | ||
Configuration Enclosed | ||
Power Dissipation 0.5W | ||
Primary Type AC | ||
- COO (Country of Origin):
- MX
The eldoLED POWERdrive AC’s dynamic response can be tuned to fit any content from exceptionally smooth fades in architecture to fast-paced video in entertainment. This constant current LED driver is DMX/RDM compatible, with a fully isolated DMX/RDM interface to all inputs and outputs.
Constant current LED output
4 channel DMX driver
Isolated DMX interface
150 - 1400mA programmable LED outputs
