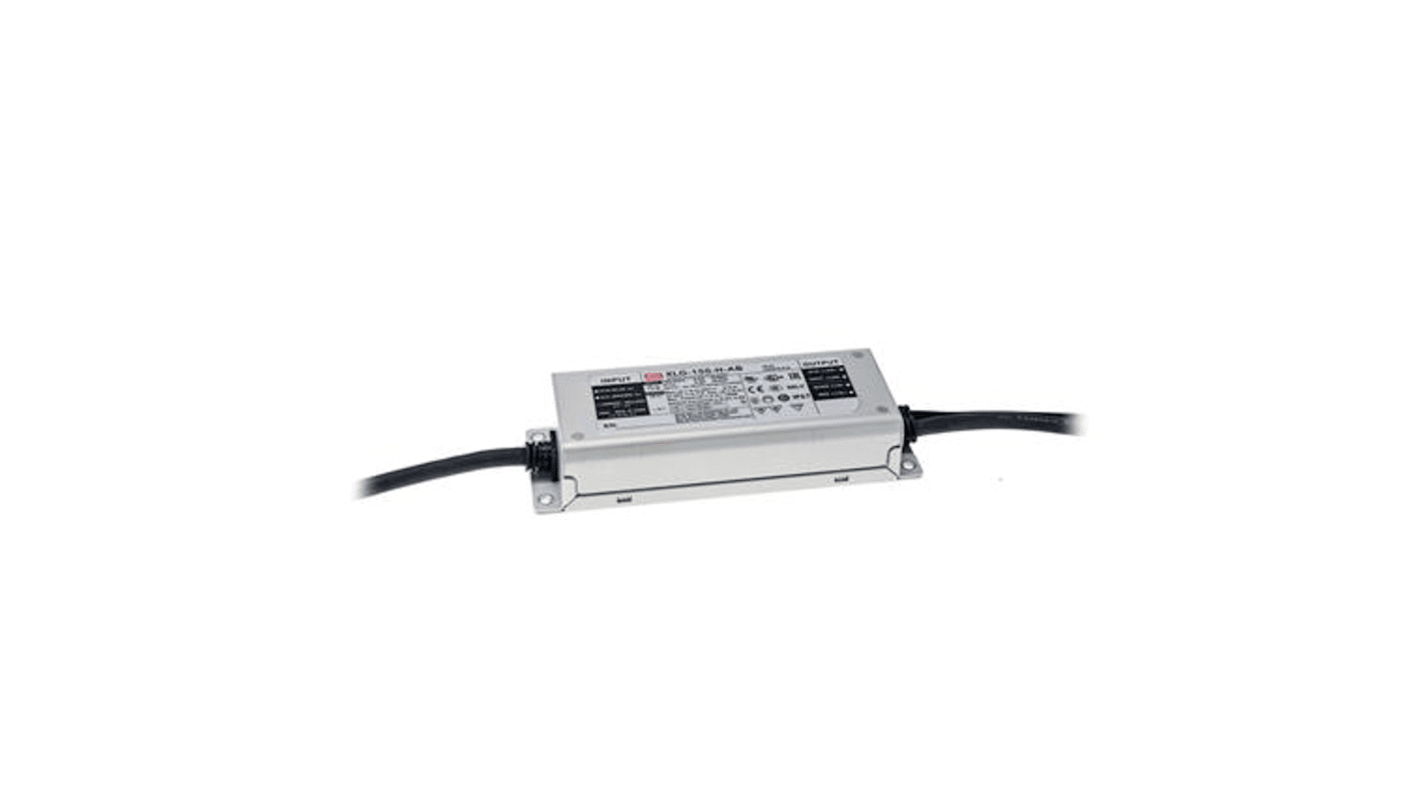

MEAN WELL LED Driver, 214V Output, 150W Output, 1.05A Output, Constant Current Dimmable
- RS Stock No.:
- 216-3021
- Mfr. Part No.:
- XLG-150-L-A
- Brand:
- MEAN WELL
18 In stock - FREE next working day delivery available
Added
Price Each
£30.24
(exc. VAT)
£36.29
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £30.24 |
| 10 - 24 | £27.21 |
| 25 - 49 | £26.13 |
| 50 + | £25.25 |
- RS Stock No.:
- 216-3021
- Mfr. Part No.:
- XLG-150-L-A
- Brand:
- MEAN WELL
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The Mean Well XLG-150 series is a 150 W LED AC/DC driver featuring the constant power mode. XLG-150 operates from 100-305 VAC and offers models with different rated current ranging between 700mA and 12500mA. Thanks to the high efficiency up to 93%, with the fanless design , the entire series is able to operate for 40℃∼+ 90℃ case temperature under free air convection.
Metal case with IP67, suitable for outdoor applications
Protection functions: OVP/SCP/OCP/OTP
Protection functions: OVP/SCP/OCP/OTP
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 214V |
| Maximum Output Power | 150W |
| Output Current | 1.05A |
| Dimmable | Yes |
| Input Voltage | 100-305 V |
| Operation | Constant Current |
| LED Driver Type | LED Driver |
| Dimming Operation | Potentiometer |
| Series | XLG-150 |
