Osram LED Driver, 42 V Output, 29.4 W Output, 500 mA
- RS Stock No.:
- 181-5747
- Mfr. Part No.:
- 4052899988781
- Brand:
- Osram
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 181-5747
- Mfr. Part No.:
- 4052899988781
- Brand:
- Osram
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Osram | |
| Output Voltage | 42 V | |
| Product Type | LED Driver | |
| Maximum Output Power | 29.4W | |
| Input Voltage | 220 V | |
| Mount Type | Screw | |
| Sub Type | LED Driver | |
| Input Voltage Type | AC | |
| Terminal Type | Push-in | |
| IP Rating | IP20 | |
| LED Voltage | 230 V ac | |
| Operating Modes | Constant Voltage | |
| Driver Current | 500 mA | |
| Number of Outputs | 5 | |
| Series | DALIeco | |
| Standards/Approvals | CE | |
| Configuration | Enclosed | |
| Primary Type | AC, DC | |
| Power Dissipation | 3W | |
| Select all | ||
|---|---|---|
Brand Osram | ||
Output Voltage 42 V | ||
Product Type LED Driver | ||
Maximum Output Power 29.4W | ||
Input Voltage 220 V | ||
Mount Type Screw | ||
Sub Type LED Driver | ||
Input Voltage Type AC | ||
Terminal Type Push-in | ||
IP Rating IP20 | ||
LED Voltage 230 V ac | ||
Operating Modes Constant Voltage | ||
Driver Current 500 mA | ||
Number of Outputs 5 | ||
Series DALIeco | ||
Standards/Approvals CE | ||
Configuration Enclosed | ||
Primary Type AC, DC | ||
Power Dissipation 3W | ||

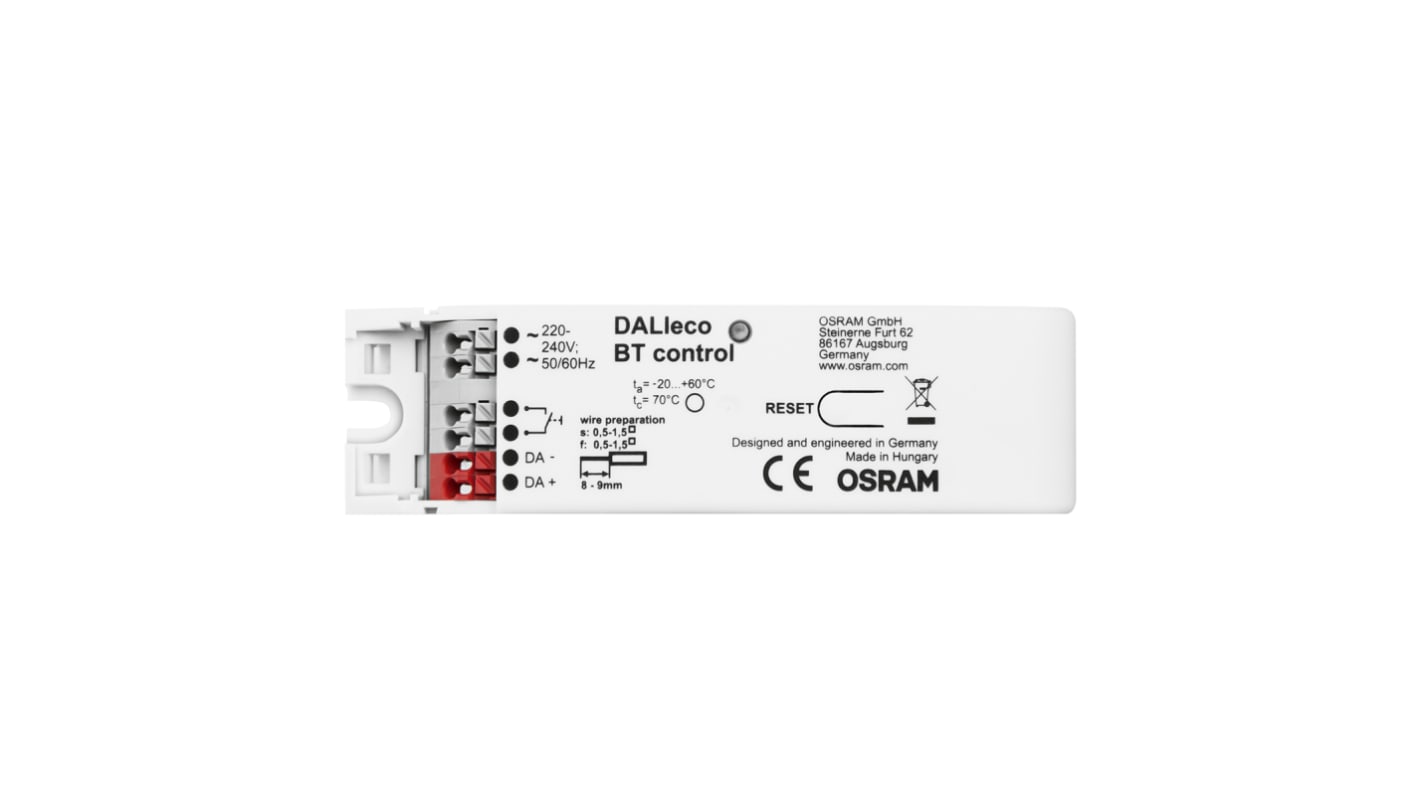

Osram LED Driver
The Osram CV series DALIeco Bluetooth control driver has controls units for light management systems.
Features and Benefits
• Adjustment of all settings via smartphone
• Connection of up to 4 OSRAM DALI sensors
• Daylight dependent regulation and presence dependent control of light
• Firmware update over the air via Bluetooth possible
• Intuitive manual dimming, switching, and changing of colour temperature
• Light control with app connection via Bluetooth
• Nominal supply voltage is 230V
• One DALI broadcast output channel
• Operation via standard pushbutton
• Outputs with electronic reversible over temperature, short circuit, overload protection
• Simplified start up thanks to predefined operation modes
Applications
• Corridors
• Meeting rooms
• Offices
Certifications
• IP20 rating
