MEAN WELL LED Driver, 108V Output, 150W Output, 1.4A Output, Constant Current Dimmable

View all LED Drivers

Subtotal (1 unit)*

£38.71

(exc. VAT)

£46.45

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£38.71

*price indicative

RS Stock No.:
634-250
Mfr. Part No.:
HLG-120H-C1400A
Brand:
MEAN WELL
Find similar products by selecting one or more attributes.
Select all

Brand

MEAN WELL

Output Voltage

108V

Maximum Output Power

150W

Output Current

1.4A

Dimmable

Yes

Input Voltage

90 → 305 V, 127 → 431 V

Operation

Constant Current

LED Driver Type

LED Driver

COO (Country of Origin):
CN

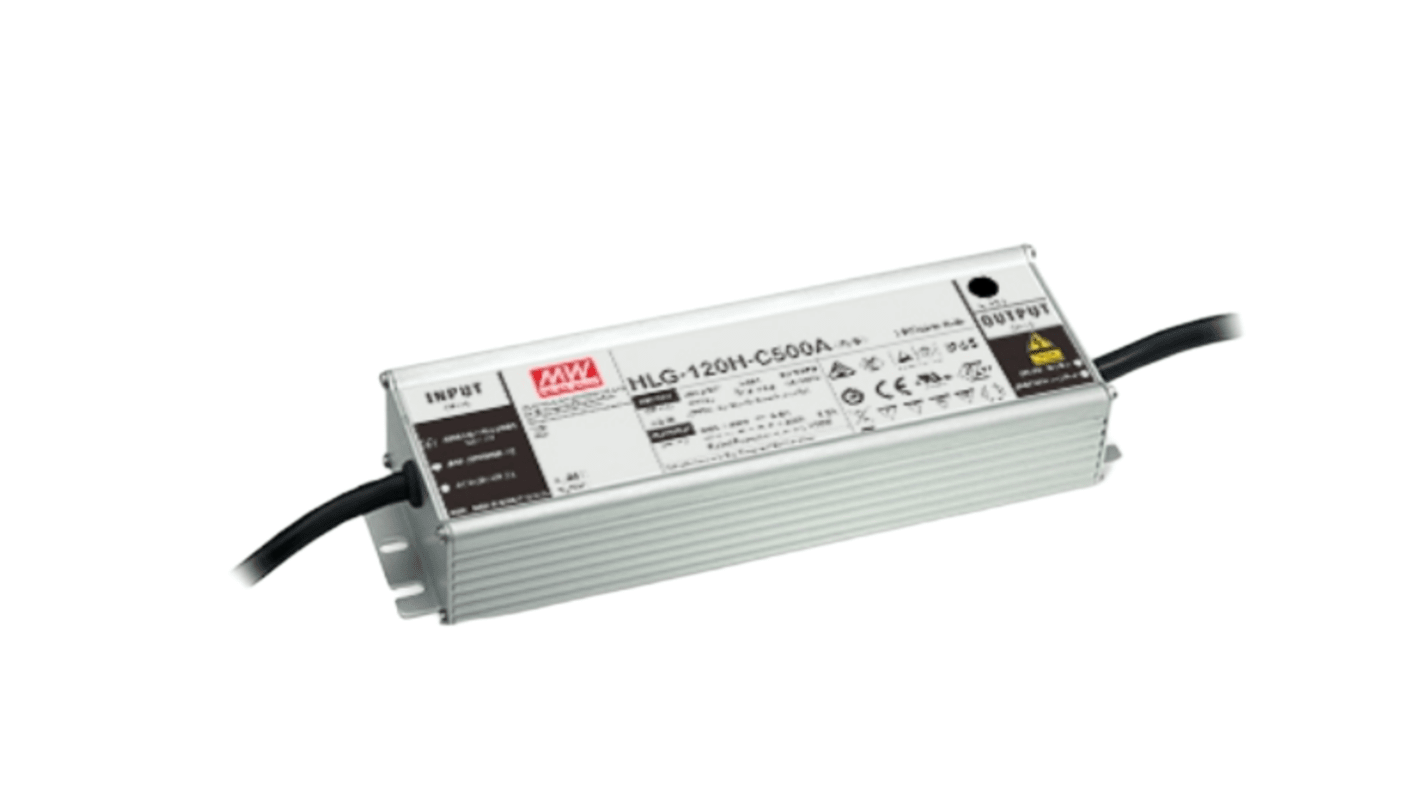

The MEANWELL 150W AC/DC LED driver featuring the constant current mode and high voltage output. It operates from 90 to 305VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40°C to +90°C case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. It is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Constant Current mode output
Metal housing with Class I design
Built-in active PFC function
