MEAN WELL LED Driver, 49V Output, 100W Output, 2A Output, Constant Current Dimmable
- RS Stock No.:
- 634-242
- Mfr. Part No.:
- HBG-100-48DA
- Brand:
- MEAN WELL
Subtotal (1 unit)*
£39.80
(exc. VAT)
£47.76
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £39.80 |
*price indicative
- RS Stock No.:
- 634-242
- Mfr. Part No.:
- HBG-100-48DA
- Brand:
- MEAN WELL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | MEAN WELL | |
Output Voltage | 49V | |
Maximum Output Power | 100W | |
Output Current | 2A | |
Dimmable | Yes | |
Input Voltage | 90 → 305 V, 127 → 431 V | |
Operation | Constant Current | |
LED Driver Type | LED Driver | |
Select all | ||
---|---|---|
Brand MEAN WELL | ||
Output Voltage 49V | ||
Maximum Output Power 100W | ||
Output Current 2A | ||
Dimmable Yes | ||
Input Voltage 90 → 305 V, 127 → 431 V | ||
Operation Constant Current | ||
LED Driver Type LED Driver | ||
- COO (Country of Origin):
- CN

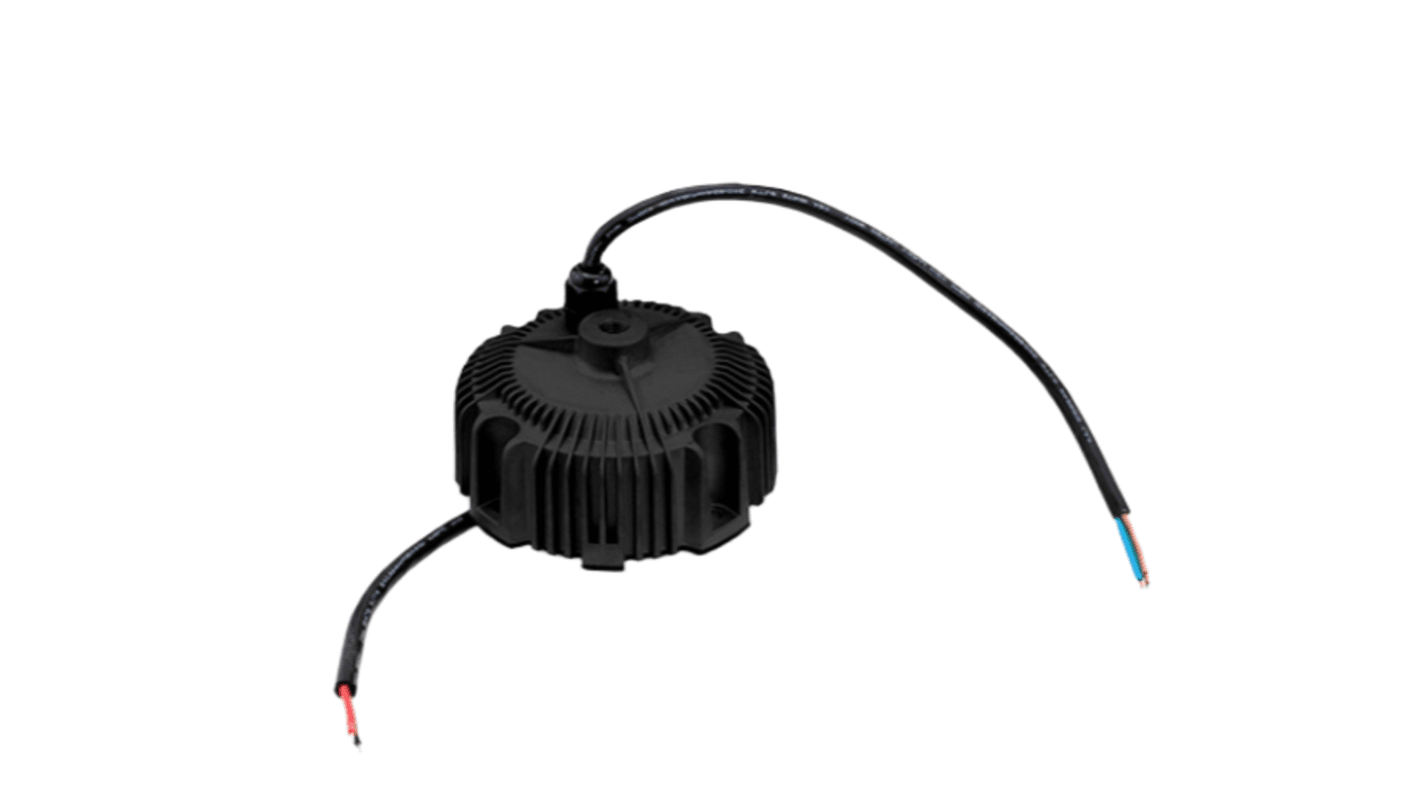

The MEANWELL 100W AC/DC LED driver featuring the circular shape design. It operates from 90 to 305VAC and offers the constant current output models with different rated voltage between 24V and 60V. Thanks to the high efficiency up to 91.5%, with the fanless design, the entire series is able to operate for -40°C to +85°C case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. It is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Constant Current mode output
Circular metal housing with class I design
Built-in active PFC function
IP67/IP65 rating for indoor or outdoor installations
Circular metal housing with class I design
Built-in active PFC function
IP67/IP65 rating for indoor or outdoor installations
