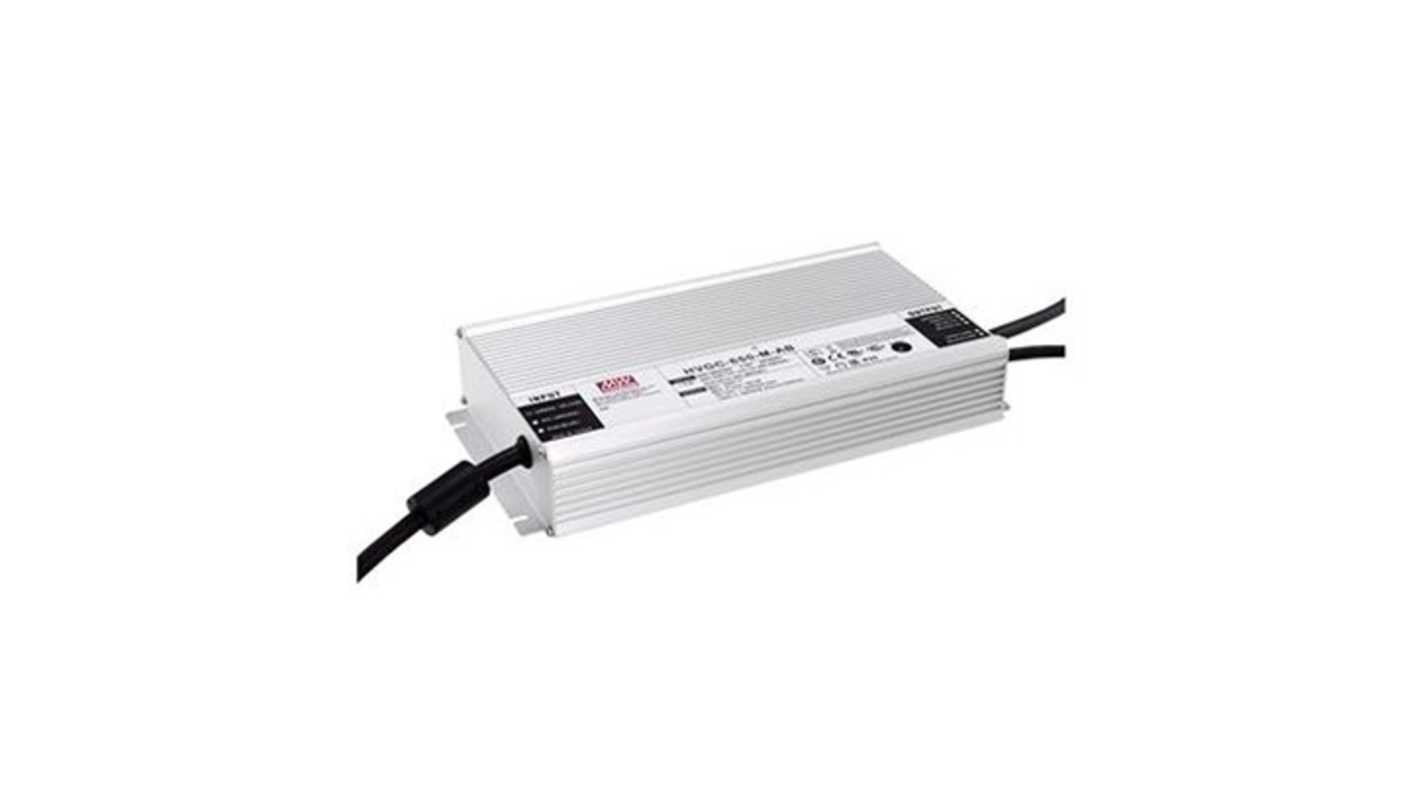

MEAN WELL, 70V Output, 650 W Output Resistance, 3 in 1, 10V PWM
- RS Stock No.:
- 611-398
- Mfr. Part No.:
- HVGC-650-U-AB
- Brand:
- MEAN WELL
Subtotal (1 unit)*
£232.98
(exc. VAT)
£279.58
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 2 unit(s) ready to ship
- Plus 1 unit(s) shipping from 29 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £232.98 |
*price indicative
- RS Stock No.:
- 611-398
- Mfr. Part No.:
- HVGC-650-U-AB
- Brand:
- MEAN WELL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Output Voltage | 70V | |
| Product Type | LED Driver | |
| Maximum Output Power | 650W | |
| Input Voltage | 180, 254, 528, 747V ac/dc | |
| Dimming Operation | Resistance, 3 in 1, 10V PWM | |
| Input Voltage Type | AC/DC | |
| IP Rating | IP67 | |
| LED Voltage | 70V | |
| Operating Modes | Constant Power | |
| Standards/Approvals | ENEC, BS EN/EN55015, BS EN/EN61347-1-2-13, BS EN/EN60384, CSA C22.2 No. 250.13-12, UL8750 (type HL), BS EN/EN61000-3-3, GB19510.1, FCC Part 15 Class B, GB17625.1, BS EN/EN61000-3-2 Class C, BS EN/EN61000-4-2, EAC TP TC 020, GB19510.14, EAC TP TC 004, BS EN/EN61547, GB/T 17743 | |
| Series | HVGC-650 | |
| Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Output Voltage 70V | ||
Product Type LED Driver | ||
Maximum Output Power 650W | ||
Input Voltage 180, 254, 528, 747V ac/dc | ||
Dimming Operation Resistance, 3 in 1, 10V PWM | ||
Input Voltage Type AC/DC | ||
IP Rating IP67 | ||
LED Voltage 70V | ||
Operating Modes Constant Power | ||
Standards/Approvals ENEC, BS EN/EN55015, BS EN/EN61347-1-2-13, BS EN/EN60384, CSA C22.2 No. 250.13-12, UL8750 (type HL), BS EN/EN61000-3-3, GB19510.1, FCC Part 15 Class B, GB17625.1, BS EN/EN61000-3-2 Class C, BS EN/EN61000-4-2, EAC TP TC 020, GB19510.14, EAC TP TC 004, BS EN/EN61547, GB/T 17743 | ||
Series HVGC-650 | ||
The MEANWELL 650W LED AC/DC driver featuring the constant power mode with wide output voltage range. It operates from 180 to 528VAC and offers models with different rated current ranging between 2800mA and 14000mA. Thanks to the high efficiency up to 95.5%, with the fanless design, all models are able to operate for -40°C to +85°C case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications, such as horticulture lighting and stadium light is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Constant power mode output
Metal housing with Class I design
Surge protection with 8KV/4KV
Built-in active PFC function
IP67 design for indoor or outdoor installations
