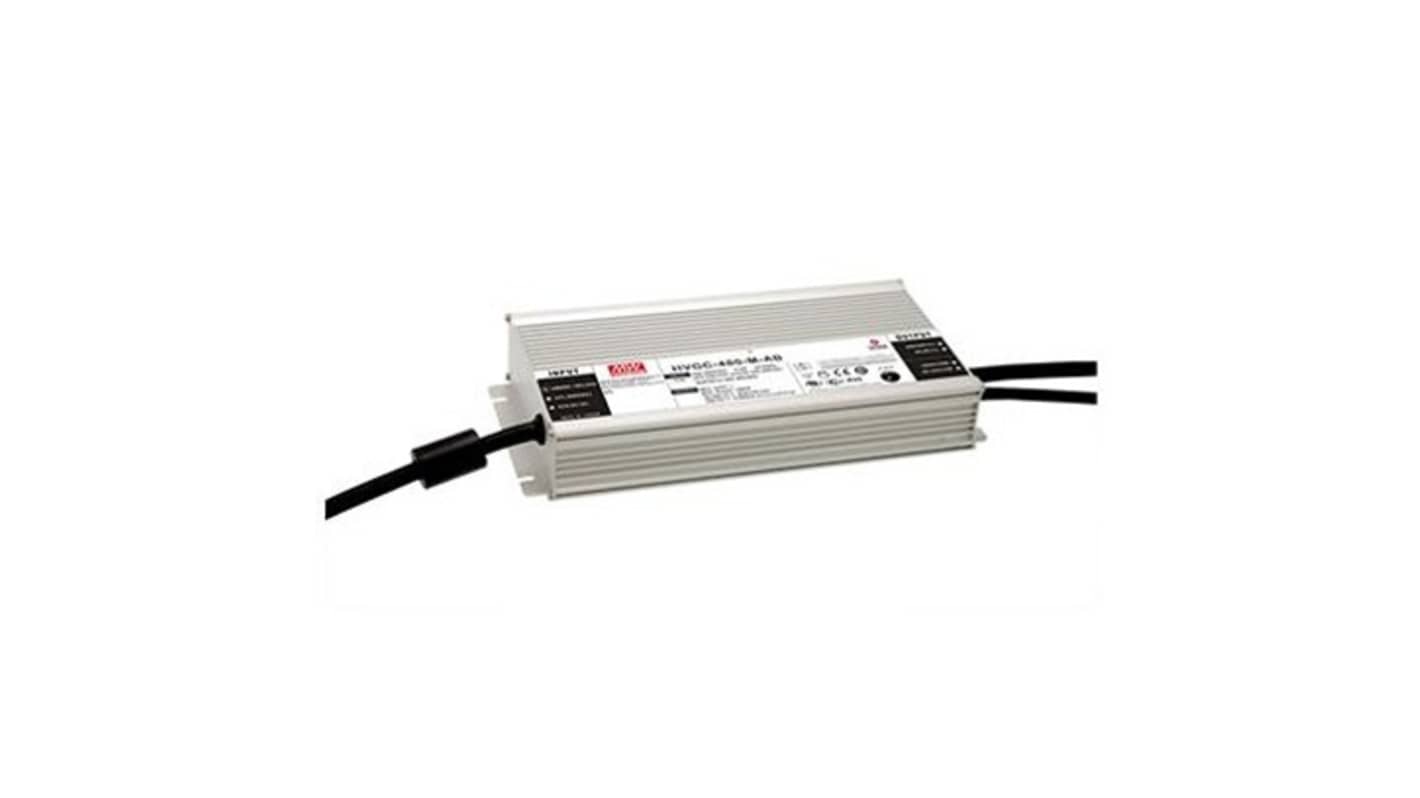

MEAN WELL IP65, IP67 LED Driver, 350V, 480 W, 3500mA, 700 mA 10V PWM, Resistance, 3 in 1
- RS Stock No.:
- 611-395
- Mfr. Part No.:
- HVGC-480-L-AB
- Brand:
- MEAN WELL
Subtotal (1 unit)*
£172.50
(exc. VAT)
£207.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £172.50 |
*price indicative
- RS Stock No.:
- 611-395
- Mfr. Part No.:
- HVGC-480-L-AB
- Brand:
- MEAN WELL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Product Type | LED Driver | |
| Output Voltage | 350V | |
| Maximum Output Power | 480W | |
| Input Voltage | 180, 254, 528, 747V ac/dc | |
| Dimming Operation | 10V PWM, Resistance, 3 in 1 | |
| IP Rating | IP65, IP67 | |
| Driver Current | 3500, 700mA | |
| Operating Modes | Constant Power | |
| LED Voltage | 343, 68V | |
| Series | HVGC-480 | |
| Standards/Approvals | EAC TP TC 004, BS EN/EN61347-2-13, BS EN/EN62384, BS EN/EN61000-3-2 Class C, MIL-HDBK-217F, FCC Part 15 Class B, BS EN/EN61547, BS EN/EN55015, CSA C22.2 No. 250.13-14, BS EN/EN61000-4-2, EAC TP TC 020, ENEC BS EN/EN61347-1, BS EN/EN61000-3-3, UL8750 (type”HL”) | |
| Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Product Type LED Driver | ||
Output Voltage 350V | ||
Maximum Output Power 480W | ||
Input Voltage 180, 254, 528, 747V ac/dc | ||
Dimming Operation 10V PWM, Resistance, 3 in 1 | ||
IP Rating IP65, IP67 | ||
Driver Current 3500, 700mA | ||
Operating Modes Constant Power | ||
LED Voltage 343, 68V | ||
Series HVGC-480 | ||
Standards/Approvals EAC TP TC 004, BS EN/EN61347-2-13, BS EN/EN62384, BS EN/EN61000-3-2 Class C, MIL-HDBK-217F, FCC Part 15 Class B, BS EN/EN61547, BS EN/EN55015, CSA C22.2 No. 250.13-14, BS EN/EN61000-4-2, EAC TP TC 020, ENEC BS EN/EN61347-1, BS EN/EN61000-3-3, UL8750 (type”HL”) | ||
The MEANWELL 480W LED AC/DC driver featuring the constant power mode and high voltage output. It operates from 180 to 528VAC and offers models with different rated current ranging between 1400mA and 3500mA. Thanks to the high efficiency up to 94.5%, with the fanless design, the entire series is able to operate for -40°C to +90°C case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. It is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Constant Power mode output
Metal housing with Class I design
Built-in active PFC function
