MEAN WELL, 48V Output, 150 W Output, 10A, 1.4 A 3 in 1, 10V PWM, Resistance
- RS Stock No.:
- 611-381
- Mfr. Part No.:
- ELG-150-48AB-3Y
- Brand:
- MEAN WELL
Subtotal (1 unit)*
£39.96
(exc. VAT)
£47.95
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £39.96 |
*price indicative
- RS Stock No.:
- 611-381
- Mfr. Part No.:
- ELG-150-48AB-3Y
- Brand:
- MEAN WELL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Output Voltage | 48V | |
| Product Type | LED Driver | |
| Maximum Output Power | 150W | |
| Input Voltage | 100, 142, 305, 431V ac/dc | |
| Dimming Operation | 3 in 1, 10V PWM, Resistance | |
| Input Voltage Type | AC/DC | |
| IP Rating | IP67, IP65 | |
| Driver Current | 10, 1.4A | |
| LED Voltage | 54, 6V | |
| Operating Modes | Constant Current/Constant Voltage | |
| Standards/Approvals | IEC/ES/NZS 61347-1, IS 15885(Part 2/Sec13), UL8750, BIS IS15885, IEC/ES/NZS 61347-2-13, CSA C22.2 No. 250.13-12, GB19510.1, GB19510.14, EN62384, IP65 or IP67 approved, EAC TP TC 004 | |
| Series | ELG-150 | |
| Number of Outputs | 1 | |
| Primary Type | LED Driver | |
| Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Output Voltage 48V | ||
Product Type LED Driver | ||
Maximum Output Power 150W | ||
Input Voltage 100, 142, 305, 431V ac/dc | ||
Dimming Operation 3 in 1, 10V PWM, Resistance | ||
Input Voltage Type AC/DC | ||
IP Rating IP67, IP65 | ||
Driver Current 10, 1.4A | ||
LED Voltage 54, 6V | ||
Operating Modes Constant Current/Constant Voltage | ||
Standards/Approvals IEC/ES/NZS 61347-1, IS 15885(Part 2/Sec13), UL8750, BIS IS15885, IEC/ES/NZS 61347-2-13, CSA C22.2 No. 250.13-12, GB19510.1, GB19510.14, EN62384, IP65 or IP67 approved, EAC TP TC 004 | ||
Series ELG-150 | ||
Number of Outputs 1 | ||
Primary Type LED Driver | ||
- COO (Country of Origin):
- CN

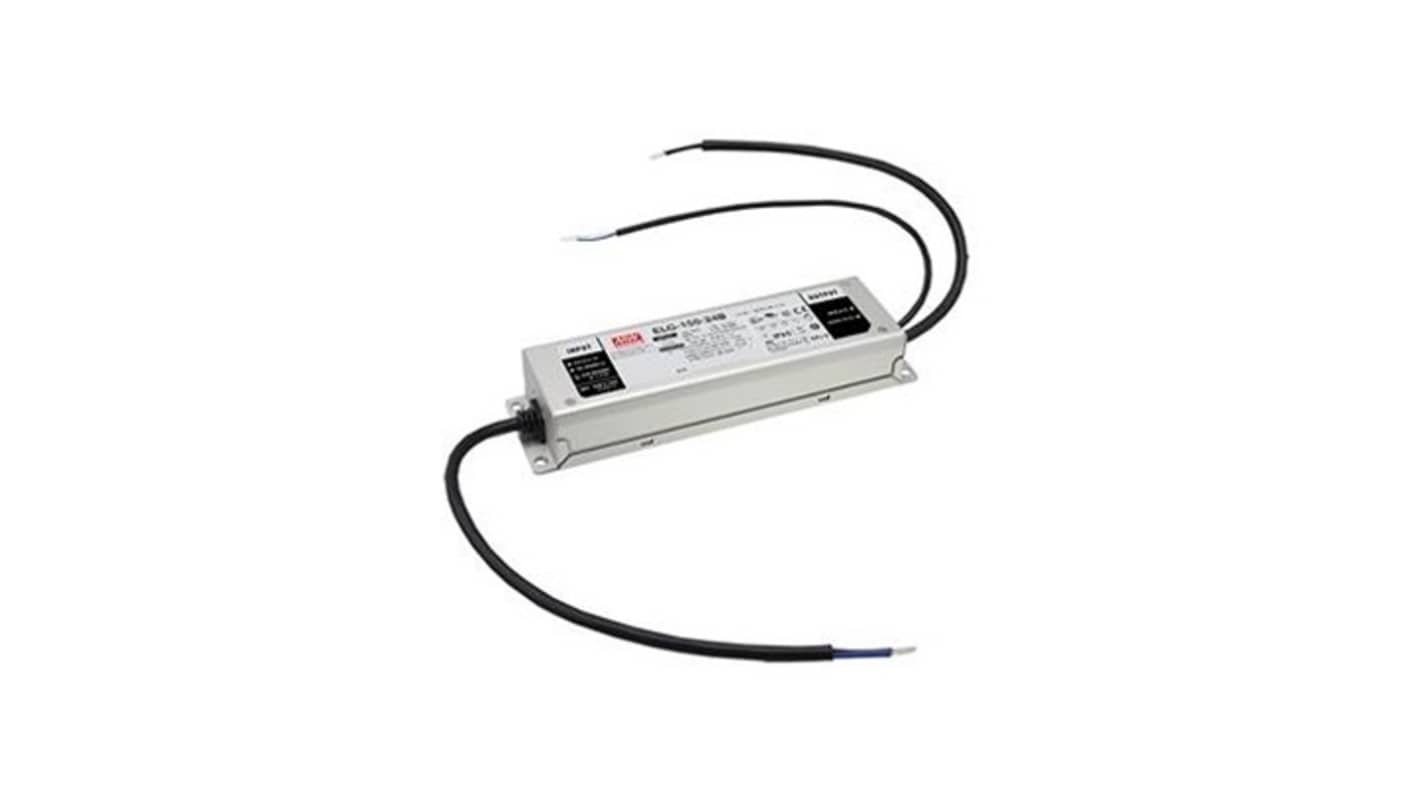

The MEANWELL 150W AC/DC LED driver featuring the dual mode constant voltage and constant current output. It operates from 100 to 305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40°C t0 +90°C case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications.
Metal housing design with functional Ground
Built-in active PFC function
IP67/IP65 rating for indoor or outdoor installations
