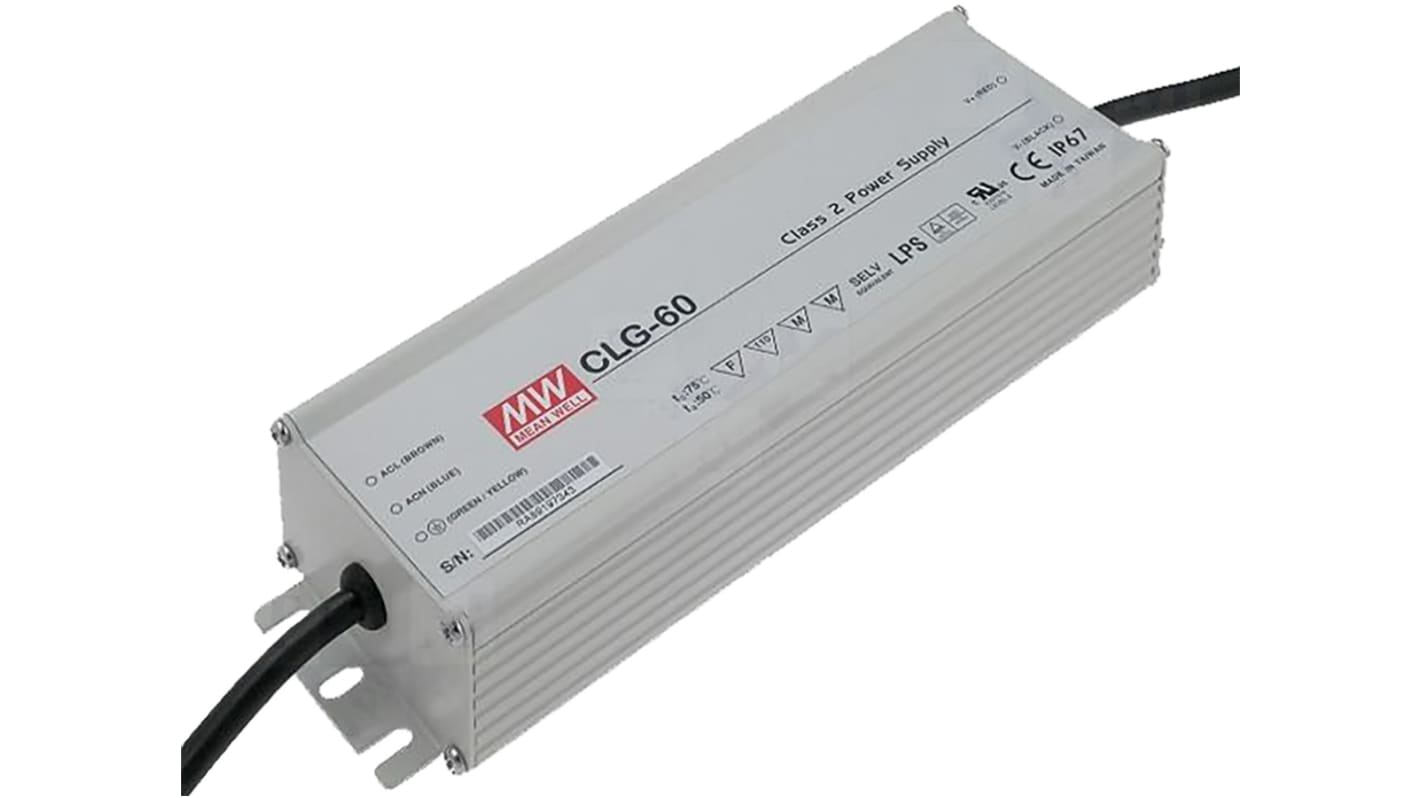

Mean Well, 48V Output, 62.5W Output, 1.3A Output, Constant Current
- RS Stock No.:
- 414-147
- Mfr. Part No.:
- CLG-60-48
- Brand:
- Mean Well
- RS Stock No.:
- 414-147
- Mfr. Part No.:
- CLG-60-48
- Brand:
- Mean Well
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
60W Waterproof (IP67) PFC SMPSU
External switch mode IP67 rated power supplies
High efficiency, long life and high reliability
Designed for indoor or outdoor installations
Suitable for LED lighting and moving sign applications
100% full load burn-in test
Fully regulated output
Short circuit, over-load, over-voltage and over-temperature protection
300mm un-terminated, 3-core 18AWG input lead
300mm un-terminated, 2-core 18AWG output lead
UL1310 Class 2 power unit, pass LPS
EMC compliance to EN 55022 Class B
Power factor correction to EN 61000-3-2
High efficiency, long life and high reliability
Designed for indoor or outdoor installations
Suitable for LED lighting and moving sign applications
100% full load burn-in test
Fully regulated output
Short circuit, over-load, over-voltage and over-temperature protection
300mm un-terminated, 3-core 18AWG input lead
300mm un-terminated, 2-core 18AWG output lead
UL1310 Class 2 power unit, pass LPS
EMC compliance to EN 55022 Class B
Power factor correction to EN 61000-3-2
Note
For Industrial Use Only, not in scope of Regulation (EC) No 125/2009.
Power derates above 50°C.
MTBF to MIL-HDBK-217F.
Power derates above 50°C.
MTBF to MIL-HDBK-217F.
Standards
TUV EN 61347-1, EN 61347-2-13, UL 1310 Class 2, CAN/CSA C22.2 No. 223-M91 (except for 48V)
Approvals
TUV, UL recognised for Canada & US
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 48V |
| Maximum Output Power | 62.5W |
| Output Current | 1.3A |
| Input Voltage | 127 → 370 V dc, 90 → 264 V ac |
| Operation | Constant Current |
| AC or DC Input Voltage | ac, dc |
| IP Rating | IP67 |
| Voltage Rating | 127 → 370 V dc, 90 → 264 V ac |
| Number of Outputs | 1 |
