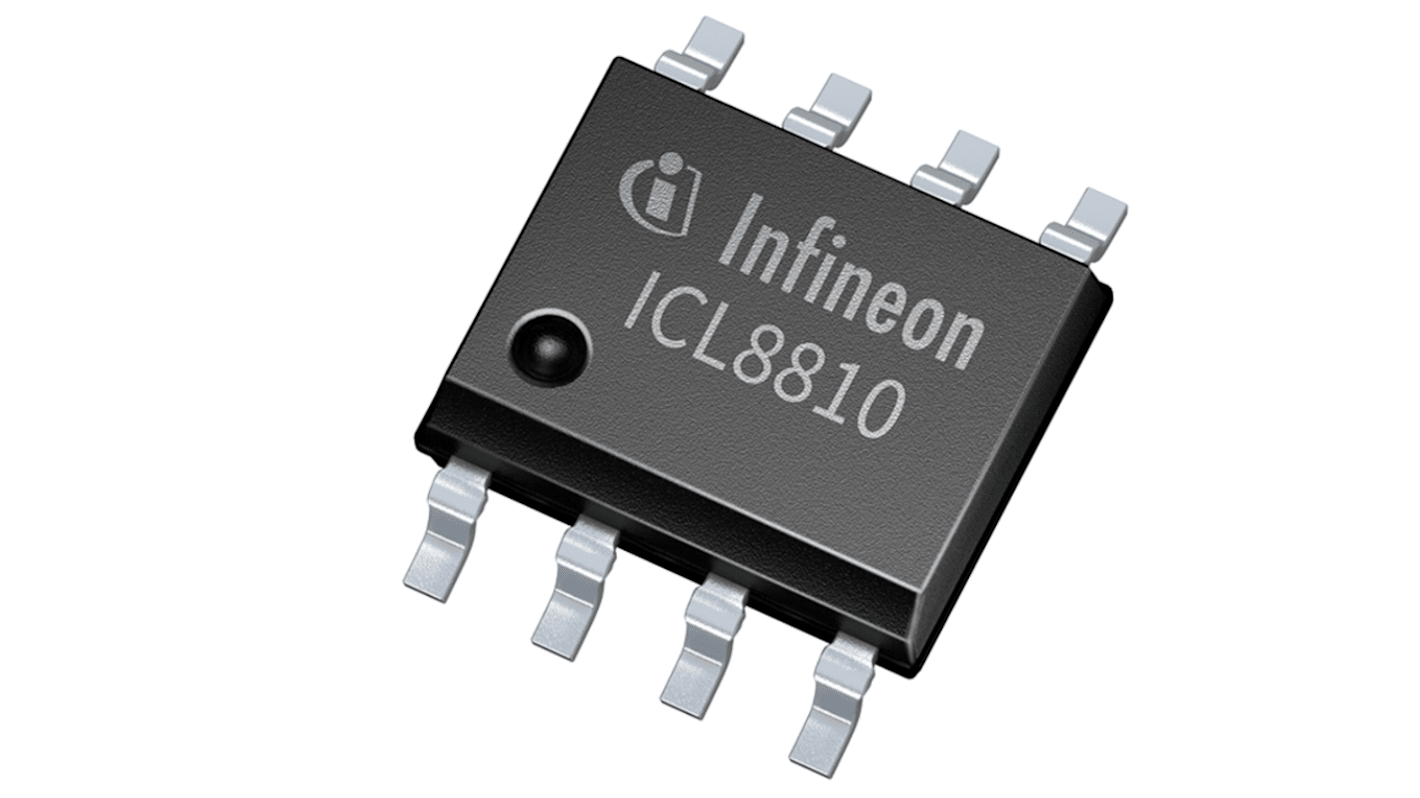

Infineon ICL8810XUMA1 LED Driver IC, 8 → 24 V 8-Pin PG-DSO-8

View all LED Driver ICs

Subtotal (1 reel of 2500 units)*

£602.50

(exc. VAT)

£722.50

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 10,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
2500 +£0.241£602.50

*price indicative

RS Stock No.:
233-4359
Mfr. Part No.:
ICL8810XUMA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Input Voltage

8 → 24 V

AC or DC Input Voltage

ac, dc

Dimming Operation

PWM

Maximum Output Power

125W

Package Type

PG-DSO-8

Number of Pins

8

The Infineon ICL8810 is a voltage mode controller for flyback topologies operating in quasiresonant mode and valley switching DCM. It is designed for low and high power lumen LED driver, requiring high power factor and efficiency. The flyback controller is capable of controlling SSR-CV an PSR-CV topologies. Offering a wide usage in low cost applications where a PFC functionality in dual stage topologies is required. For lighting applications, the IC offers a wide power range as well as a comprehensive set of protections, including a power limitation. The IC is easy to design in and requires a minimum number of external components.

Soft-start to reduce stress during turn-on
External start-up circuit control signal with Vcc support in light load operation
Reduced gate driver output voltage during start-up sequence and burst mode allowing smaller Vcc cap
Burst mode for very light loads and low system standby power consumption
