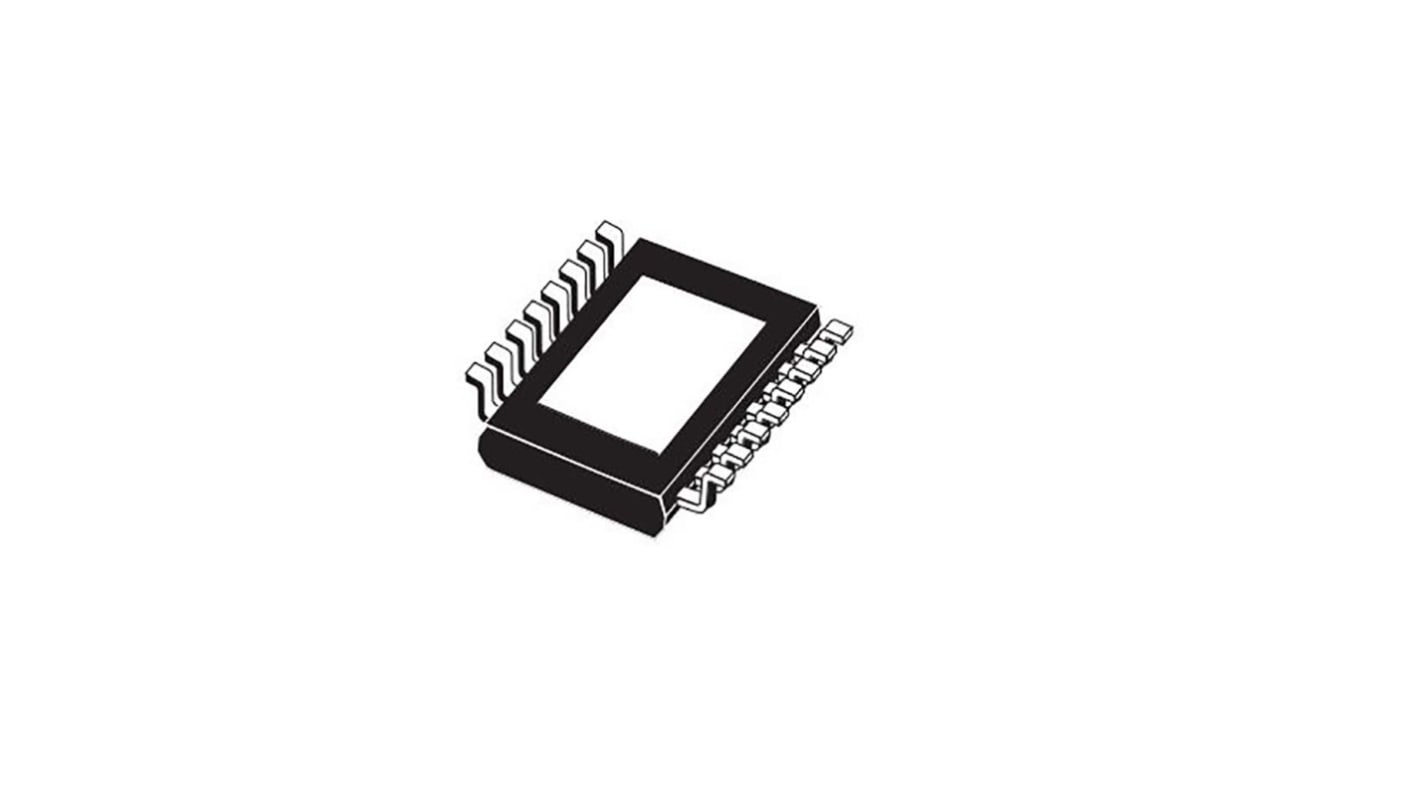

STMicroelectronics LED8102SXTTR LED Driver IC, -0.4 → 7 V 100mA 16-Pin HTSSOP
- RS Stock No.:
- 203-3413
- Mfr. Part No.:
- LED8102SXTTR
- Brand:
- STMicroelectronics
View all LED Driver ICs
Available to back order for despatch 24/04/2024
Price Each (On a Reel of 2500)
£0.61
(exc. VAT)
£0.73
(inc. VAT)
| Units | Per unit | Per Reel* |
| 2500 + | £0.61 | £1,525.00 |
| *price indicative | ||
- RS Stock No.:
- 203-3413
- Mfr. Part No.:
- LED8102SXTTR
- Brand:
- STMicroelectronics
Technical Reference
Legislation and Compliance
Product Details
The STMicroelectronics LED8102S is a monolithic, 8-channel LED driver with direct switch control. It is equipped with a thermal management that protects the device forcing it in shutdown (typically: power-off at 170 °C with 15 °C hysteresis to restart). LEDs brightness can be adjusted with a global PWM signal applied to the output enable pin (OE), on all active outputs. The outputs can be connected in parallel, or left unconnected if not used, as required by application. Thermal protection switches OFF only the output channels.
Programmable current through external resistor
Thermal shutdown
Available in high thermal efficiency TSSOP exposed pad package
Thermal shutdown
Available in high thermal efficiency TSSOP exposed pad package
Specifications
| Attribute | Value |
| Output Current | 100mA |
| Input Voltage | -0.4 → 7 V |
| AC or DC Input Voltage | dc |
| Application | White And RGB Lighting And Backlight |
| Package Type | HTSSOP |
| Number of Pins | 16 |
| Current Rating | 5 → 100mA |
